4 Connecting the modules → Q.bloxx A103: Connecting sensors and I/O
4.10 Q.bloxx A103: Connecting sensors and I/O
The Q.bloxx Module A103 has eight electrically isolated analog
inputs and two digital inputs and outputs. The pin assignment of
the two connector strips is identical and the connection terminals
have numbers for identifying the connections. You will find the
associated figures in each case at the same place in the circuit
diagrams, for example each of the figures quoted in the second
place belong to one possible connection method.
The designations 0 V and +V refer to the (external) supply volt-
age connections. Measurement ground (–) and the (module) sup-
ply voltage are electrically isolated in the module.

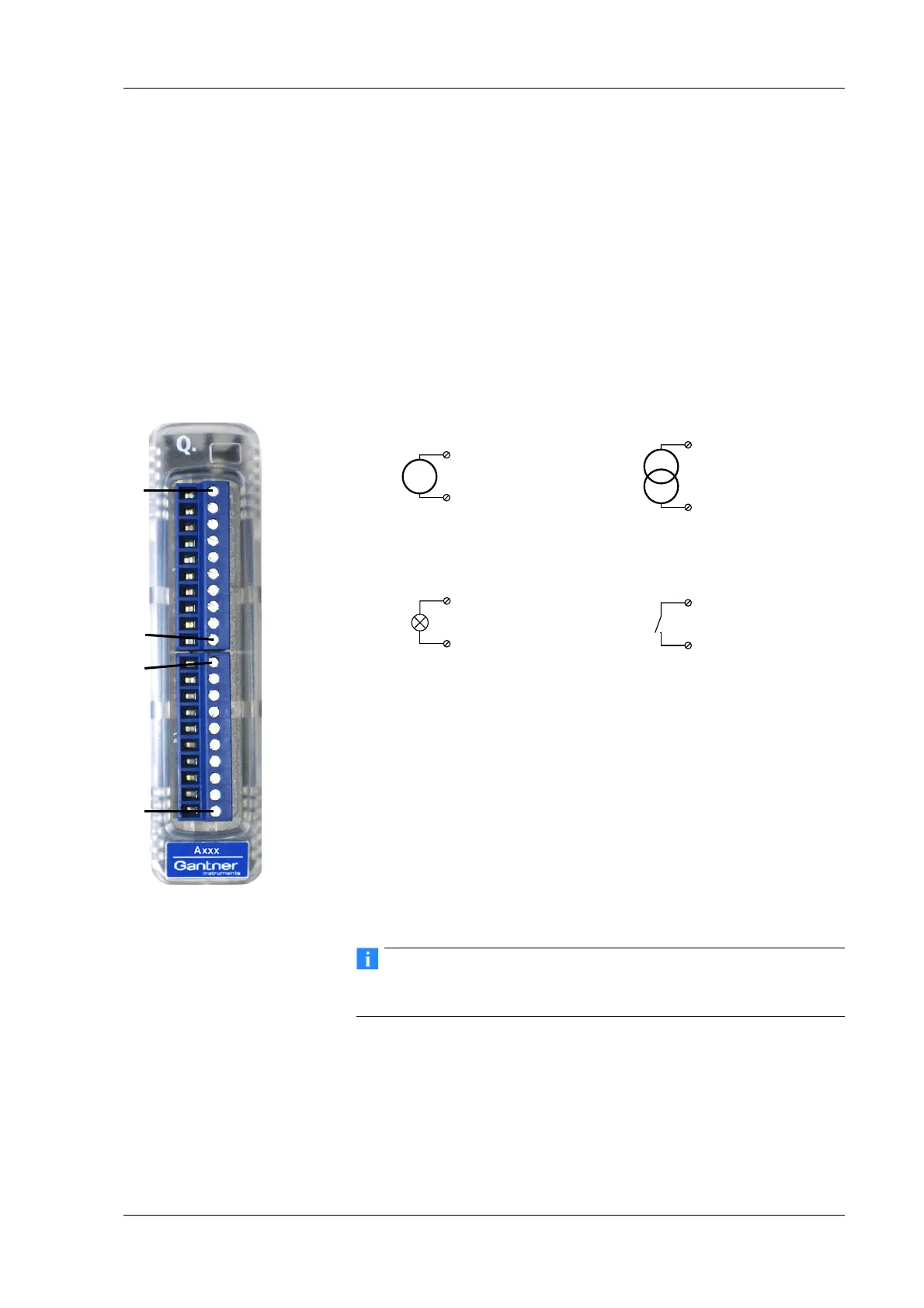

Fig. 4-36 Pin assignment for Q.bloxx Module A103.
Tip
Further information on transducers and sensors can also be
found in Chapter 6 ff. page 135.
4.10.1 Voltage
You can measure voltages of up to ±10 V.
U
3, 5, 7, 9 (+)
4, 6, 8, 10 (–)
I
3, 5, 7, 9 (+)
4, 6, 8, 10 (–)
D
in
D
out
1
+V
0V
2
1D
In
2D
Out
3A
In
1+
4A
In
1–
5A
In
2+
6A
In
2–
7A
In
3+
8A
In
3–
9A
In
4+
10 A
In
4–
1D
In
2D
Out
3A
In
1+
4A
In
1–
5A
In
2+
6A
In
2–
7A
In
3+
8A
In
3–
9A
In
4+
10 A
In
4–
10110 1Plug 1Plug 2
requires Q.bloxx
Terminal SR
