V
ers. No. 6.1
130
Released: 25/04/2017
5 Con
figuration
→
O
nline tools

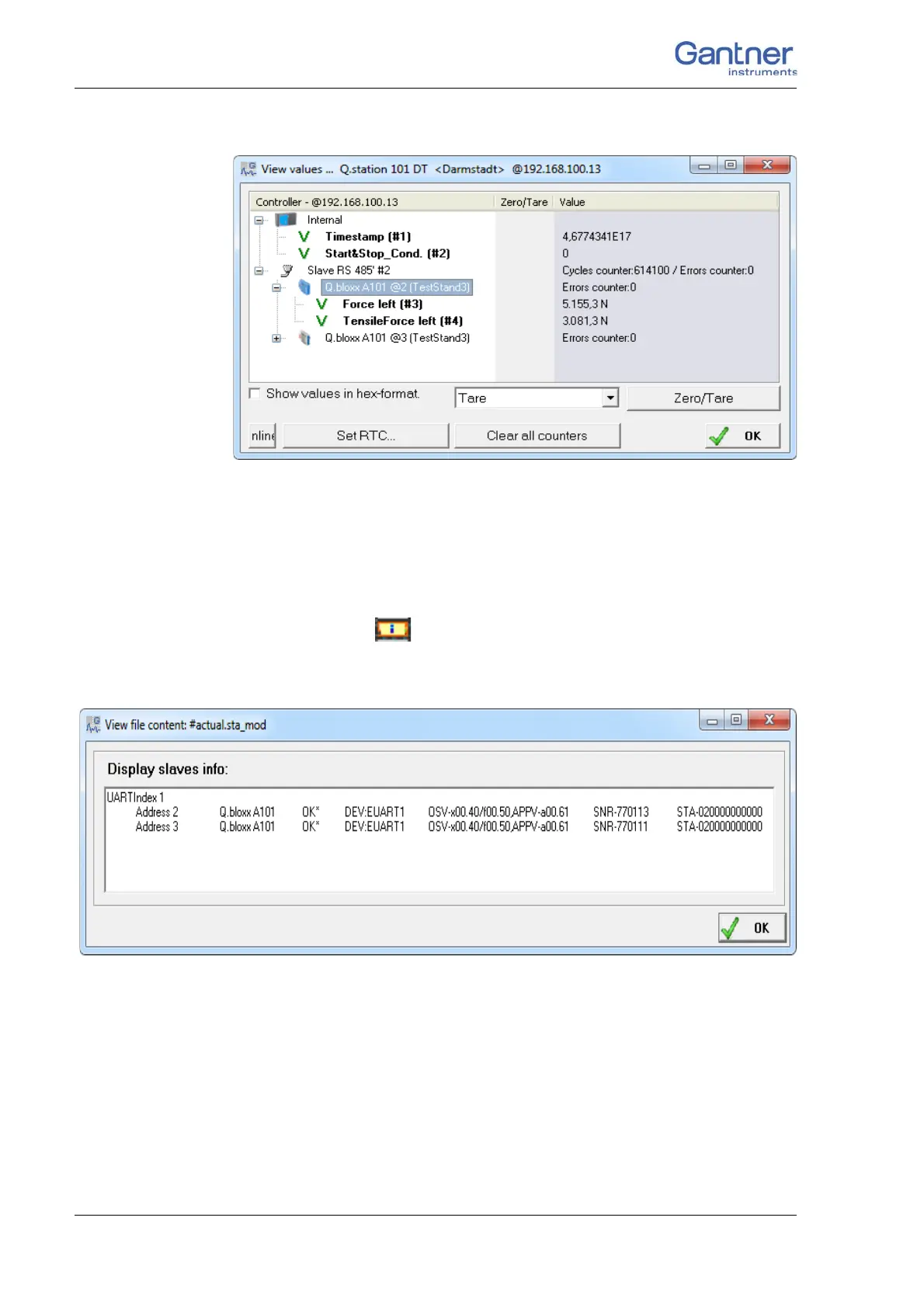

Fig. 5-17
Dialog for displaying the variable values.
In the dialog click on
Show online grap
hics
to display the val
-
ues in a graph over time.
5.9.3
Reading module information
Click on
or use
File > Read online module info from
controller
to be able
to display information such as the address
or serial number
of your system.
Fig. 5-18
Display of th
e module information.
129
