190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-77

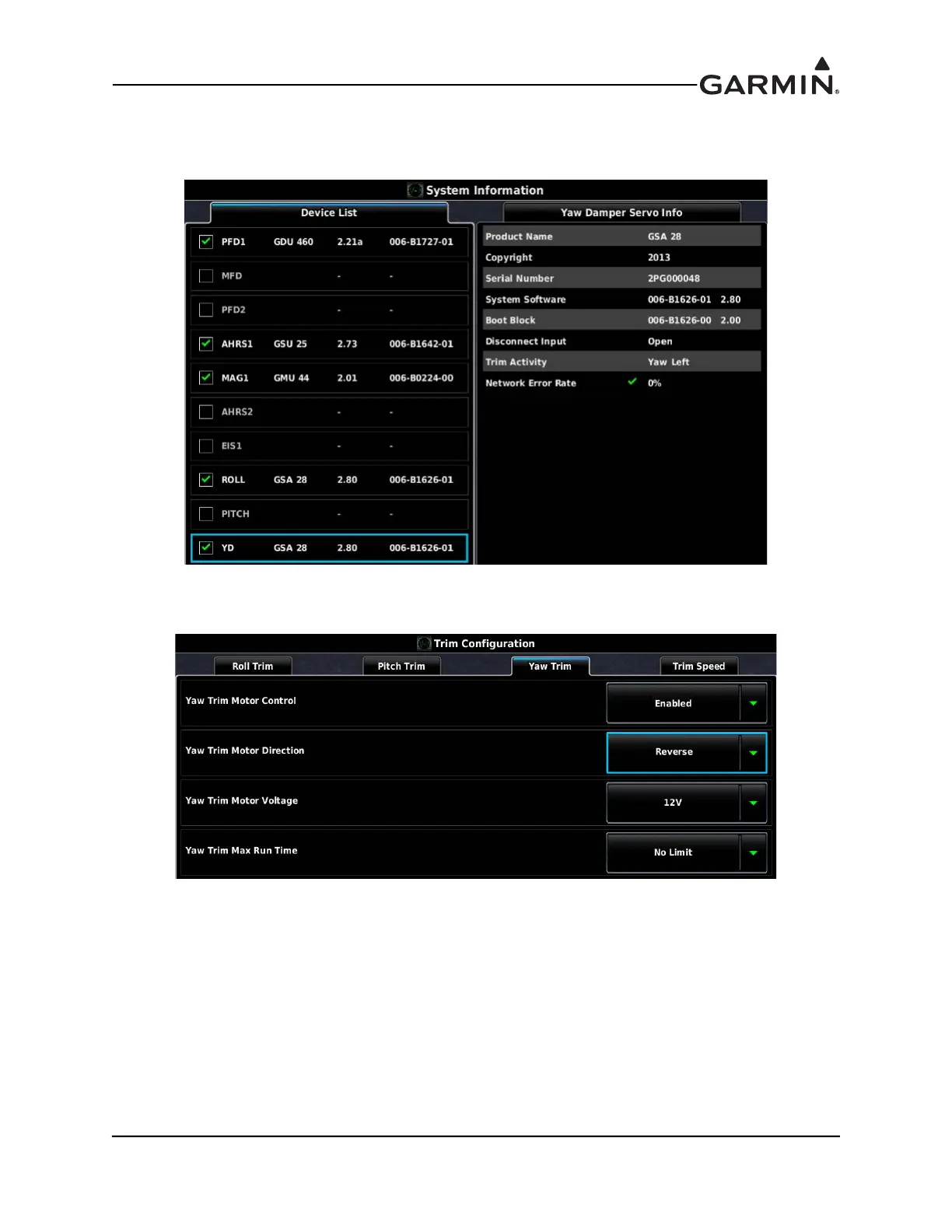

c) Use the rudder trim switch to input a yaw left Trim command. Verify the rudder trim switch
properly moves for yaw left trim. Verify the Trim Activity for the Yaw servo is properly
indicating “Yaw Left”.
d) If the rudder trim response is reversed, go to the Trim Configuration page and change the
Yaw Trim Motor Direction to Reverse, then repeat step all of step 8.
