190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 30-78

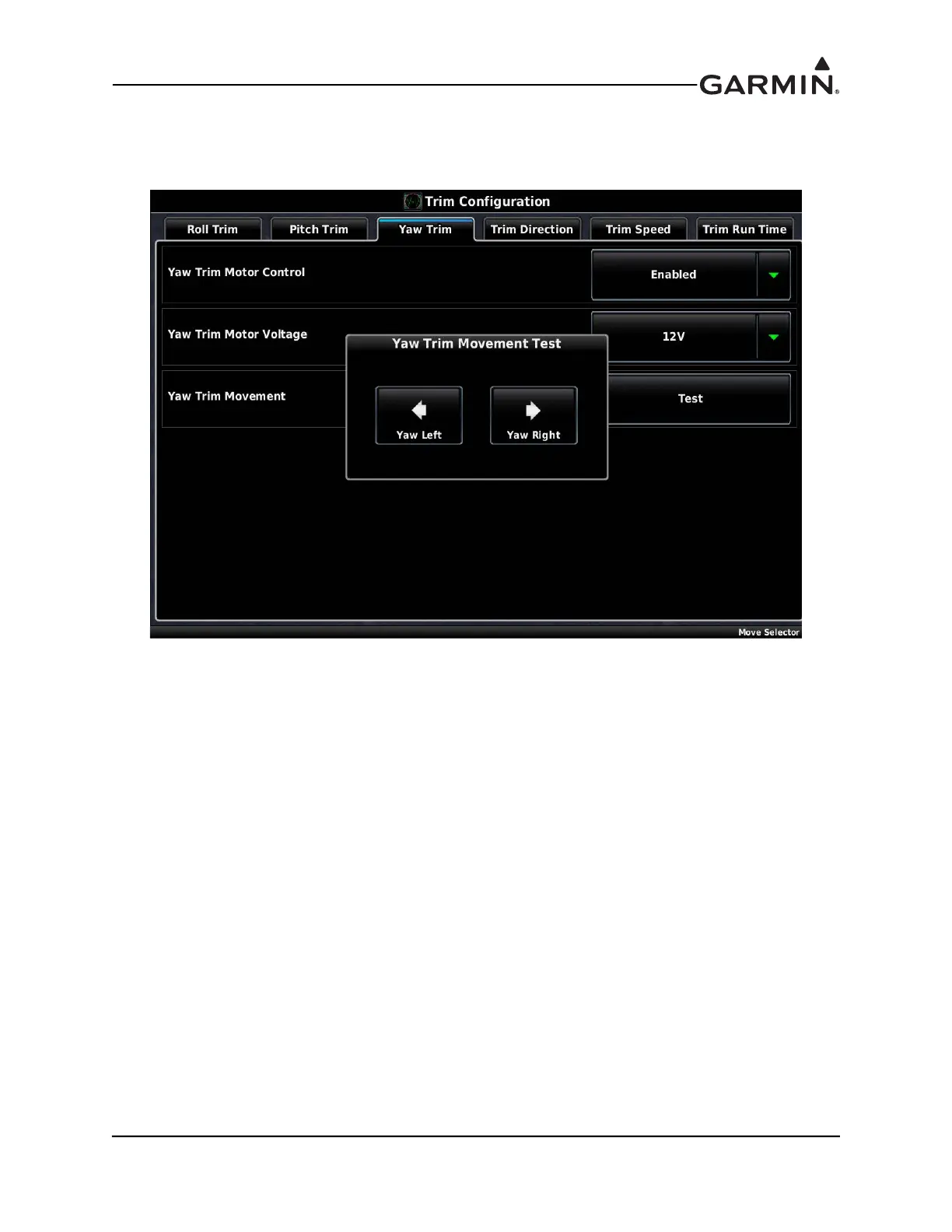

e) On the Trim Configuration page, verify the electric trim motor responds in the proper

directions by pressing the Yaw Left and Yaw Right buttons on the Yaw Trim Movement Test

popup window.
