190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page B-11

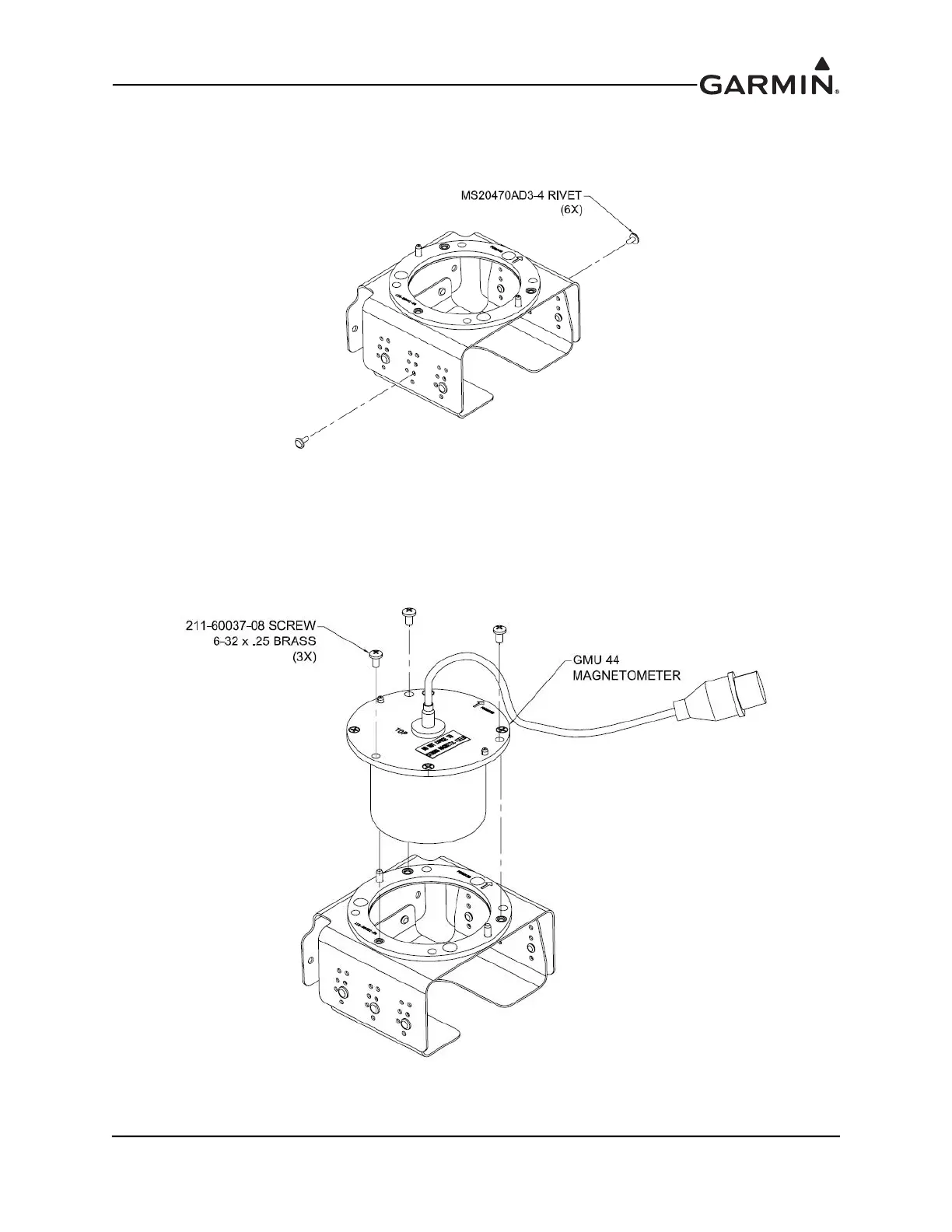

7. With the GMU 22 mount setup for installation in the right wing, shift the bracket to the minus 2
degree setting and rivet it in place using six 1/8" button head rivets as illustrated in Figure B-12.
Figure B-12 Rivet shifted Magnetometer Mount
8. Attach the GMU 22 to the GMU 22 Mounting Bracket as illustrated in Figure B-13 using brass
screws.
Figure B-13 Secure GMU 22 to the Mounting Bracket Assembly
