190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page H-52
8. Engage the autopilot in HDG/PIT mode and command a nose up, left bank.
a) With no GMC Mode Controller:
i. Press the HDG/ROLL softkey on the PFD
ii. Press the AP HDG softkey on the PFD
iii. Push the joystick to center the HDG bug
iv. Turn the joystick counter-clockwise to command a left turn
v. Bump the joystick up to command a pitch up
b) With a GMC Mode Controller:
i. Press the AP button on the GMC Mode Controller
ii. Press the HDG button on the GMC Mode Controller
iii. Push the HDG softkey on the PFD
iv. Push the joystick on the PFD to center the HDG bug
v. Turn the joystick on the PFD counter-clockwise to command a left turn
vi. Turn the wheel on the GMC Mode Controller up to command a pitch up
9. Verify the stick properly moves toward the tail and toward the left wing smoothly with no control
system binding.

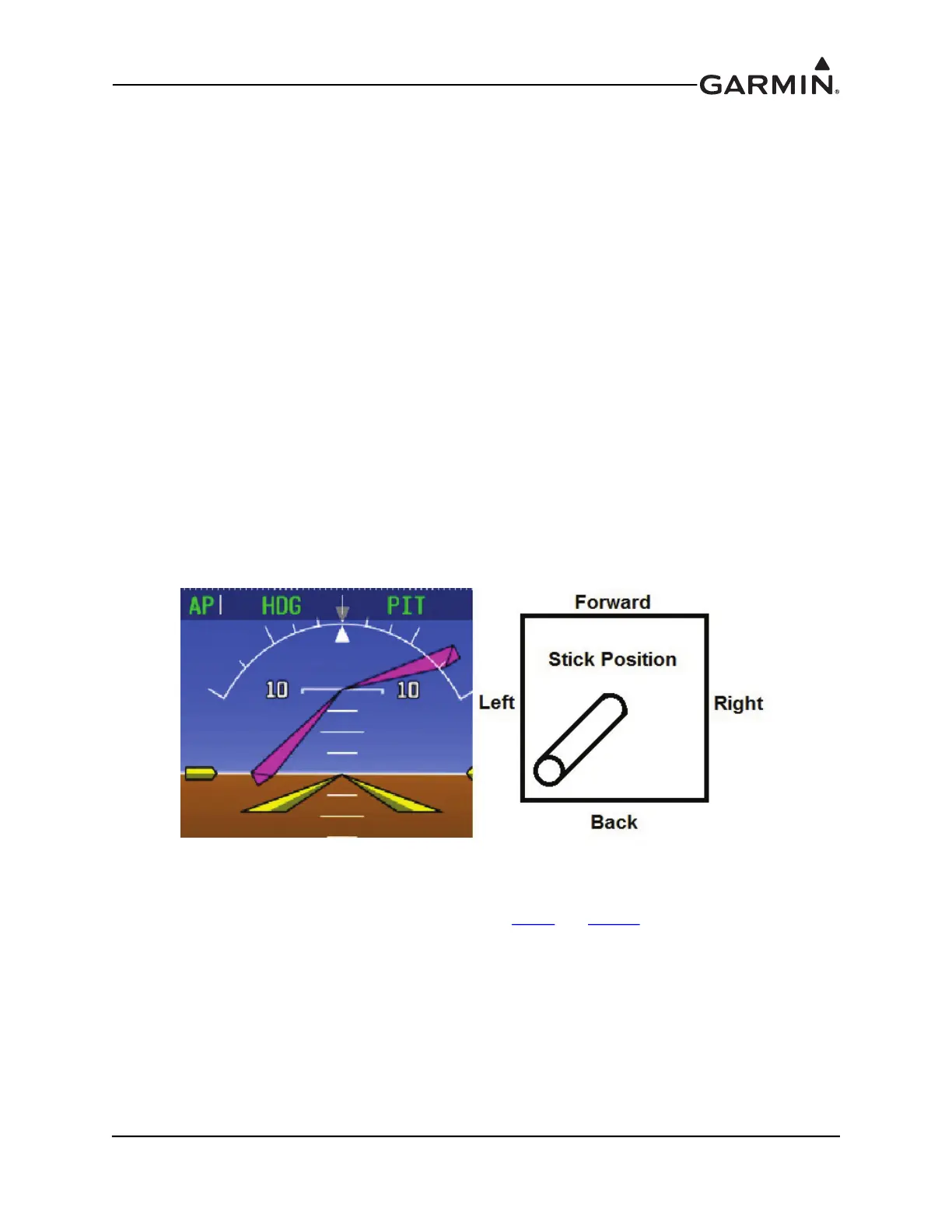

Figure H-14 Stick Position Nose Up, Bank Left
10. If the stick position does not move in the correct direction, correct the roll and pitch servo
directions documented in Servo Wiring Checkout Step 9
and Step 10.
