Revision B 120 Series Maternal/Fetal Monitor 12-21
2015590-001
Upgrading a 120 Series Monitor: Nellcor MSpO2 and NBP Option Upgrade Kit

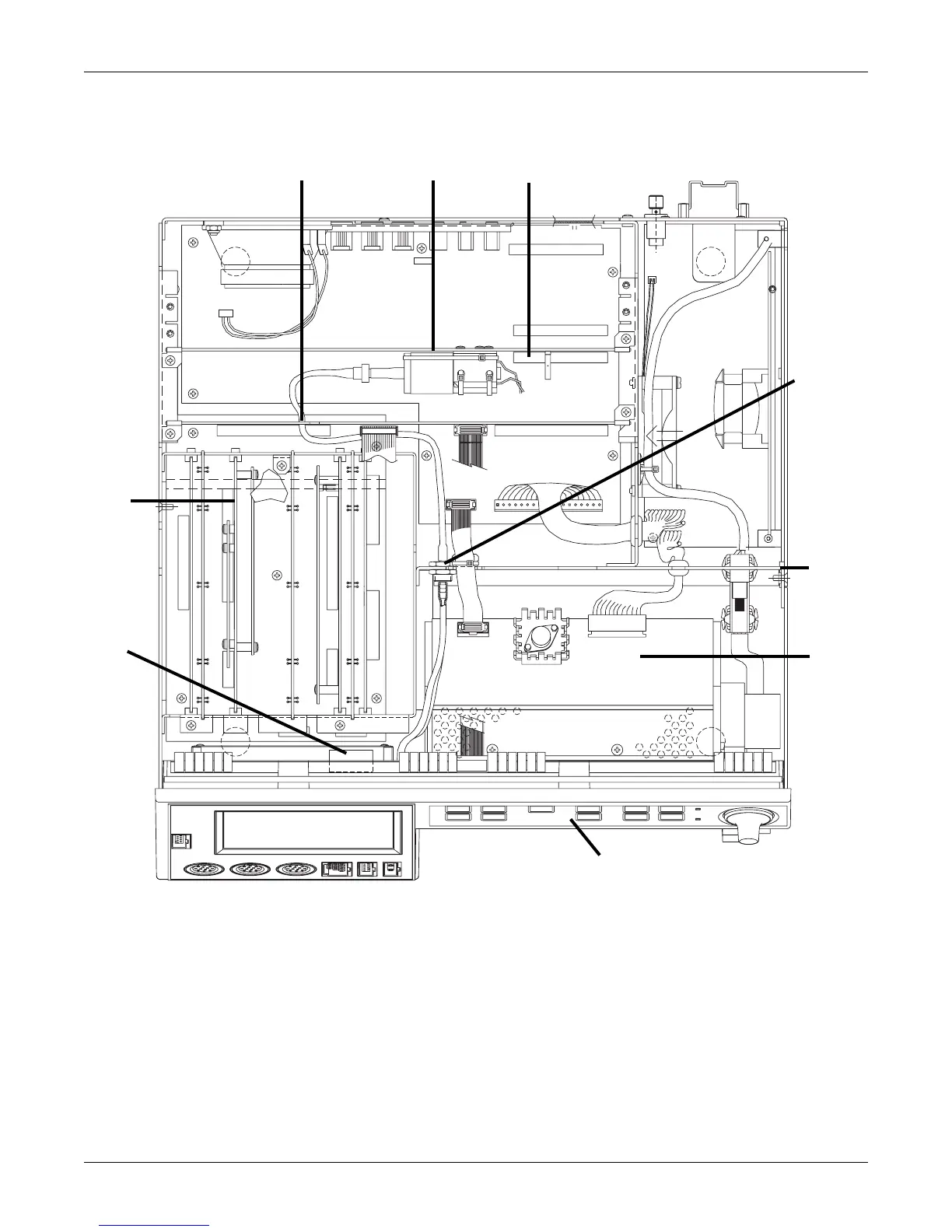

Figure 12-14. Top View
RED
BP Board
Notch in
DSP Board
BP Board Connector on
Main Motherboard
Oximeter
Carrier
Board
Clip for
MSpO
2
ferrite
bead
Front Panel
Overlay Label
Recorde
r
Cavity
Divider
Recorde
r
Board
Attach BP
tubing
here
