12-22 120 Series Maternal/Fetal Monitor Revision B
2015590-001
Upgrading a 120 Series Monitor: Nellcor MSpO2 and NBP Option Upgrade Kit

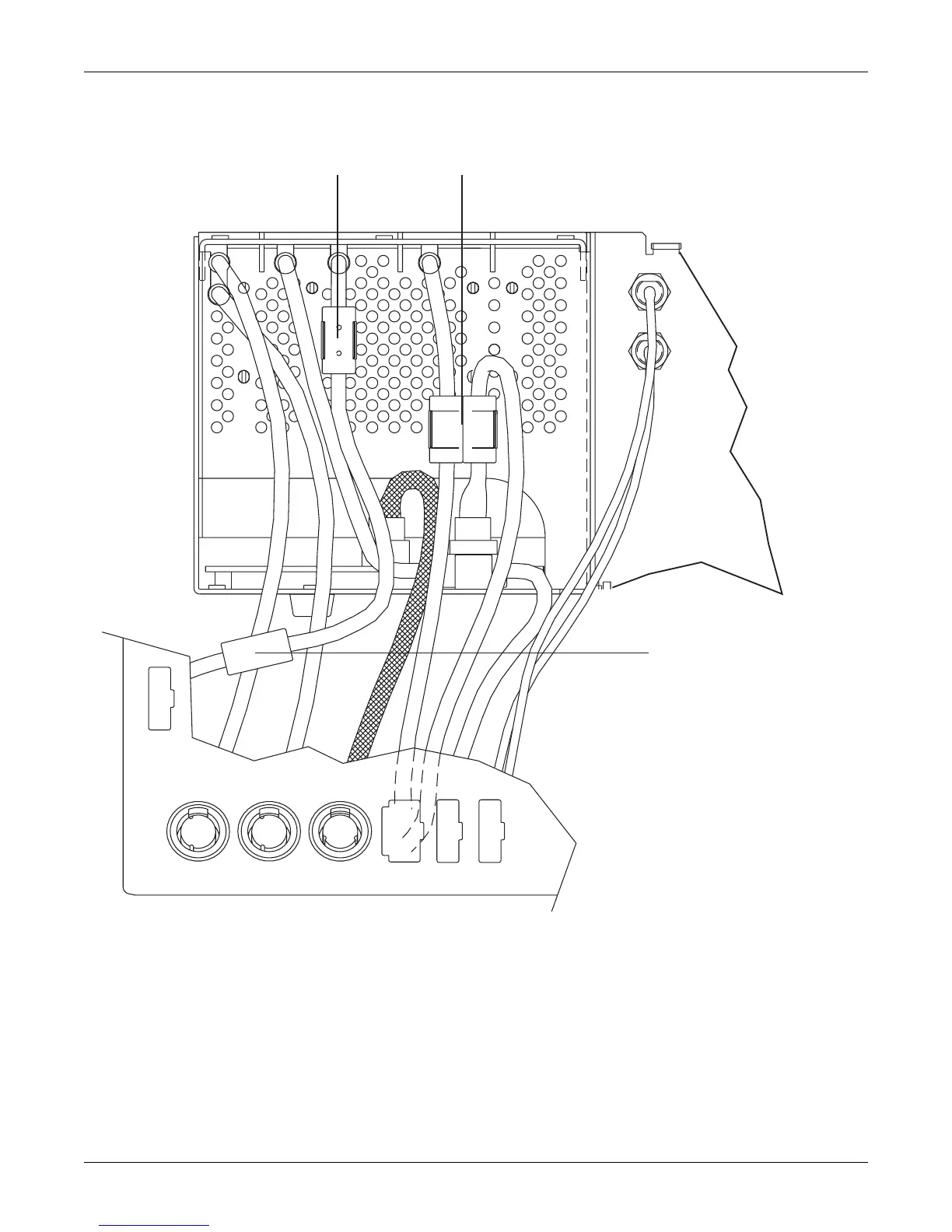

Figure 12-15. Partial Inside Front Panel with Bezel Removed
FSpO2
MATERNAL
SpO2
FECG/MECG
UA
US2
US
J6
J7
BP
Clip for FSpO2 cable ferrite
bead, if installed
Clip for FECG/MECG
ferrite beads
Ferrite bead is mounted to
clip attached to back side of
display shield on front bezel,
if FSpO
2 installed
To Next Page
