GE Corometrics 126

12-38 120 Series Maternal/Fetal Monitor Revision B
2015590-001
Upgrading a 120 Series Monitor: Software Version 3.5

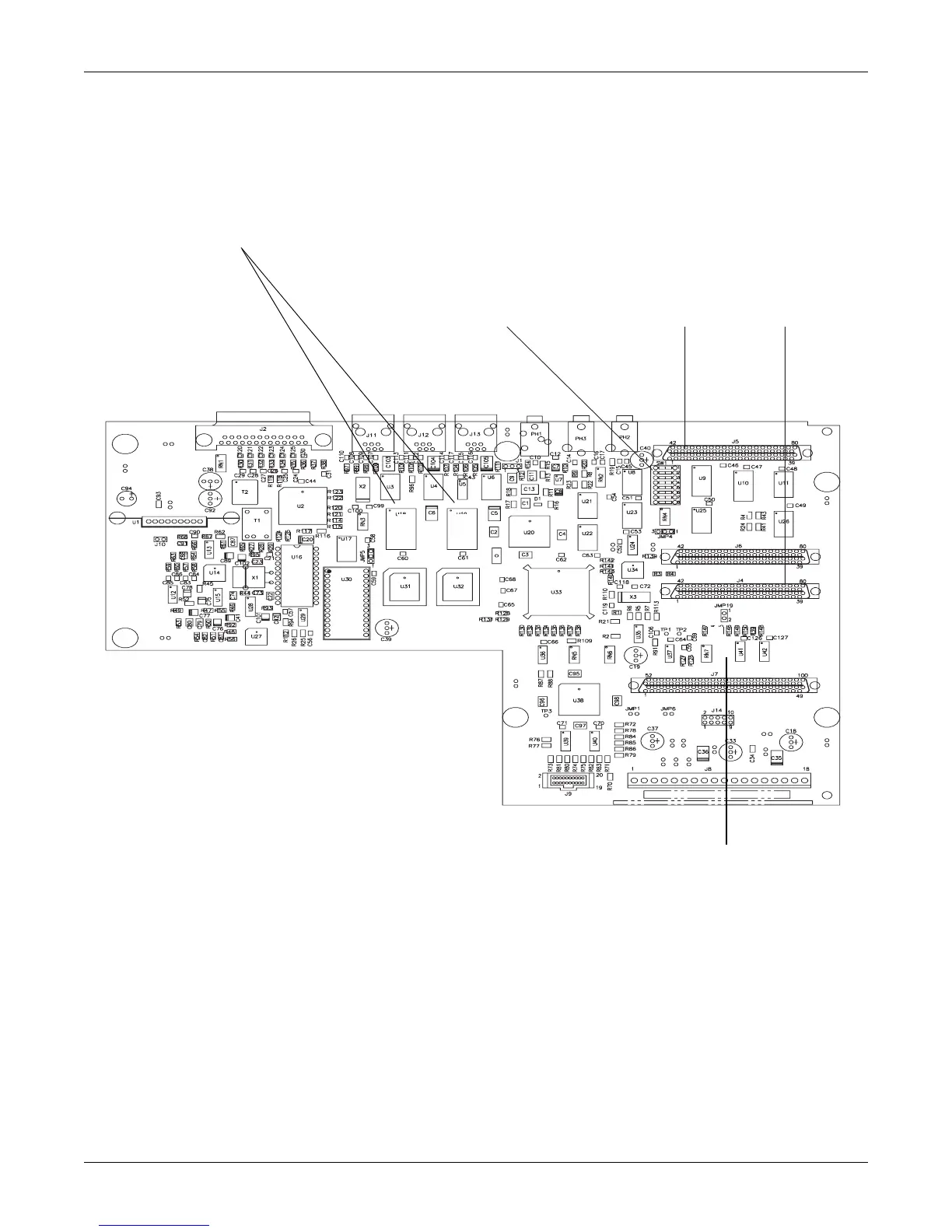

Figure 12-31. Main Motherboard
Switch Pack SW1
Communications
Board Connector
BP Board
Connector
UU
31 32
J4
J7
Flash ROMs
DSP Board
Connector
