GE Corometrics 126 User Manual

Revision B 120 Series Maternal/Fetal Monitor 3-15
2015590-001
Controls, Indicators, and Connectors: Front Panel Displays

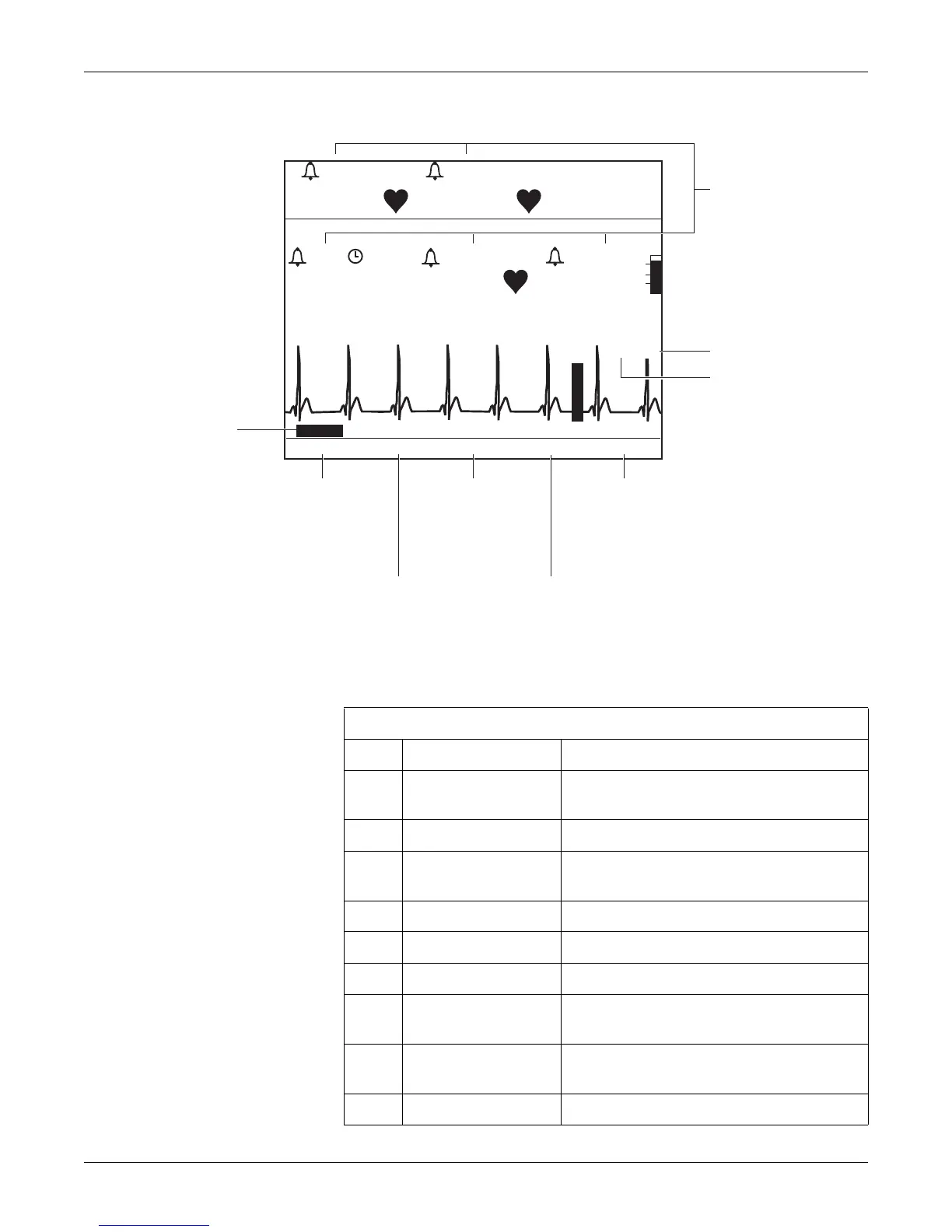

Figure 3-11. Display Summary
165
172
30
130/ 85
89
97%
MECG
MSPO2
NBP
MAP (107)
03:15
09:22:06
US2
US
TOCO
02:15
PRINT FREEZE ALARMS SETUP VSHX
25 mm/s
II AUTO
HBC
MECG 09:21:41 ECG FROZEN
A
B
C
I
D
E
F
G
H
Table 3-11. Display Summary
Name Description
A Mode Title Softkeys
Selects US, US2, FECG, NBP, MHR/P, or SpO
2
Setup screens.
B ECG Scale Softkey Selects 0.25X, 0.5X, 1X, 2X, 4X, or AUTO.
C
MECG Lead Select
Softkey
Selects Lead I, II, or III.
D VSHX Softkey Displays maternal Vital Signs History screen.
E SETUP Softkey Displays General Setup screen
F ALARMS Softkey Displays Master Alarm Setup screen.
G FREEZE Softkey
Freezes waveform for analysis; unfreezes
waveform to return to real-time display.
H PRINT Softkey
Prints six-second snapshot of frozen waveform,
real-time waveform, or maternal vital signs history.
I Waveform Softkey Selects FECG, MECG, FSpO
2, MSpO2, or OFF.
