Chapter 6 Page no. 490
JC-PHY-A-030.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection

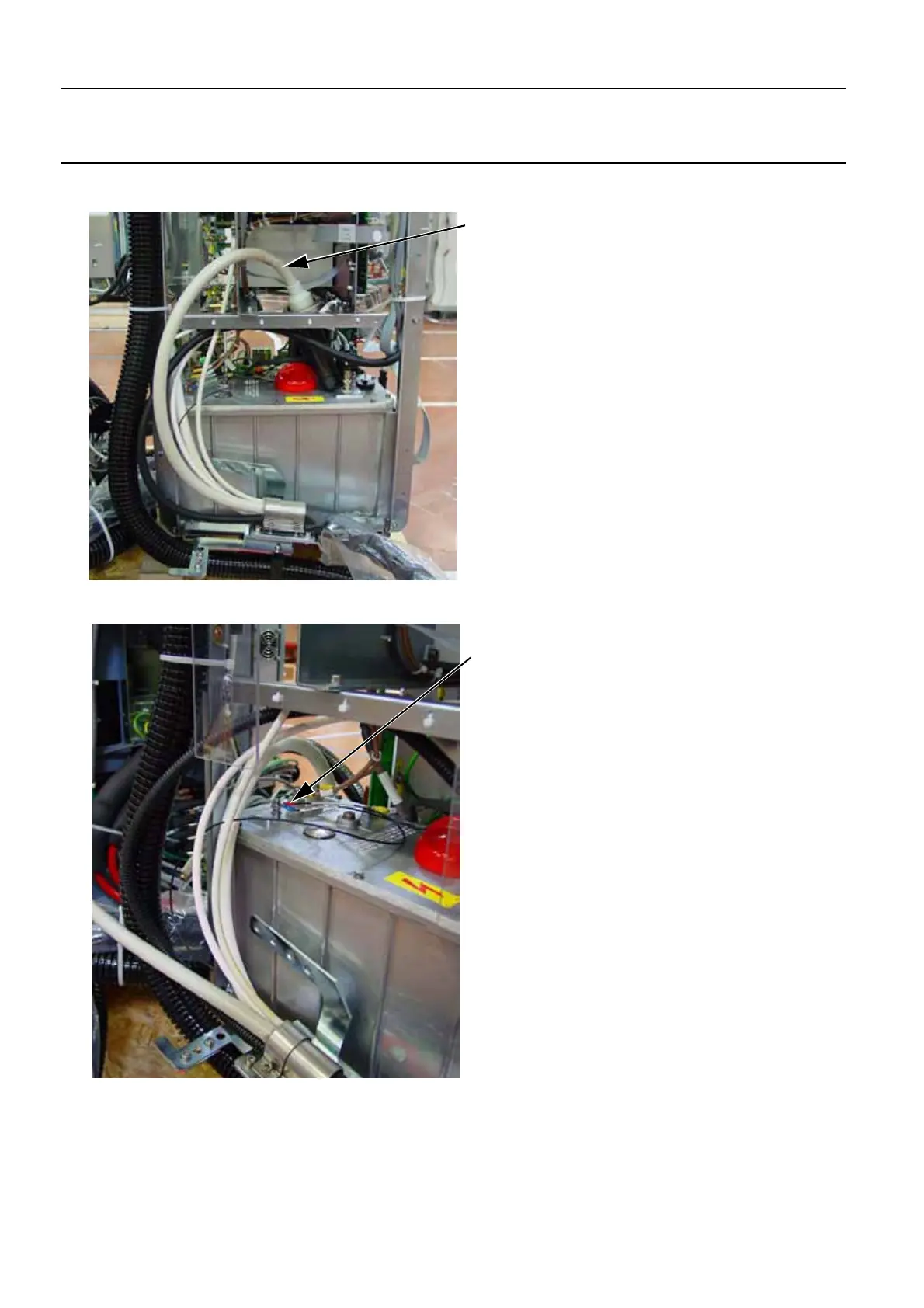

16. If necessary, cut the cable ties that secure the HV Cable (16) to the framework. At this stage, it is not
already connected in the HV Tank.
17. On the HT block, disconnect the X-ray Tube Housing Return Cable (8 mm open-ended wrench). This
cable is the black cable with the red plastic ending (17), labeled HT+ GND / 2381701.
18. Group together the cables that you disconnected during steps 7 to 17. You will fully remove them
from the Generator by releasing the Generator cable bracket in the following steps. You will connect
these back to the lower parts of the Generator later on once the equipment is in the hospital room.
16
17
To Next Page
