Chapter 4 - Functional Checks 4-47
Section 4-8
Mechanical Function Checks
4-8-1 Control Console Positioning
The control console can be rotated, translated and adjusted in height (electronically only).
NOTE: For further details refer to Section 5-11-3 on page 5-63 and/or Section 6-5 on page 6-7.
4-8-2 Brakes and Direction (Swivel) Locks
Check the brakes and swivel locks function as described below.

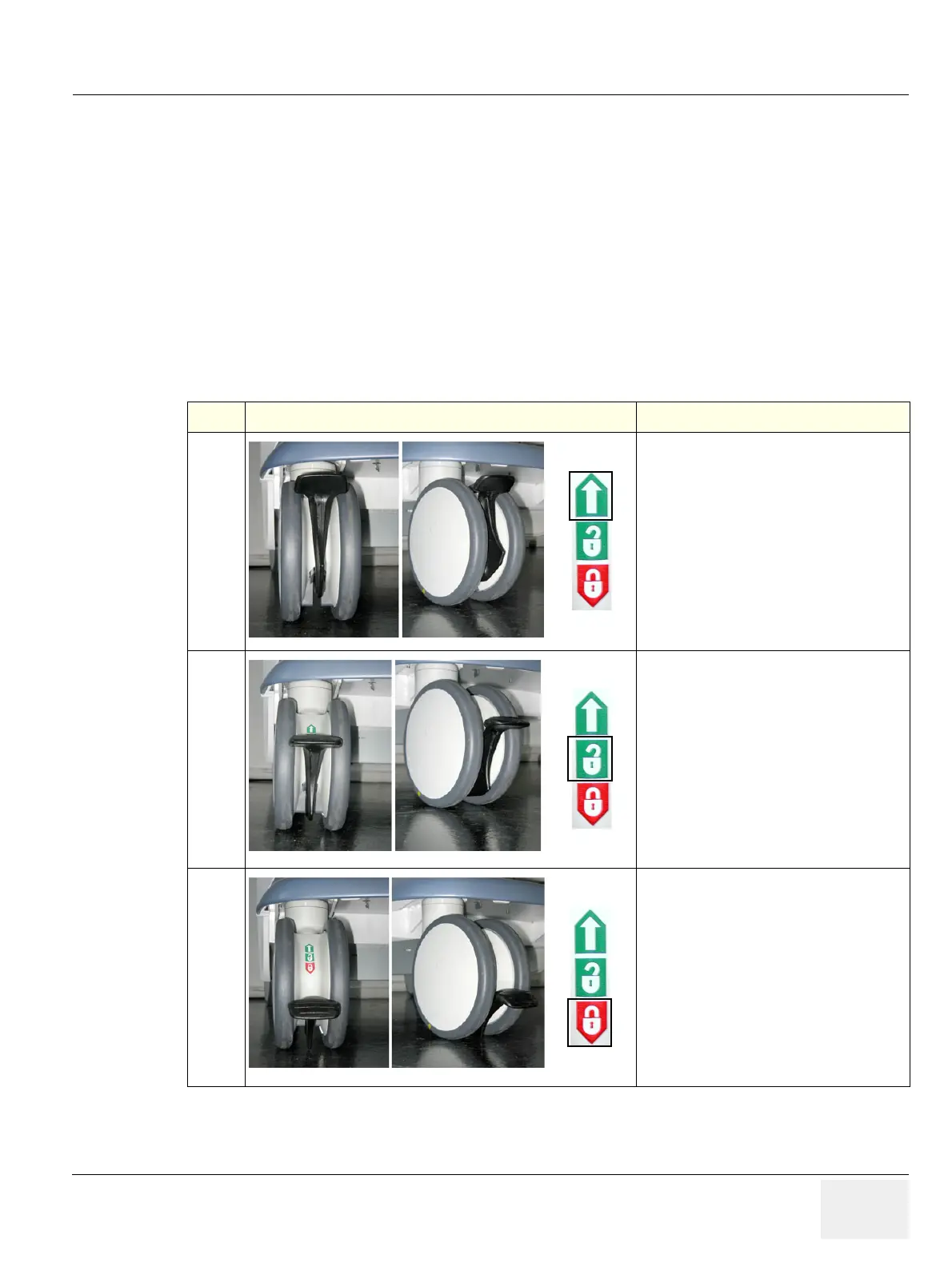

Table 4-15 Brakes and Direction (Swivel) Lock
Step Task Expected Result(s)
1
Swivel lock engaged.
2
Brakes and swivel lock released.
3
Brakes and swivel lock engaged (=full lock)
