GV-AS100 / 1010 Controller
7
1
1.2 Installation
Open the GV-AS100 / 1010 to access the terminal block.
GV-AS100
Pin Function Pin Function
1 12V Power 11 Sensor IN1
2 GND 12 Button IN2
3
RS-485 A+ for ASBox / ASNet
or PC connection
13 Fire IN3
4
RS-485 A-for ASBox / ASNet or
PC connection
14 IN COM
5
RS-485 B+ for GV-Reader
connection
15 Alarm COM
6
RS-485 B- for GV-Reader
connection
16 Alarm NO
7 Wiegand Data 0 17 Door COM
8 Wiegand Data 1 18 Door NC
9 12V Power Supply 19 Door NO
19 Door NO
18 Door NC
17 Door COM
16 Alarm NO
15 Alarm COM
14 IN COM
13 IN3 Fire
12 IN2 Button
11 IN1 Sensor
10 GND
9 PWR Out 12V
8 Data1
7 Data0
6 RS485 B-
5 RS485 B+
4 RS485 A-
3 RS485 A+
2 GND
1 PWR In 12V
10 GND

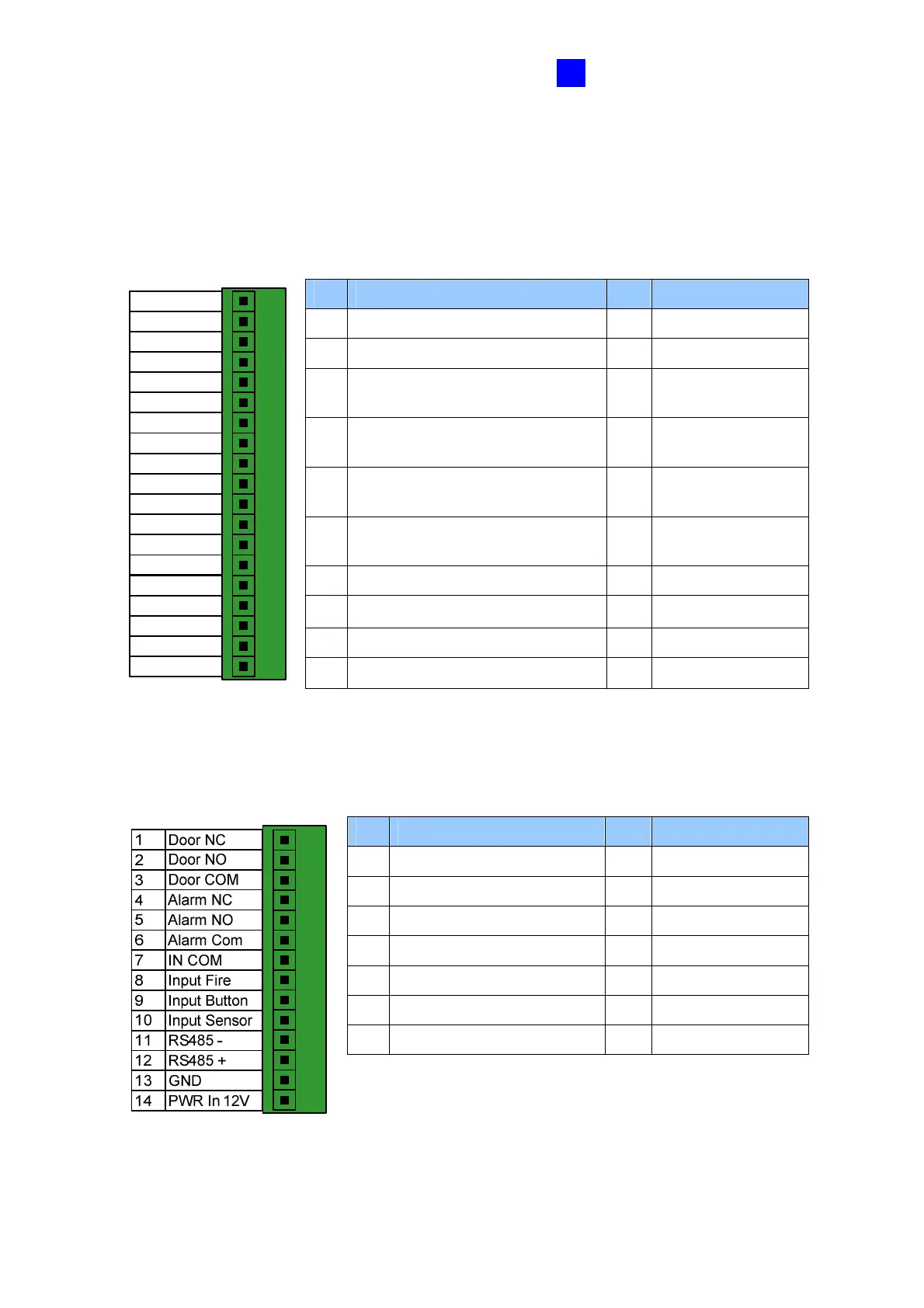

Figure 1-5
GV-AS1010
Pin Function Pin Function
1 Door NC 8 Input Fire
2 Door NO 9 Input Button
3 Door COM 10 Input Sensor
4 Alarm NC 11 RS485 -
5 Alarm NO 12 RS485 +
6 Alarm Com 13 GND
7 IN COM 14 PWR In 12V
Figure 1-6
