GV-AS110 / 1110 Controller
39
2
2.2 Installation

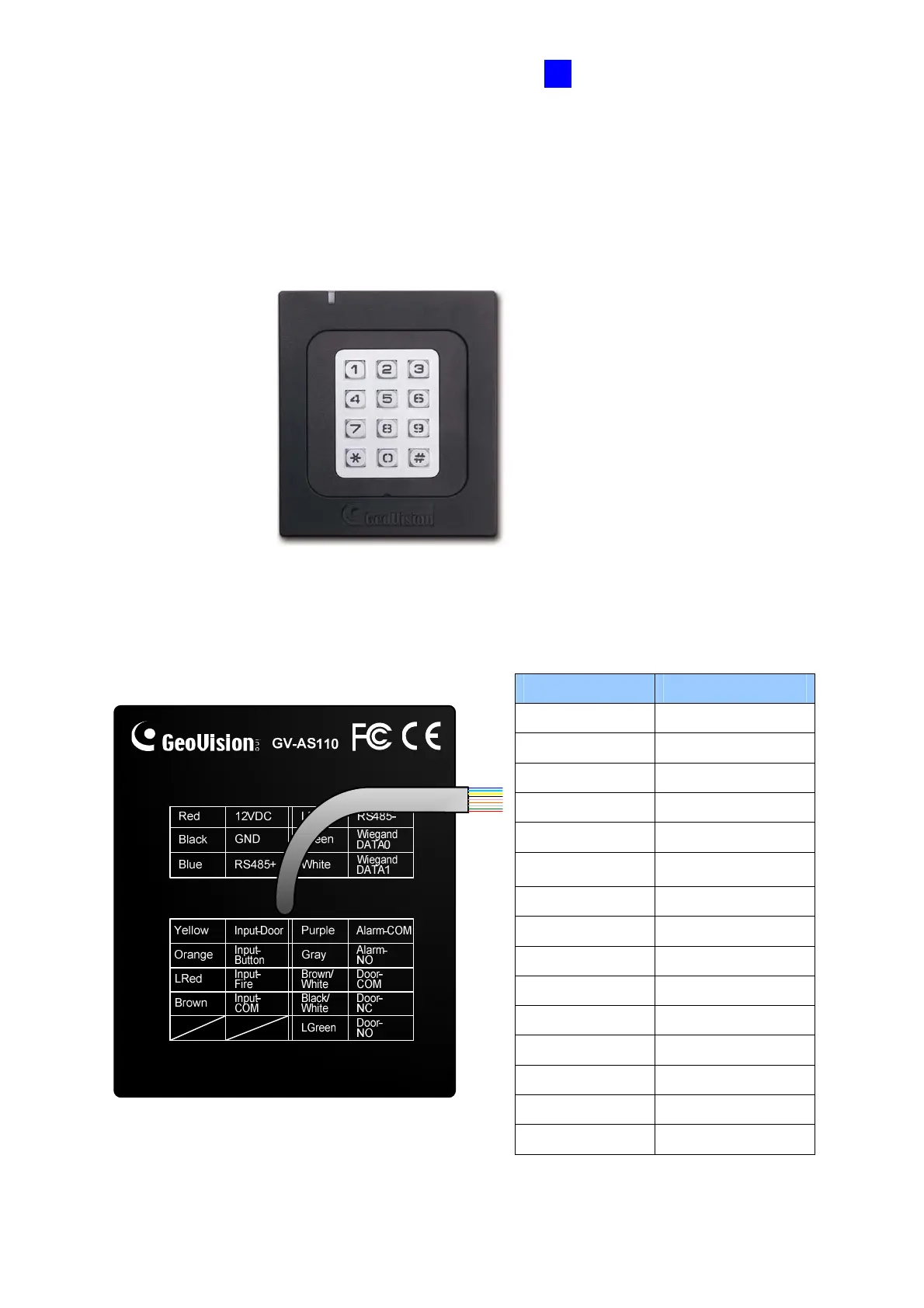

The wire assignment of the GV-AS110 cable data are illustrated below.
Front View
Figure 2-4
Rear View
Wire color Definition
Red 12V DC
Black GND
Green Wiegand Data 0
White Wiegand Date 1
Blue RS485+
Light Blue RS485-
Yellow Door Sensor IN1
Orange Button IN2
LRed Fire Sensor IN3
Brown IN COM (GND)
Purple Alarm COM
Gray Alarm NO
Brown White Door COM
Black White Door NC
GV-AS110
Light Green Door NO
Figure 2-5
