GV-AS210 / 2110 / 2120 Controller
79
4
4.2 Installation
4.2.1 Connecting Card Readers
GV-AS210 / 2110 / 2120 can physically connect to card readers through its RS-485 and
Wiegand interfaces.
Wiegand: Compatible with any Wiegand card readers of 26 to 64 bits.
RS-485: Only compatible with all GV-Readers and GV-GF Fingerprint Readers.
To see how to connect to network readers through TCP/IP, refer to 8.3 Extended Device.

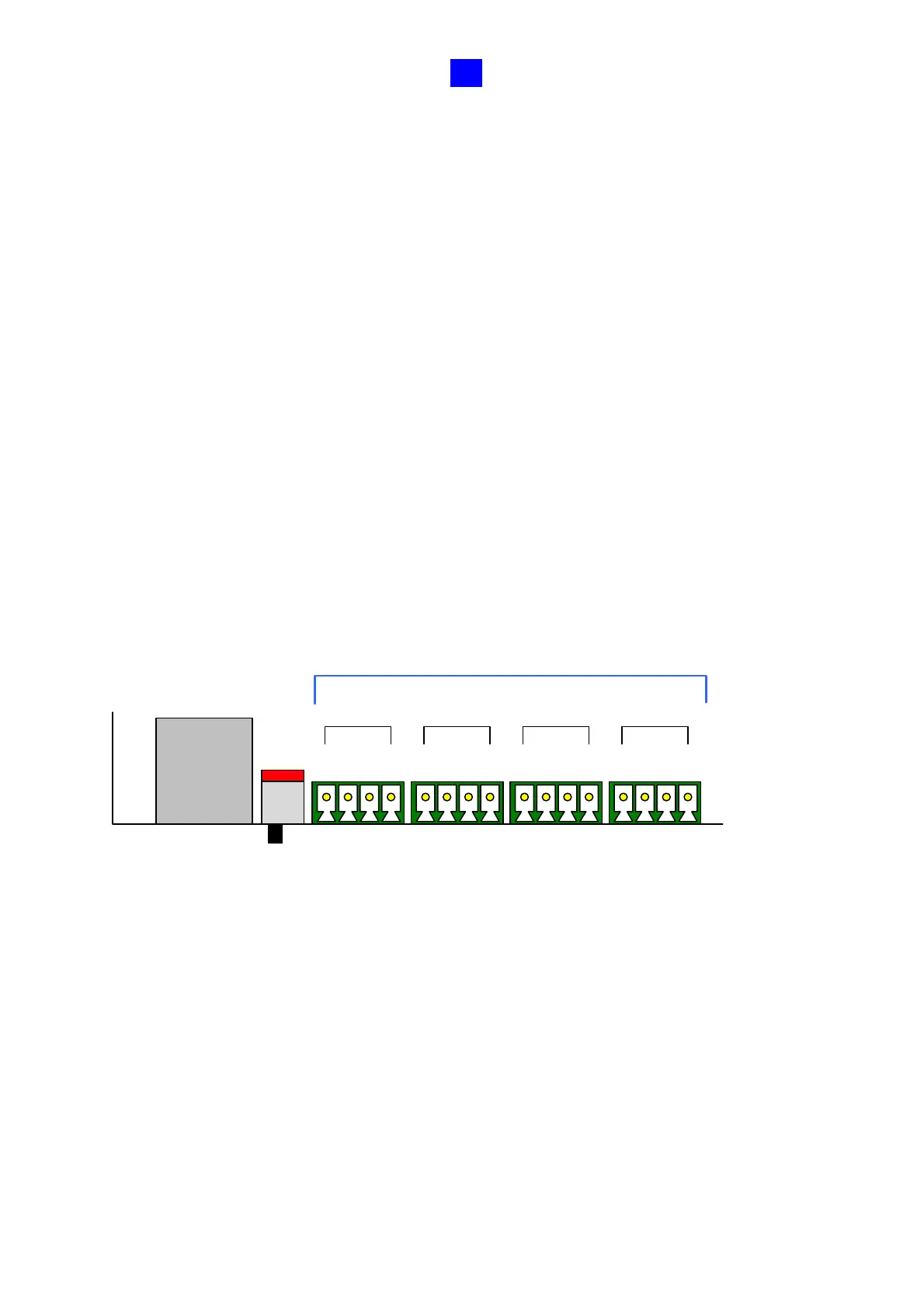

4.2.1.A Wiegand Readers
GV-AS210 / 2110 / 2120 provides 4 Wiegand inputs (Wiegand A to Wiegand D). Connect up
to 4 Wiegand readers ranging from 26 to 64 bits to the Wiegand interfaces. Please consult
the documentation of your Wiegand reader for wiring.
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
Wiegand A
Wiegand B Wiegand C Wiegand D
Connect to Wiegand compatible readers
Figure 4-3
