198

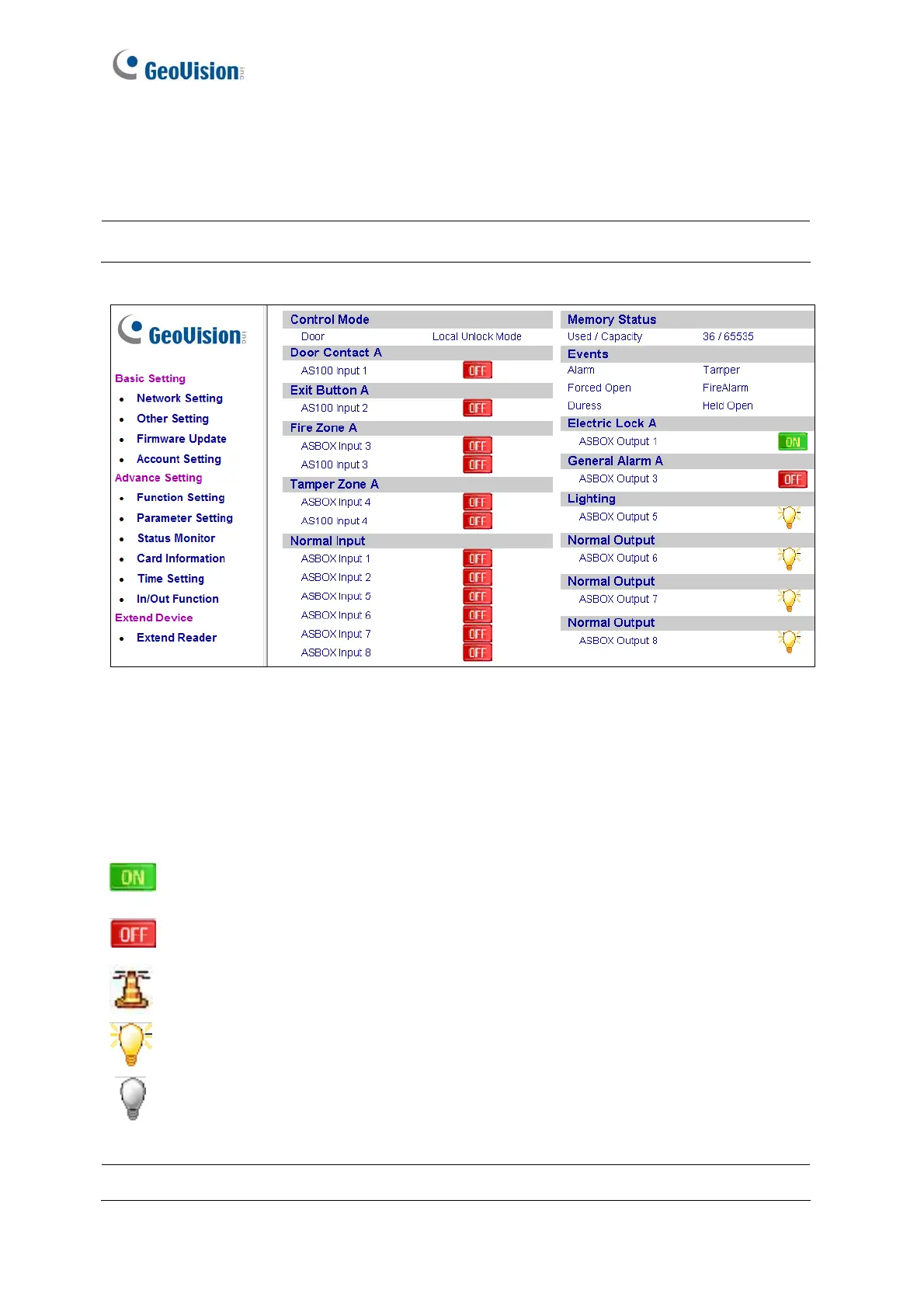

9.3.2.C Status Monitor
In the left menu, click Status Monitor to see the status of each input, output and alarm
Figure 9-20
Control Mode will change depending on the chosen Door/Gate’s Authentication Mode in
the Function Setting page (Figure 9-15). The listed number of outputs will change
depending on the chosen Output Type in the In/Out Function page (Figure 9-23).
= Indicates the current input/output device is triggered.
= Indicates the current input/output source is not triggered.
= Indicates the current event is triggered.
= Indicates the current light is on.
= Indicates the current light is off.
Note: The Status Monitor page is only available when connecting through a GV-ASBox.
Note: Outputs must be turned on in the In/Out Function page to be monitored here.
