8.2.7.B Output Condition Settings
This section explains the output functions available when Output Type is set to Normal,
Toggle or Pulse.

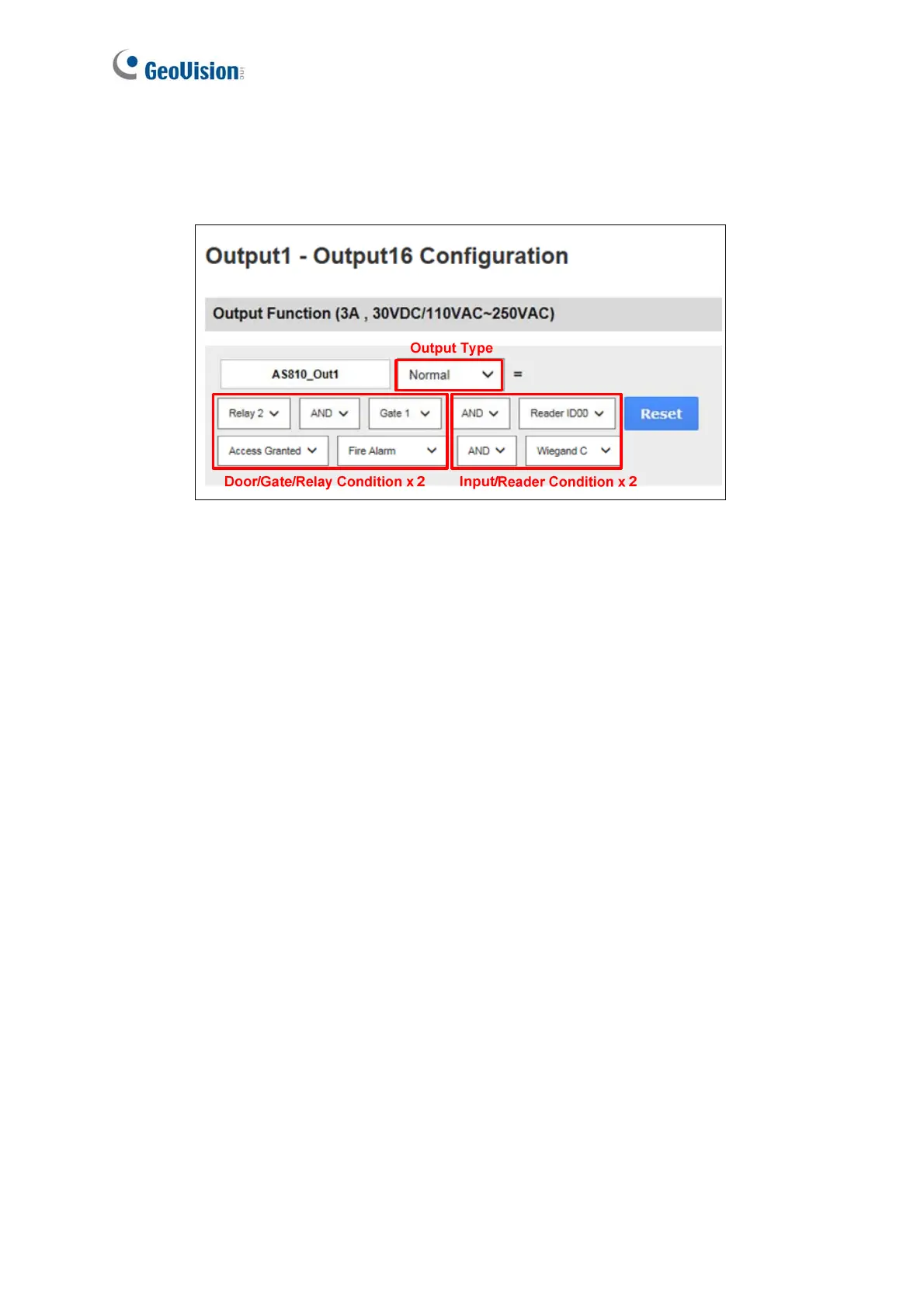

Figure 8-22
There can be a maximum of 4 conditions that can be set up to trigger an output. 2 conditions
are Door/Gate/Relay conditions and 2 conditions are Input/Reader conditions. Each
condition is related to each other through AND/OR. AND means that all conditions with AND
must be triggered before the output is triggered. OR means that only 1 of the condition with
OR is needed to be triggered before the output is triggered. It is also valid to have certain
conditions as AND and certain conditions as OR.
For Pulse output type, the output is triggered for the amount of time set in the Sec field
(seconds).
