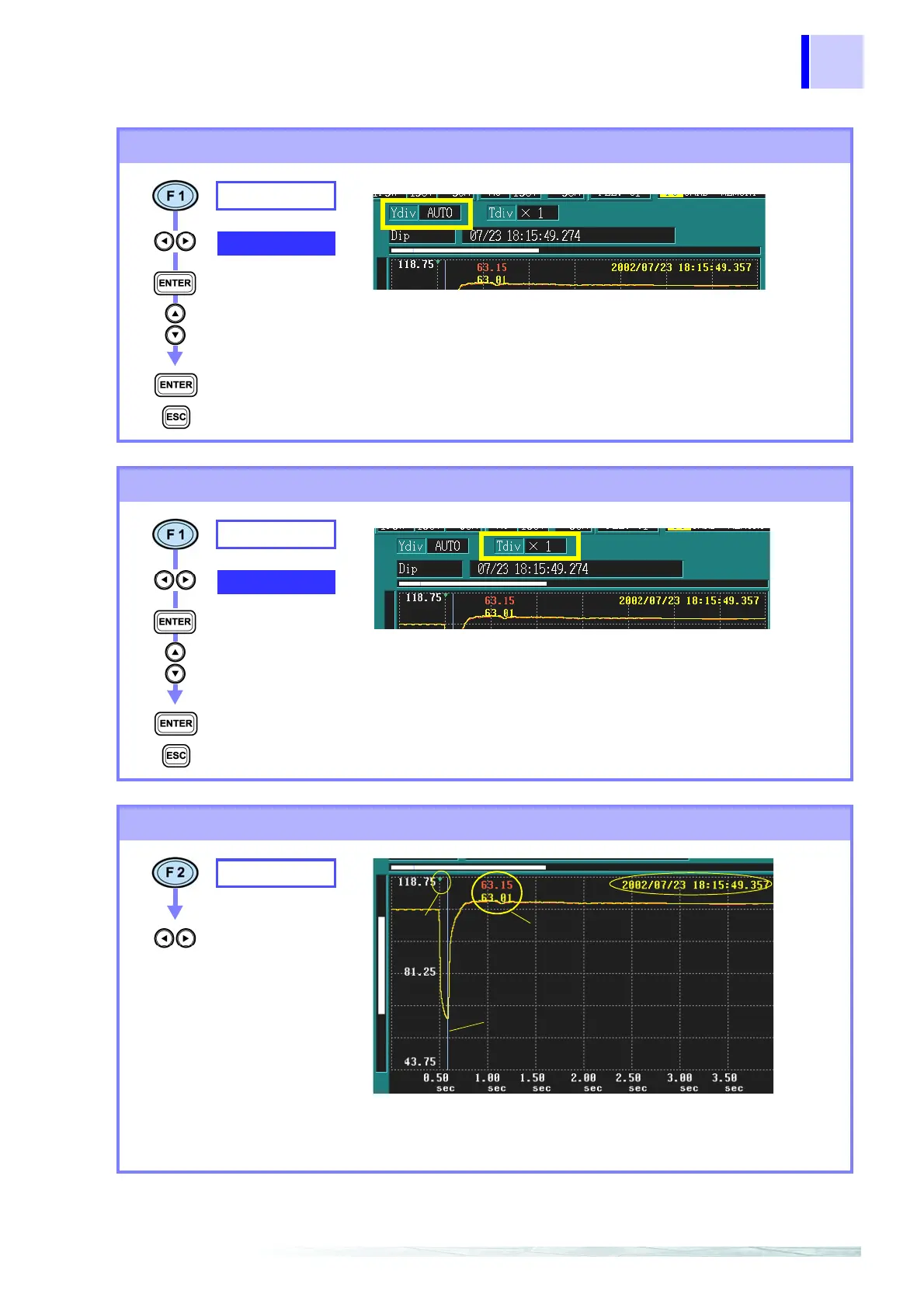

6.4 Changes in Voltage
97
Changing the Y-axis scale
SELECT
Ydiv
Select from pull-
down menu
Confirm
Cancel
AUTO, x1, x2, x5, x10, x25, x50
When you want to reduce the graph, make the scale smaller.
When you want to enlarge the graph, make the scale larger.
AUTO scaling is used during recording.
Changing the X-axis scale
SELECT
Tdiv
Select from pull-
down menu
Confirm
Cancel
AUTO, x5, x2, x1, x1/2, x1/4, x1/8, x1/16, x1/32, x1/64
When you want to reduce the graph, make the scale smaller.
When you want to enlarge the graph, make the scale larger.
AUTO scaling is used during recording. This cannot be
changed.
Cursor measurements
Cursor value
Event maker
Cursor
CURSOR
Move the vertical
cursor left and right
to read the display
value.
You can read the value above the cursor and the time on th
time series graph.
Red: U1
Yellow: U2
Blue: U3
Cursor
time
