6.6 Flicker
112

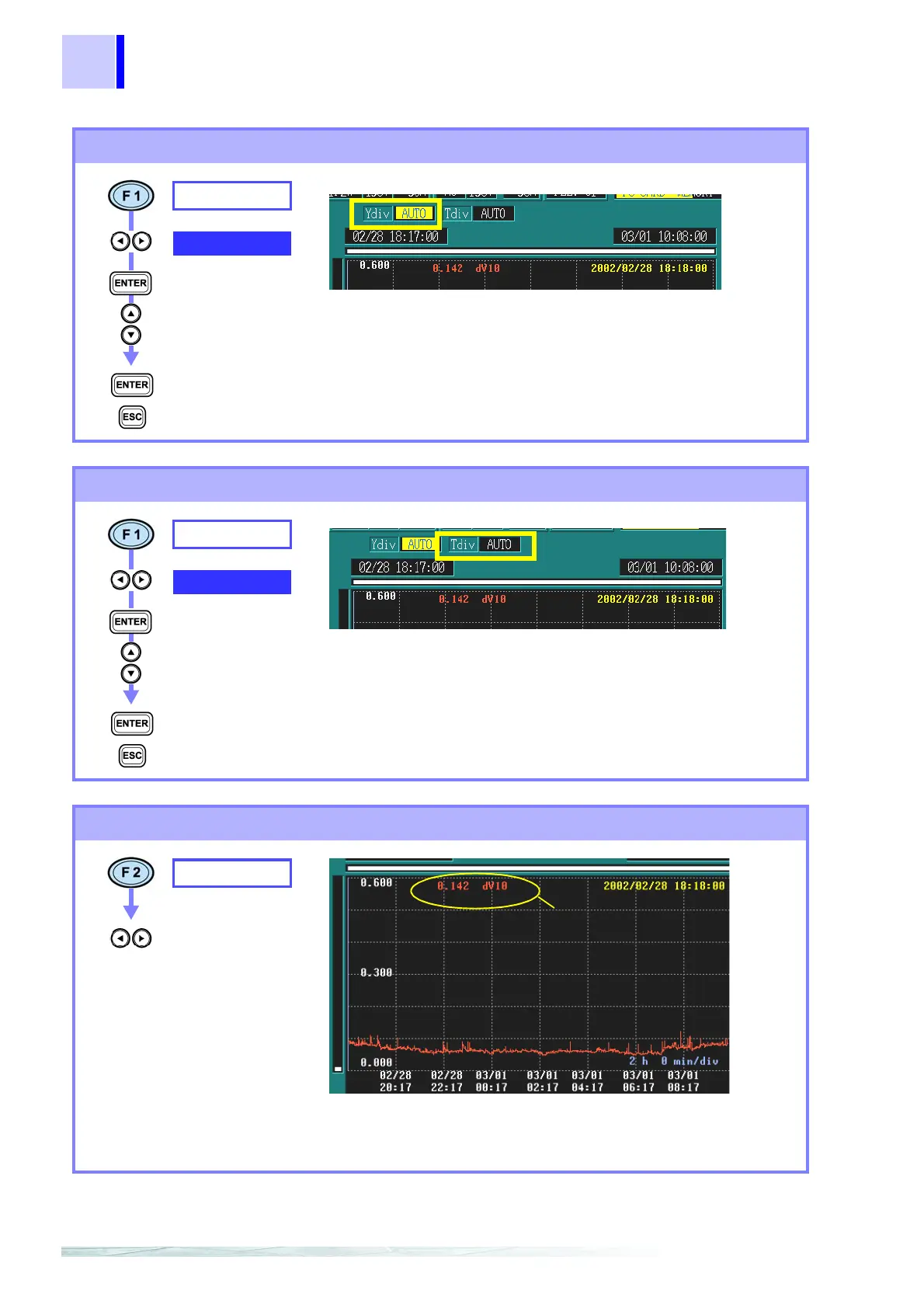

Changing the Y-axis scale
SELECT
Ydiv
Select from pull-
down menu
Confirm
Cancel
AUTO, x1, x2, x5, x10, x25, x50
When you want to reduce the graph, make the scale smaller.
When you want to enlarge the graph, make the scale larger.
AUTO scaling is used during recording.
Changing the X-axis scale
SELECT
Tdiv
Select from pull-
down menu
Confirm
Cancel
AUTO, x1, x1/2, x1/4, x1/8, x1/16, x1/32, x1/64
When you want to reduce the graph, make the scale smaller.
When you want to enlarge the graph, make the scale larger.
AUTO scaling is used during recording. This cannot be
changed.
Cursor measurements
Cursor value
CURSOR
Move the vertical cursor
left and right to read the
display value.
The measured value of ΔV10 flick can be read every 1 minute.
Measurement
value
ΔV10
Left side
Right side
