2.2 Screen Names and Configurations
21

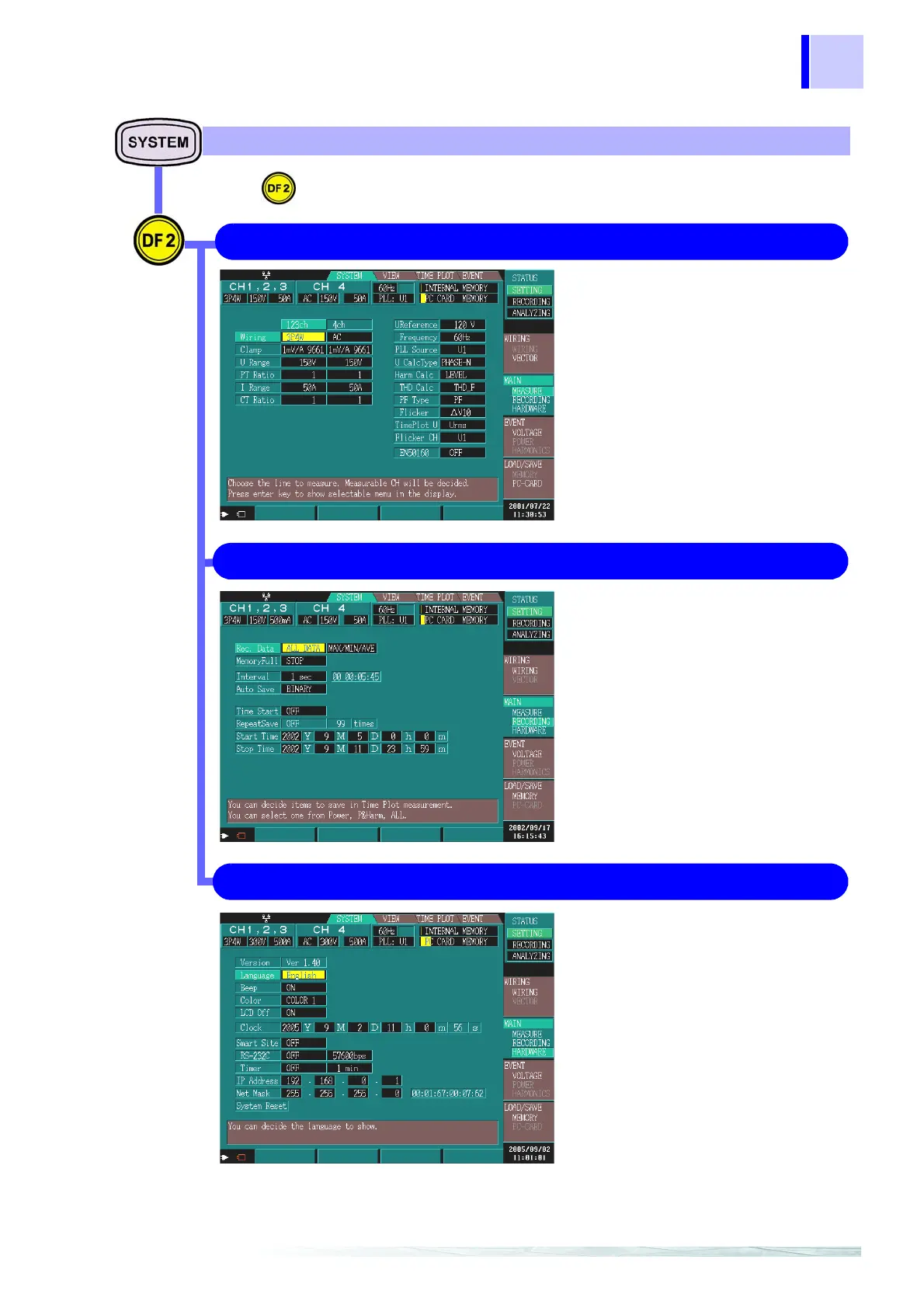

You can make basic measurement set
tings for the following.
• Connection method
• Voltage and current ranges
• PT and CT ratios
• Clamp sensor
• Nominal voltage
• Measured frequency
• PLL source
• Calculation method
•Flicker
• EN50160
and so on
MEASURE 4.3.1 "Main Settings"(page 49)
RECORDING 6.2 "Time Plot Settings"(page 81)
Press to switch the display screen.
You can make recording settings for the
following.
• TIME PLOT (time series) data selec
tion
• Measurement interval
• Auto-save to the PC card
• Real-time control
• Measurement start and end times
• Repeated recording
and so on
MAIN SYSTEM Screen
HARDWARE 4.3.3 "Hardware Settings"(page 59)
You can set the following hardware in-
formation.
• Display language
•Beep
• Screen color
• Clock settings
• RS-232C
• Automatic hard copy
•LAN
and so on
