2.2 Screen Names and Configurations
22
Select the event triggers and set the
thresholds.
You can set the following as events.
• Transient
•Swell
•Dip
• Interruption
• Frequency
• Voltage waveform comparison
VOLTAGE 7.3.1 "Voltage/Power Event Settings"(page 122)
POWER 7.3.1 "Voltage/Power Event Settings"(page 122)
Press to switch the display screen.
Select the event triggers and set the
thresholds.
You can set the following as events.
• Voltage and current RMS values
• Voltage and current waveform
peak values
• Active power
• Reactive power
• Apparent power
• Power factor
• K factor
• Voltage and current distortion factor
s
• Voltage and current unbalance
factors

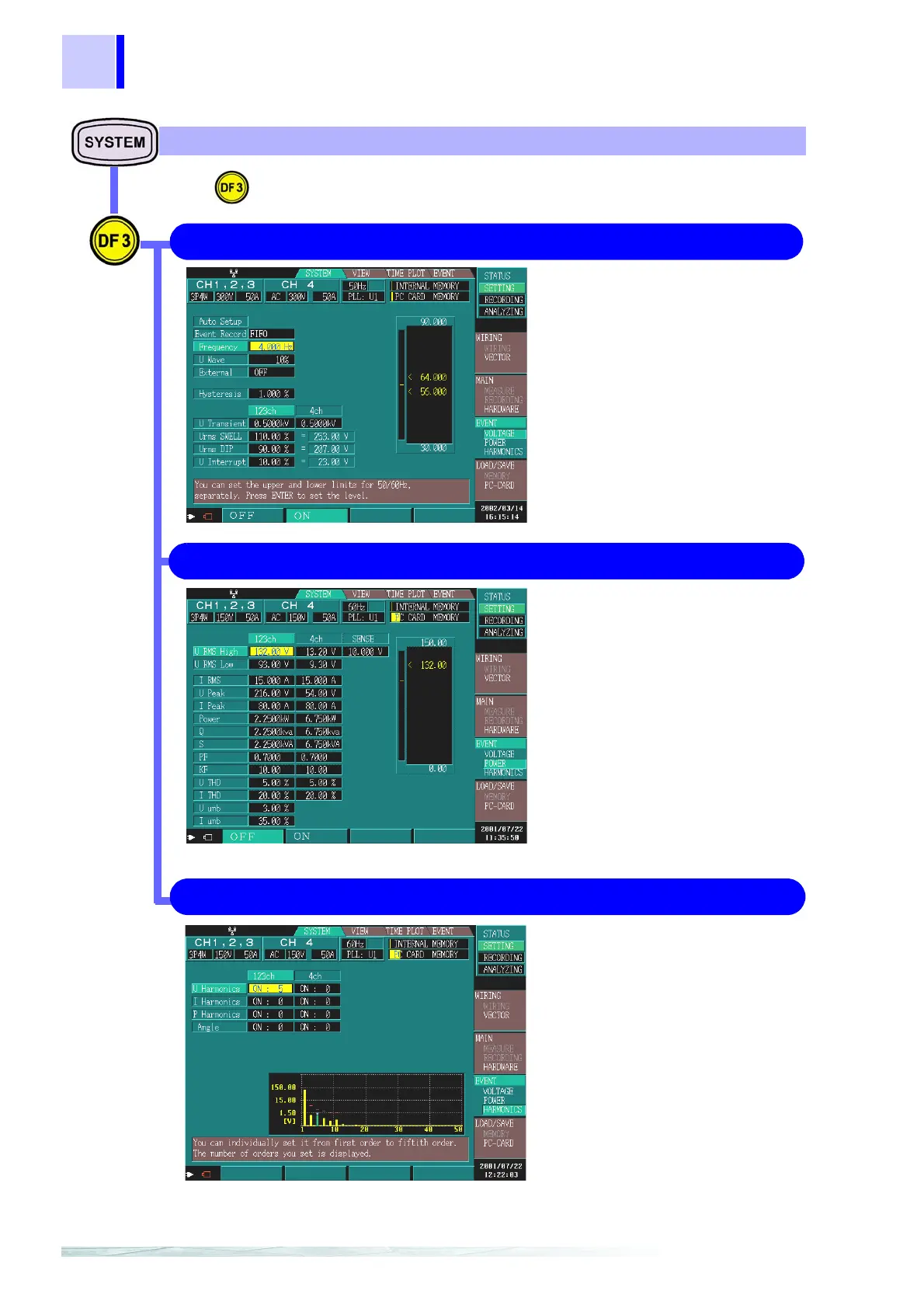

EVENT SYSTEM Screen
HARMONICS 7.3.2 "Harmonics Event Setting"(page 126)
Select the event triggers and set the
thresholds.
You can set the following as events.
• Voltage, current, and power
harmonics
• Harmonics phase difference angle
