2.2 Screen Names and Configurations
24

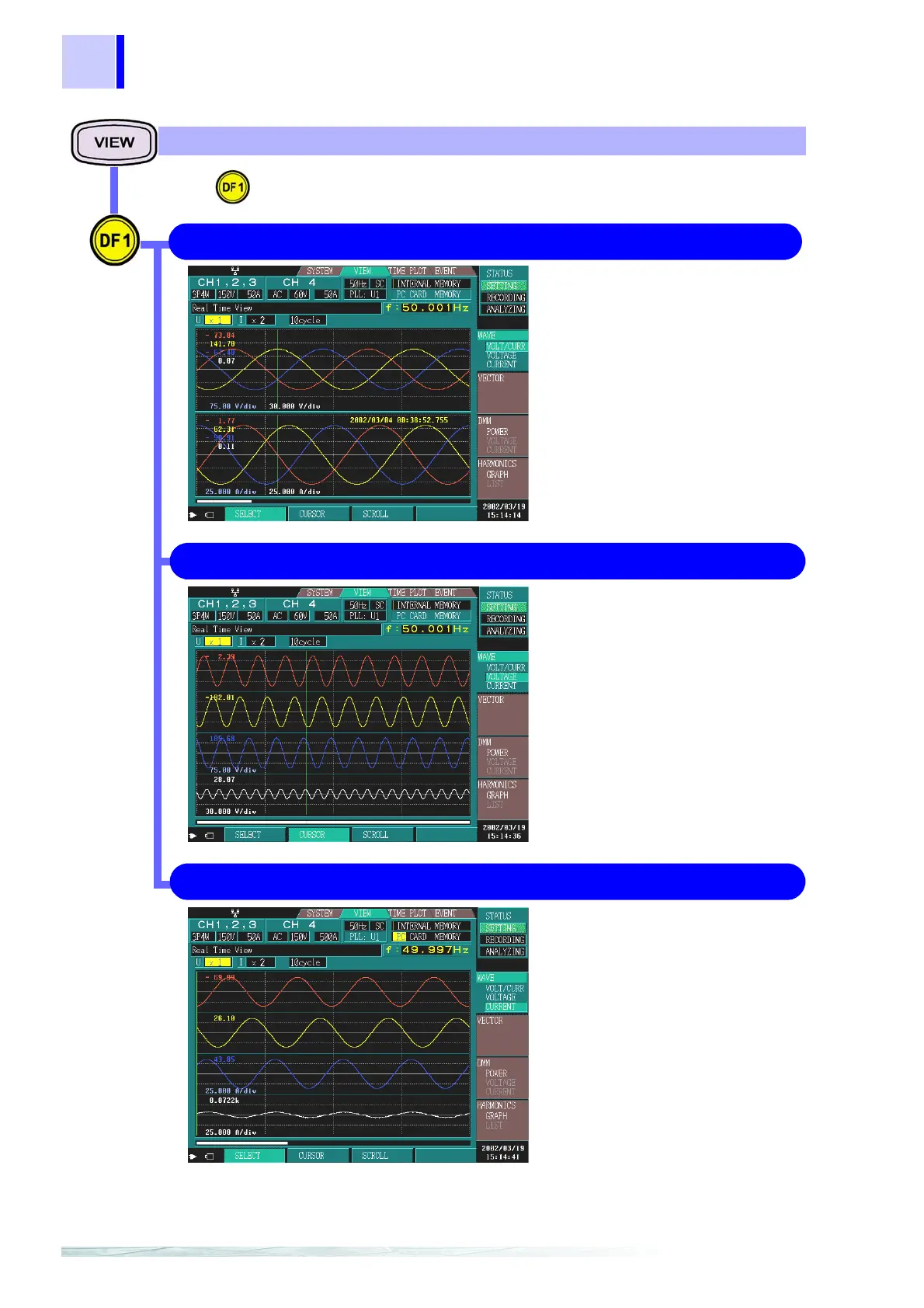

Displays voltage and current wave-
forms for channels, depending on how
they are connected.
Displays 10 waveforms at 50 Hz, 12
waveforms at 60 Hz, and 80 wave-
forms at 400 Hz.
By scrolling when an event is selected,
you can display 14 waveforms at 50
Hz, 16 waveforms at 60 Hz, and 112
waveforms at 400 Hz.
VOLT/CURR 5.2 "Waveform Display"(page 67)
VOLTAGE 5.2 "Waveform Display"(page 67)
Press to switch the display screen.
Displays voltage waveforms for chan-
nels, depending on how they are con-
nected.
When three-phase 4-wire is selected,
you can display voltage waveforms for
4 channels to identify the degree of
phase rotation of each channel.
WAVE VIEW Screen
CURRENT 5.2 "Waveform Display"(page 67)
Displays current waveforms for chan-
nels, depending on how they are con-
nected.
When three-phase 4-wire is selected,
you can display current waveforms for
4 channels to identify the degree of
phase rotation of each channel.
