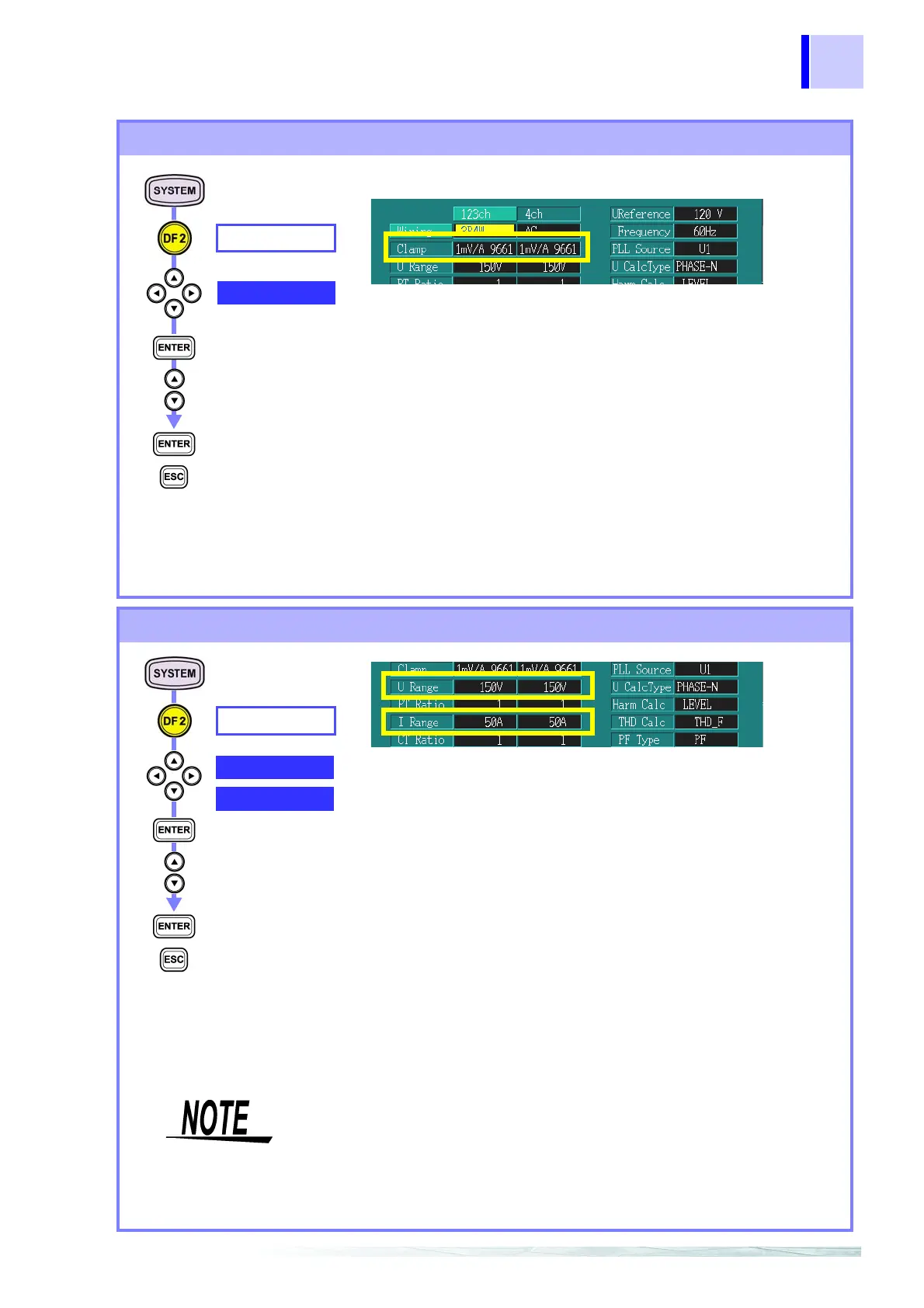

4.3 Making System Settings
51
Clamp sensor
settings
MEASURE
Clamp
Select from pull-
down menu
Confirm
Cancel
Set the output rate (the output voltage to input current ratio) of the
clamp sensor you are using.
Settings of the optional clamp on sensor:
0.1 mV/A, 1 mV/A
9661
9660
Use the 9661 CLAMP ON SENSOR
Use the 9660, 9695-03 CLAMP ON SENSOR
10 mV/A 9694
Use the 9694, 9695-02 CLAMP ON SENSOR
100 mV/A Use the 9657-10, 9675 CLAMP ON LEAK SEN-
SOR
5000A 9667 Use the 9667 FLEXIBLE CLAMP ON SENSOR
(5000 A range)
500A 9667 Use the 9667 FLEXIBLE CLAMP ON SENSOR
(500 A range)
1000A 9669 Use the 9669 CLAMP ON SENSOR
Voltage and current range settings
• The ranges of channels 1 to 3 (CH 1, 2, 3) are the same. You cannot
set ranges separately for each channel.
• Set the voltage range higher than the set nominal voltage. The accu-
racy of this device is guaranteed for values measured within 1% to
110% of the set range.
• The 9694 is designed for 5 A. It can be used in the 50-A range, but the
accuracy specification only applies to the 5-A range.
MEASURE
U Range
Select from pull-
down menu
Confirm
Cancel
The range that can be selected depends on the clamp you
choose.
Channel (Voltage range)
123ch
150 V, 300 V, 600 V
4 ch (AC)
60 V, 150 V, 300 V, 600 V
4 ch (DC)
60 V, 600 V
Clamp settings (Current range)
0.1mV/A
500A, 5000A
1mV/A 9661
50A, 500A
9660
50A, 100A
10mV/A 9694
5A, 50A
100mV/A
0.5A, 5A
5000A 9667
500A, 5000A
500A 9667
50A, 500A
1000A 9669
100A, 1000A
I Range
To Next Page
