4.3 Making System Settings
56

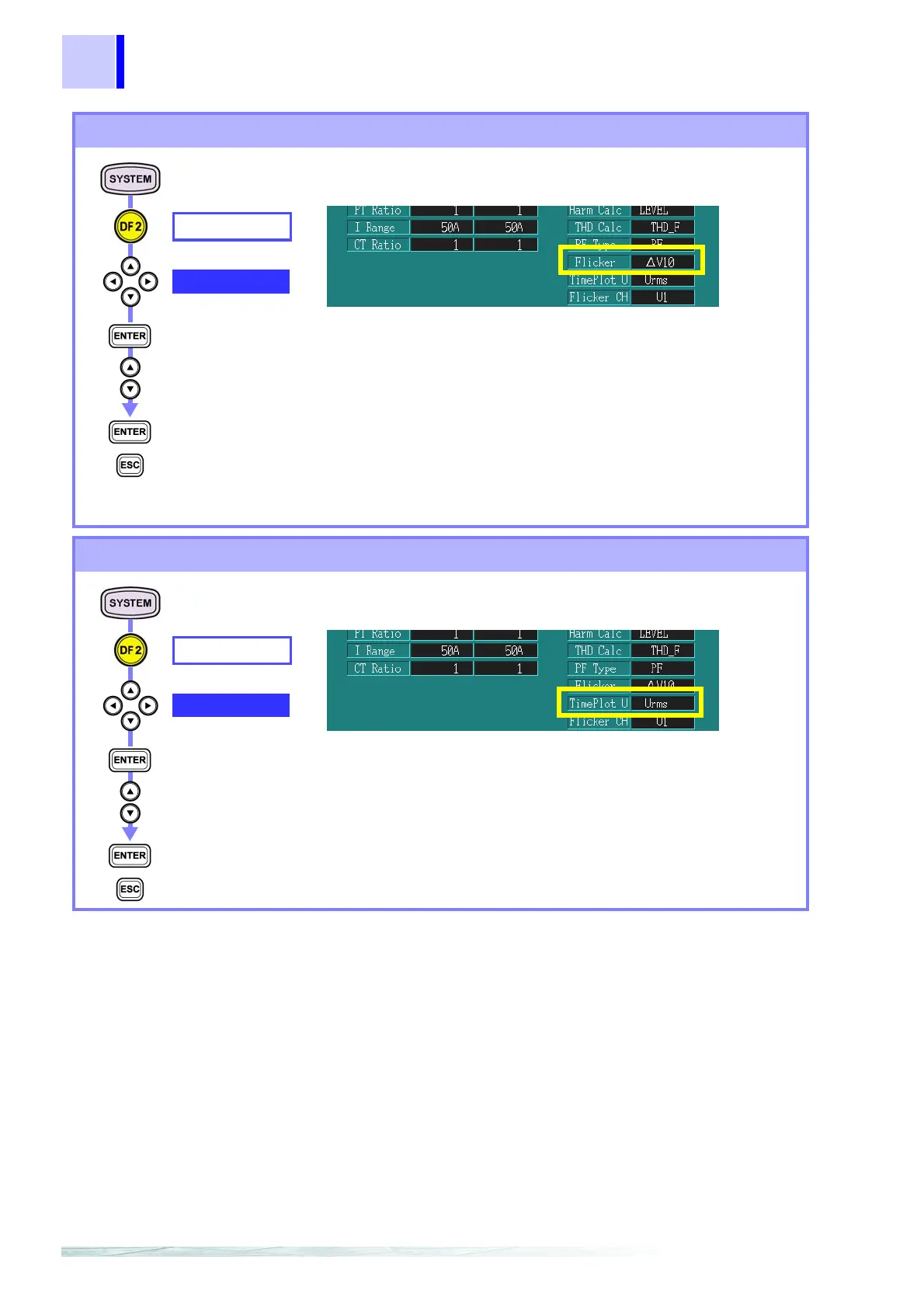

Flicker calculation settings
MEASURE
Flicker
Select from pull-
down menu
Confirm
Cancel
ΔV10 flicker can only be measured on one of voltage channels
U1, U2 or U3. The measurement source is the channel that is
selected for flicker measurement.
OFF
Flicker measurement is not used.
Pst,Plt
IEC flicker is measured.
ΔV10
Δ V10 flicker is measured.
Voltage recording method settings
MEASURE
TimePlot U
Select from pull-
down menu
Confirm
Cancel
The data recorded is reflected in the voltage fluctuation time plot.
Urms
Records the voltage rms value
S(t)
Records the flicker value instantly.
(Pst, Plt is selected for Flicker)
ΔU
Records the deviation with respect to the nominal RMS voltag
e.
(ΔV10 is selected for Flicker)
