5.5 Harmonics Display
77

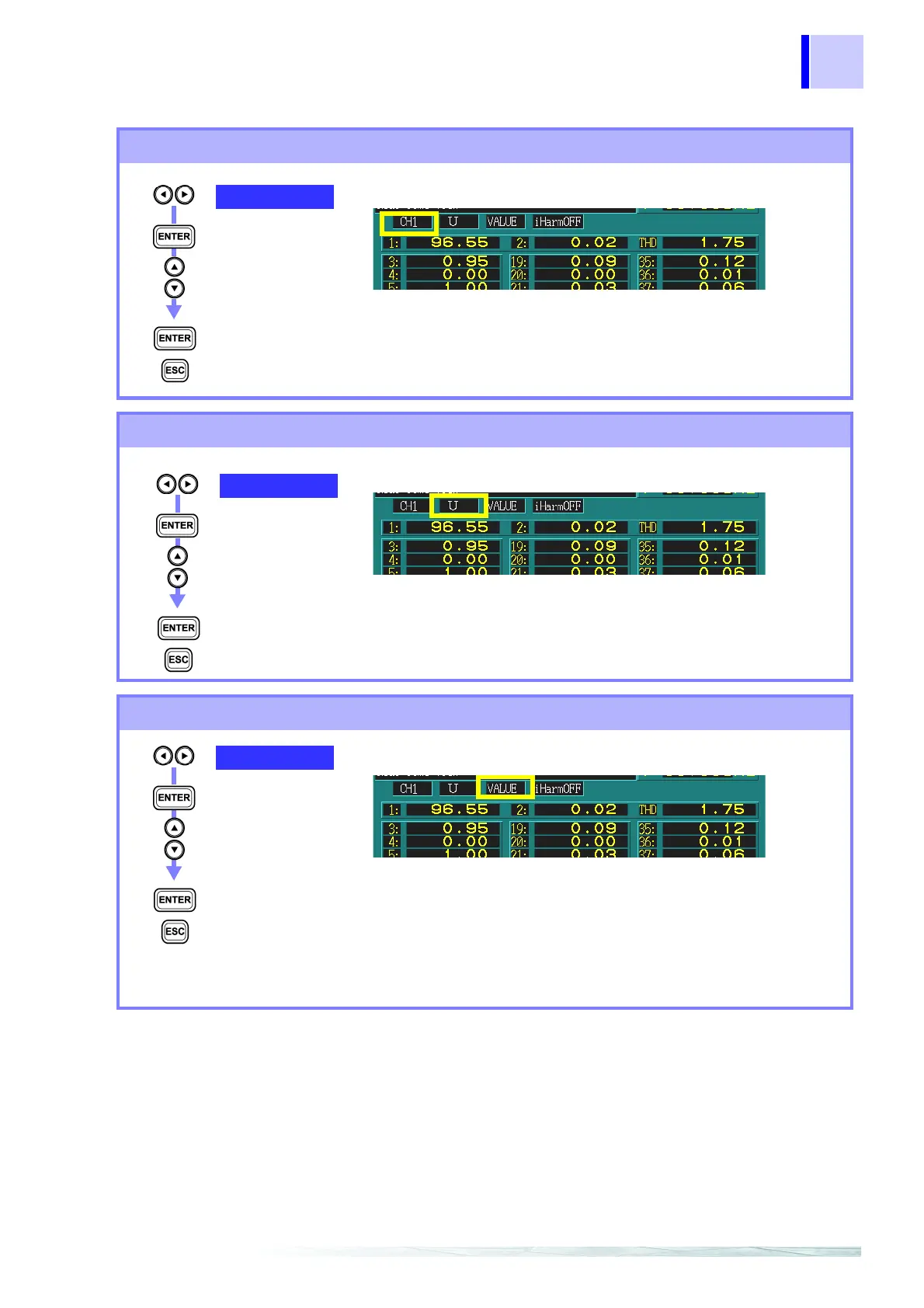

Changing the display channel
Changing the display item
Changing the RMS value/phase angle display
CH1
Select from pull-
down menu
Confirm
Cancel
CH1, CH2, CH3, CH4
(Example)
U
Select from pull-
down menu
Confirm
Cancel
U, I, P
(Example)
VALUE
Select from pull-
down menu
Confirm
Cancel
VALUE (RMS value)
PHASE (phase angle)
You can select whether RMS values or phase angles are dis-
played in the harmonic list.
The harmonic power phase angle indicates the harmonic
voltage-current phase difference.
(Example)
