5.5 Harmonics Display
78
Displaying inter-harmonics
iHarmOFF
Select from pull-
down menu
Confirm
Cancel
iHarmOFF, iHarmON
When active power (P) is selected as the display item, inter
-
harmonics are not displayed.

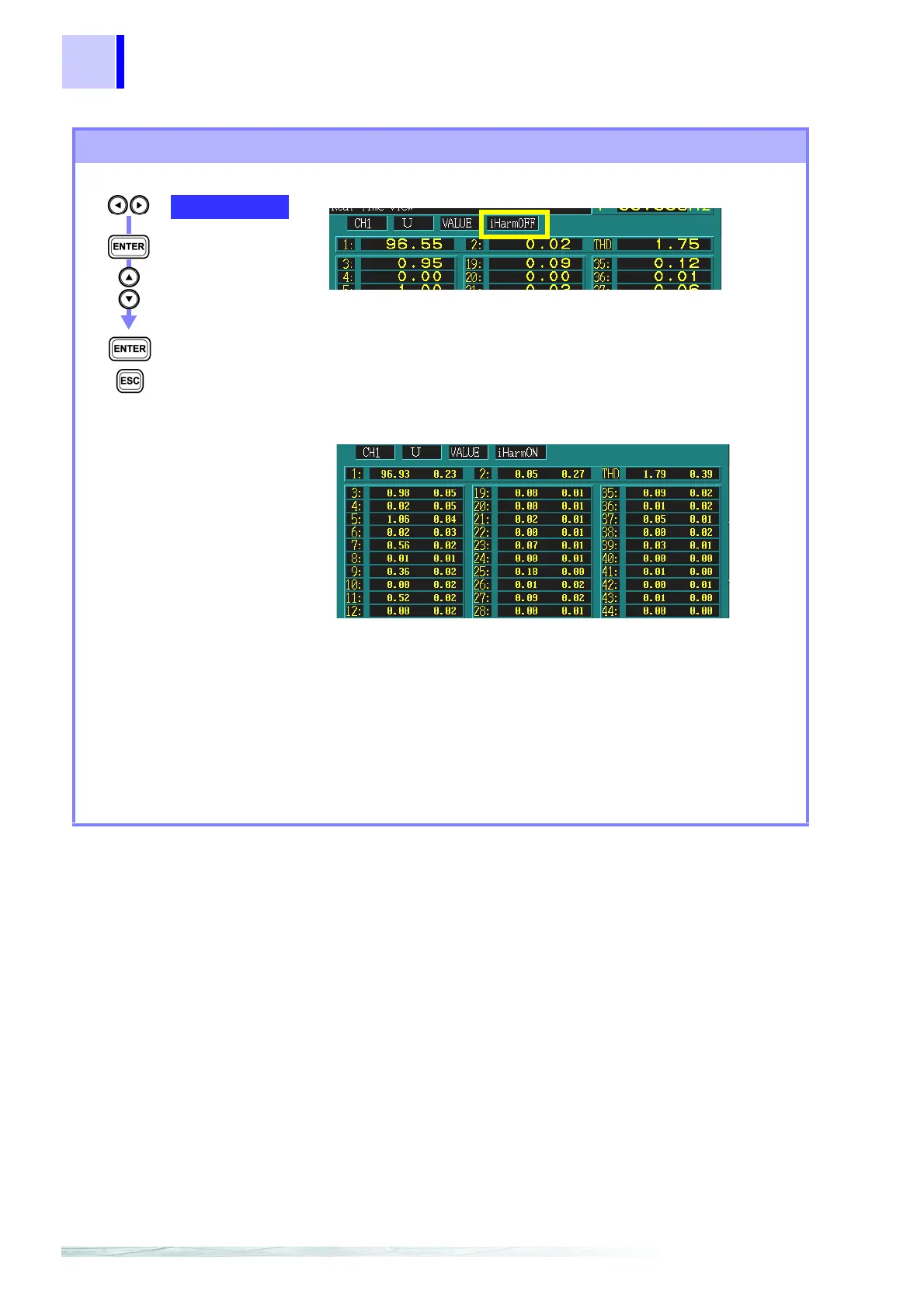

If you display inter-harmonics (iHarmON), the screen
changes as follows.
The left side of the example shows harmonics and the right
inter-harmonics.
Inter-harmonics order numbers are 0.5 less than the order
numbers of harmonics in the same line.
(Example)
The order of inter-harmonics on the right of the 21st har-
monic is 20.5.
(Example)
