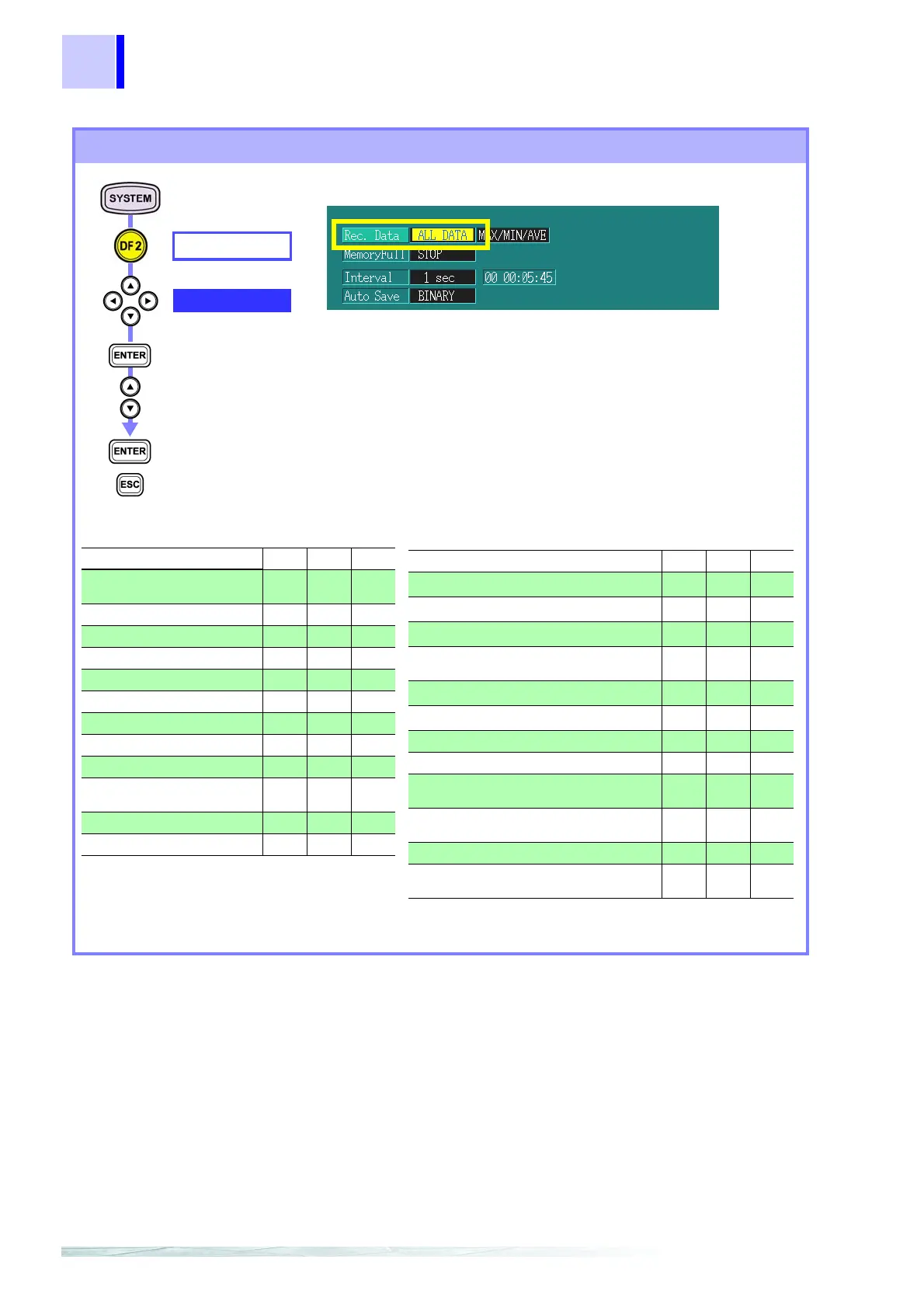

6.2 Time Plot Settings
82
Types of settings to record data 1
RECORDING
Rec. Data
Select from pull-
down menu
Confirm
Cancel
If 400 Hz is selected, ALL DATA can not be selected.
ALL DATA
Records all the calculation values.
P&Harm
Records all calculation values except inter-har-
monics.
Power
Records all calculation values except harmonics
and
inter-harmonics .
1: Power/ 2: P&Harm/ 3: ALL DATA
Recorded item Pattern
123
Voltage (one wave shifted
over half a wave)
● ● ●
Frequency
●●●
RMS voltage value
● ● ●
RMS current value
●●●
Voltage waveform peak
● ● ●
Current waveform peak
●●●
Active power
● ● ●
Apparent power
●●●
Reactive power
● ● ●
Power factor/Displacement
power factor
●●●
Voltage unbalance factor
● ● ●
Current unbalance factor
●●●
1: Power/ 2: P&Harm/ 3: ALL DATA
Recorded item Pattern
123
Harmonic voltage
×
● ●
Harmonic current
×
●●
Harmonic power
×
● ●
Harmonic voltage-current phase differ-
ence angle
×
●●
Inter-harmonic voltage
× ×
●
Inter-harmonic current
××
●
Total harmonic voltage distortion factor
● ● ●
Total harmonic current distortion factor
●●●
Total inter-harmonic voltage distortion
factor
× ×
●
Total inter-harmonic current distortion
factor
××
●
K factor
● ● ●
Flicker
(Δ V10 or Pst, PLt)
●●●
