4.2 Details of Measuremen t Setting
______________________________________________________________________________________________
4.2.7 Information (Left)

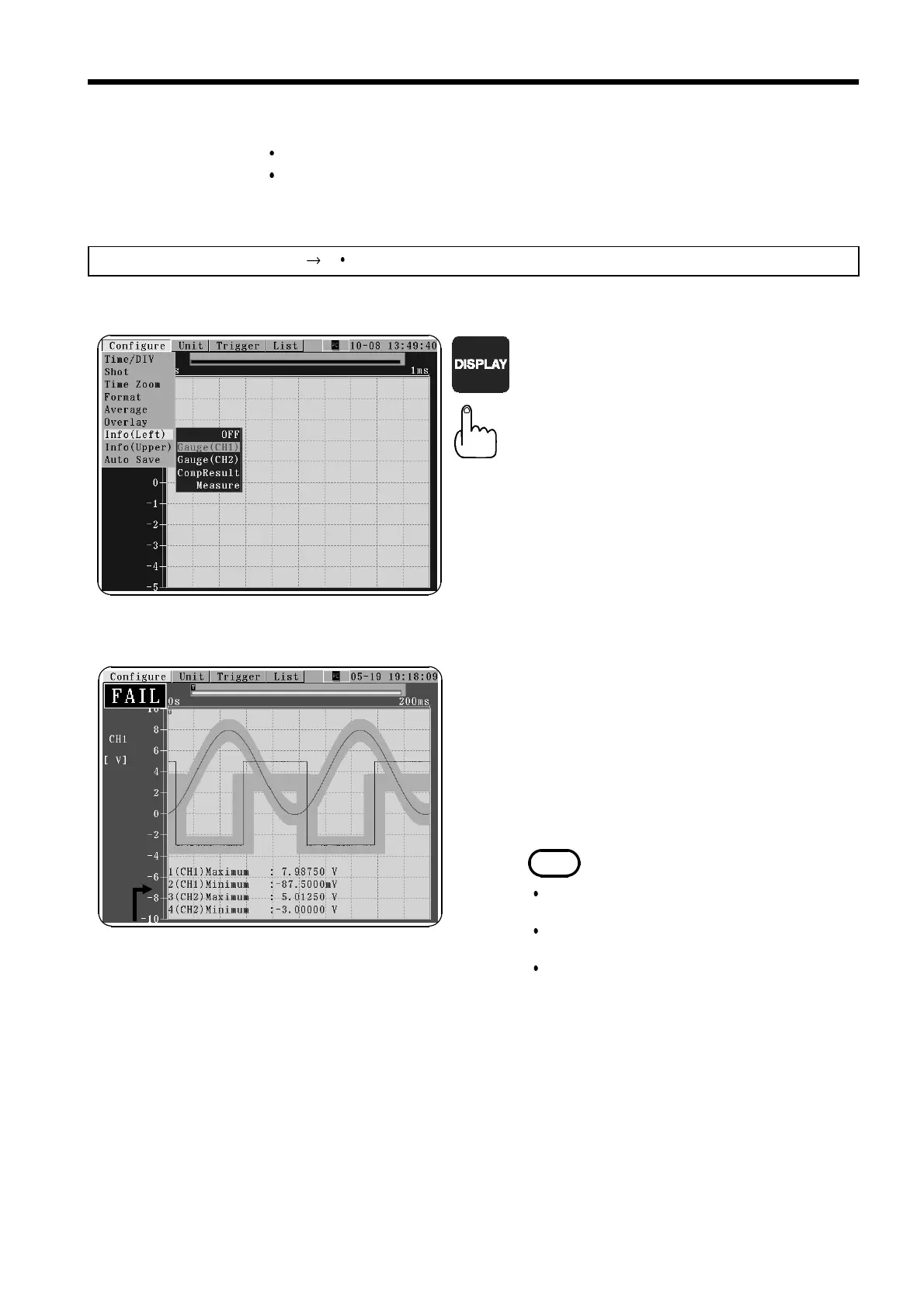

Setting Screen: Configure
Info (Left) (OFF, Gauge (CH1), Gauge (CH2), CompResult, Measure)
When the "
Gau
g
e
(
CH1
)
" is selected:
Gau
g
eofCH1
NOTE
Sets the information to be displayed at the left of the screen.
A gauge (for graduations) or comparison result is displayed.
Setting Procedure
1. Press the
DISPLAY
key to select the
"
Configure
" tag. Press the
ENTER
key to
display the menu.
2. Move the cursor to "
Info (Left)
", and
press the
ENTER
key.
3. Use the
CURSOR
key to select an item,
then press the
ENTER
key.
OFF : Does not display any
information.
Gauge (CH1) : Displays the gauge of
CH1.
(Note 1)
Gauge (CH2) : Displays the gauge of
CH2.
(Note 2)
CompResult : Displays the Waveform
comparison result (PASS,
FAIL).
Measure : Displays the comparison
result, and upper and
lower limits (thresholds) of
value comparisons.
(Note 1) This cannot be selected
when the XY screen format is selected.
(Note 2) The 8730-10 cannot display
the gauge of CH2.
Normally, the waveform and area of CH1
are superimposed over those of CH2.
When the"
Gauge (CH2)
" is selected,
however, the waveform and area of
CH2 are superimposed over those of
CH1.
