4.2 Details of Measuremen t Setting
______________________________________________________________________________________________
4.2.8 Information (Upper)

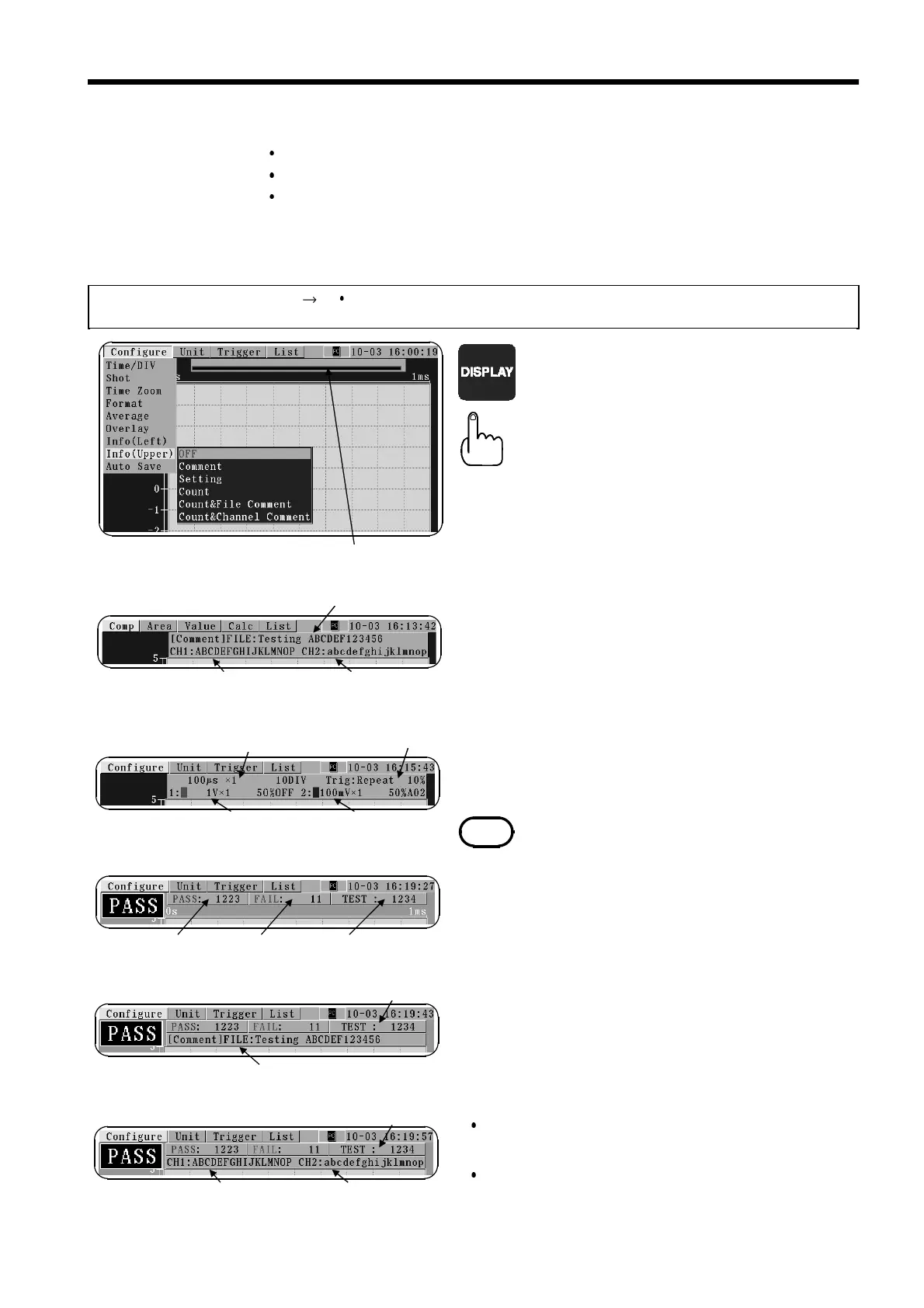

Setting Screen: Configure
Info (Upper) (OFF, Comment, Setting, Count, Count&File Comment,
Count&Channel Comment)
1. Press the
DISPLAY
key to select the
"
Configure
" tag. Press the
ENTER
key
to display the menu.
2. Move the cursor to "
Info (Upper)
",
and press the
ENTER
key.
3. Use the
CURSOR
key to select an
item, then press the
ENTER
key.
OFF : Displays the scroll bar and
time on both sides of the
screen.
Comment: Displays comments on files
and on each channel.
Setting : Displays current settings.
Count : Displays the counted number
of PASS, FAIL and TEST.
Count&File Comment
: Displays the counted numbers
and file comment.
Count&Channel Comment
: Displays the counted numbers
and channel comments.
"
Comment
"
"
OFF
" Scroll Bar
File Comment
Comment of CH1 Comment of CH2
"
Setting
"
Setting of CH1 Setting of CH2
"
Count
"
PASS count TEST count
"
Count&File Comment
"
Count
File Comment
FAIL count
"
Count&Channel Comment
"
Comment of CH1 Comment of CH2
Count
NOTE
・
Comments will not appear without inputting it in
advance.
・
A file co mmen t will a pe a r wh en lo ading a file or
switching test modes.
・
In case of no comparison, only th e TEST count is
displayed.
・
As for averaging, whenever set count is completed, the
counter is increased.
・
"Setting" di splays Time axis/ Shot / Trigger in t he up per
a nd d ispl ays t h e vo ltage axis/ zero position/ compar ison
area in the lower.
<<Related Issues>>
For file comments, see 6.4.2.
For channel comments, see 4.3.10.
For how to enter comments, see 8 in 3.1.2.
Time Axis and
Recording Length
Setting of trigger
Sets the information to be displayed at the upper part of the screen.
Displays comments, setting info. and test counts.
"Count" displays PASS, FAIL and TEST counts. Displays OVER when the
count exceeds 999,999. The counter will be resetted when starting
measurements, powering on, loading a file or switching test modes.
