E1 Series Servo Drive Thunder Software Operation Manual Servo Drive Configuration
HIWIN MIKROSYSTEM CORP. 4-77
MD12UE01-2012

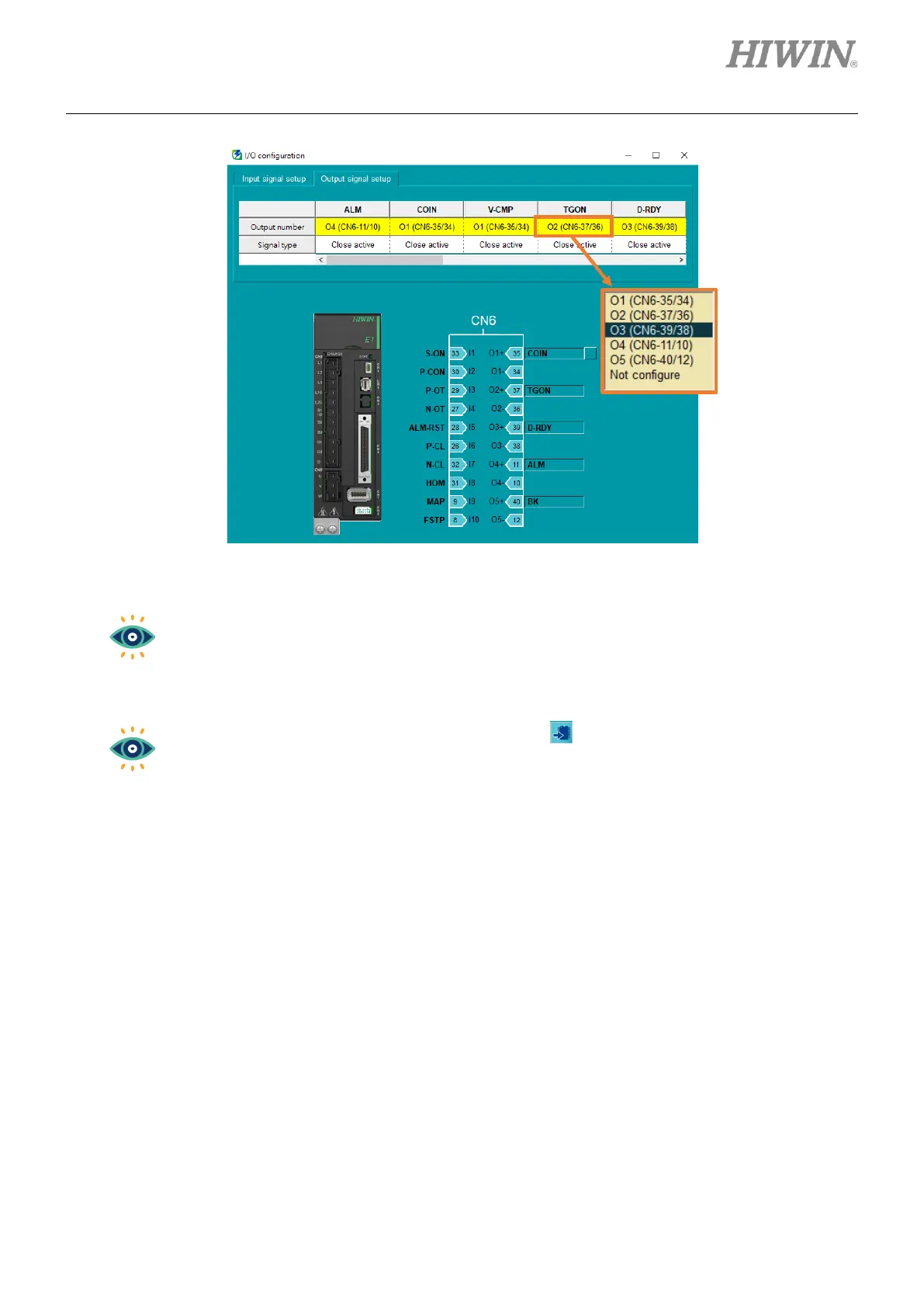

Figure 4.5.3.4
Important
Different control mode has different output signal allocation. If the output signal is not supported
by the mode, it will be OFF. Refer to section 8.1.2 in “E1 Series Servo Drive User Manual” for
the detailed descriptions of output signal.
Important
After the modification, click “Save to drive” icon in the toolbar. The new setting will be
effective after users power cycle the servo drive.
