E1 Series Servo Drive Thunder Software Operation Manual Perform Test Run
HIWIN MIKROSYSTEM CORP. 5-7
MD12UE01-2012

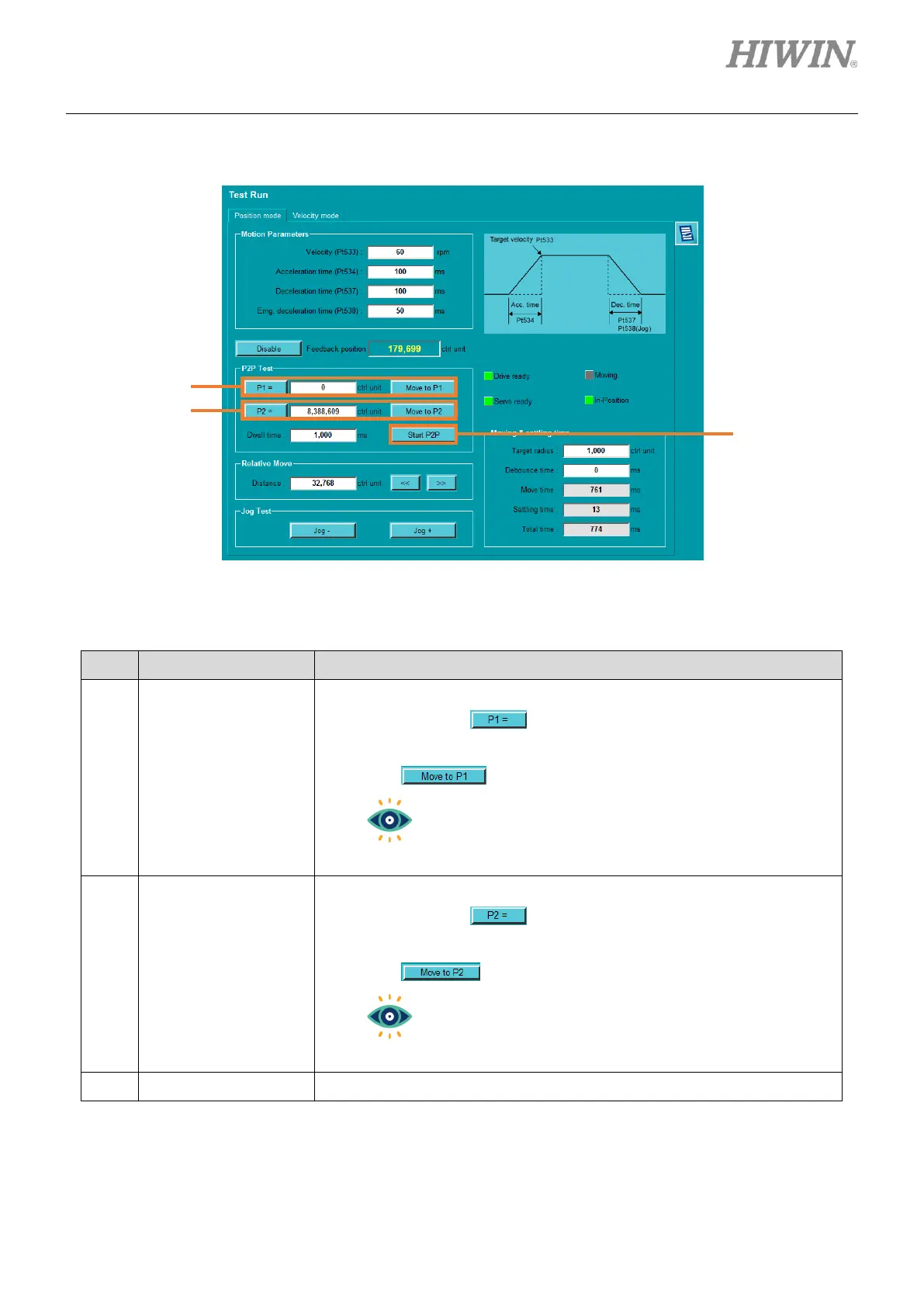

5. Perform single point move or point-to-point move.
Figure 5.2.2.5
Table 5.2.2.4
No.
Item
Description
(1)
P1 coordinate
1. Set start position P1. Users can directly key in the coordinate in the
column or click to set the current motor position as the start
coordinate.
2. Click to move the motor to target position P1.
Important
P1 must be smaller than P2.
(2)
P2 coordinate
1. Set start position P2. Users can directly key in the coordinate in the
column or click to set the current motor position as the start
coordinate.
2. Click to move the motor to target position P2.
Important
P1 must be smaller than P2.
(3)
Start P2P
Click the button to start or stop point-to-point move test.
(1)
(2)
(3)
