Perform Test Run E1 Series Servo Drive Thunder Software Operation Manual
5-10 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012
Table 5.2.3.2
No.
Item
Description
Reference
(1)
Status display area
Drive ready:
When it lights up in green, the servo dive is ready.
Servo ready:
Display whether the motor is enabled. If it lights up in
green after users click Enable, servo is ready.
Rotation / Moving:
Rotation signal detection; when it lights up in green,
TGON signal is triggered.
section 8.1.7 in “E1
Series Servo Drive
User Manual”
5. After clicking Enable, users can perform jog test.

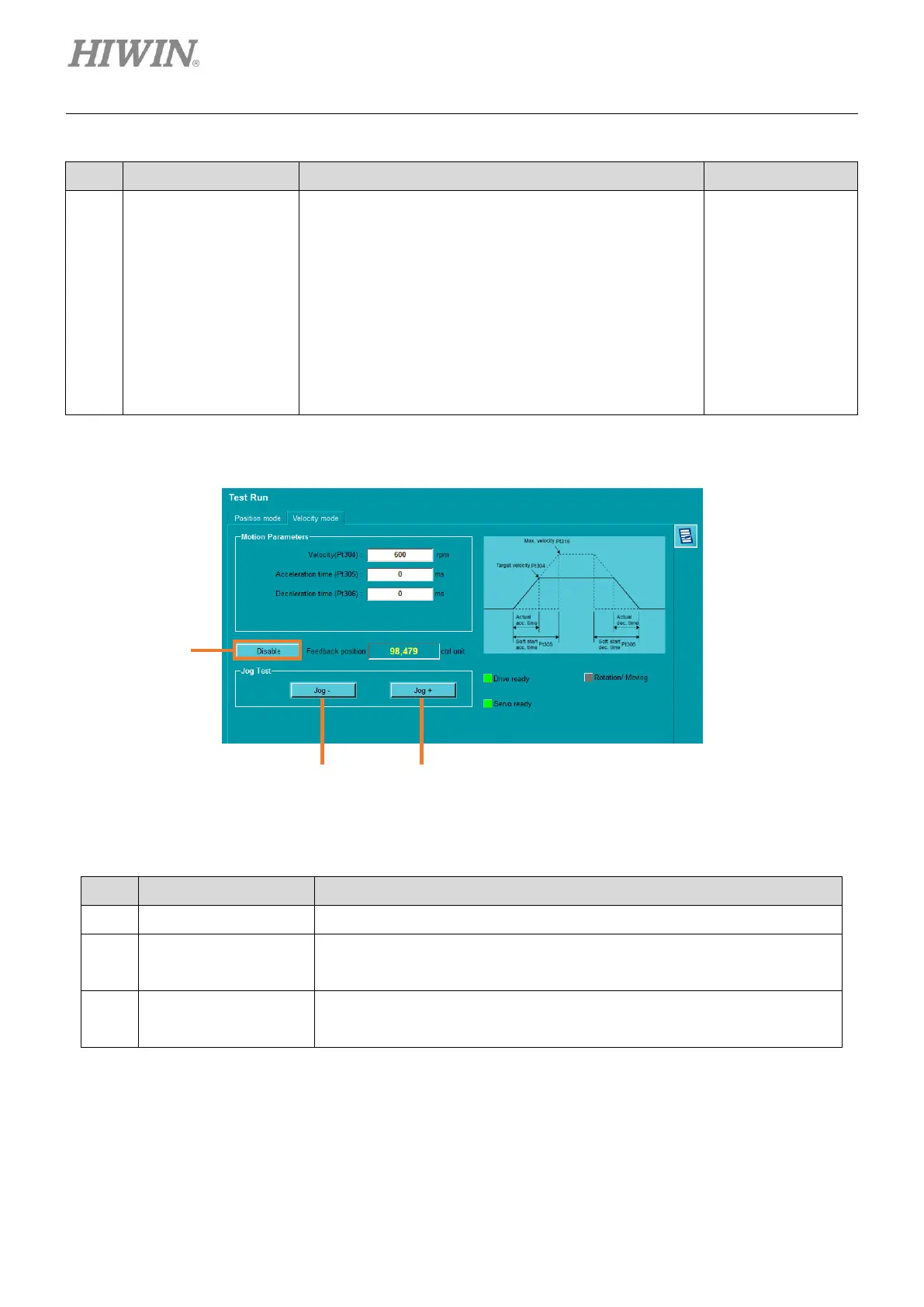

Figure 5.2.3.5
Table 5.2.3.3
No.
Item
Description
(1)
Enable button
Click the button to enable or disable the motor.
(2)
Negative jog
Move toward negative direction. Continuously click Jog- to continuously jog
in negative direction.
(3)
Positive jog
Move toward positive direction. Continuously click Jog+ to continuously jog
in positive direction.
(1)
(2)
(3)
