E1 Series Servo Drive Thunder Software Operation Manual Advanced Functions
HIWIN MIKROSYSTEM CORP. 9-7
MD12UE01-2012
2. Click “New or Modify” icon to open “Set motion number and specify input signal” window. After
keying in “Motion number”, the signal configuration corresponding to each motion will be automatically
generated.

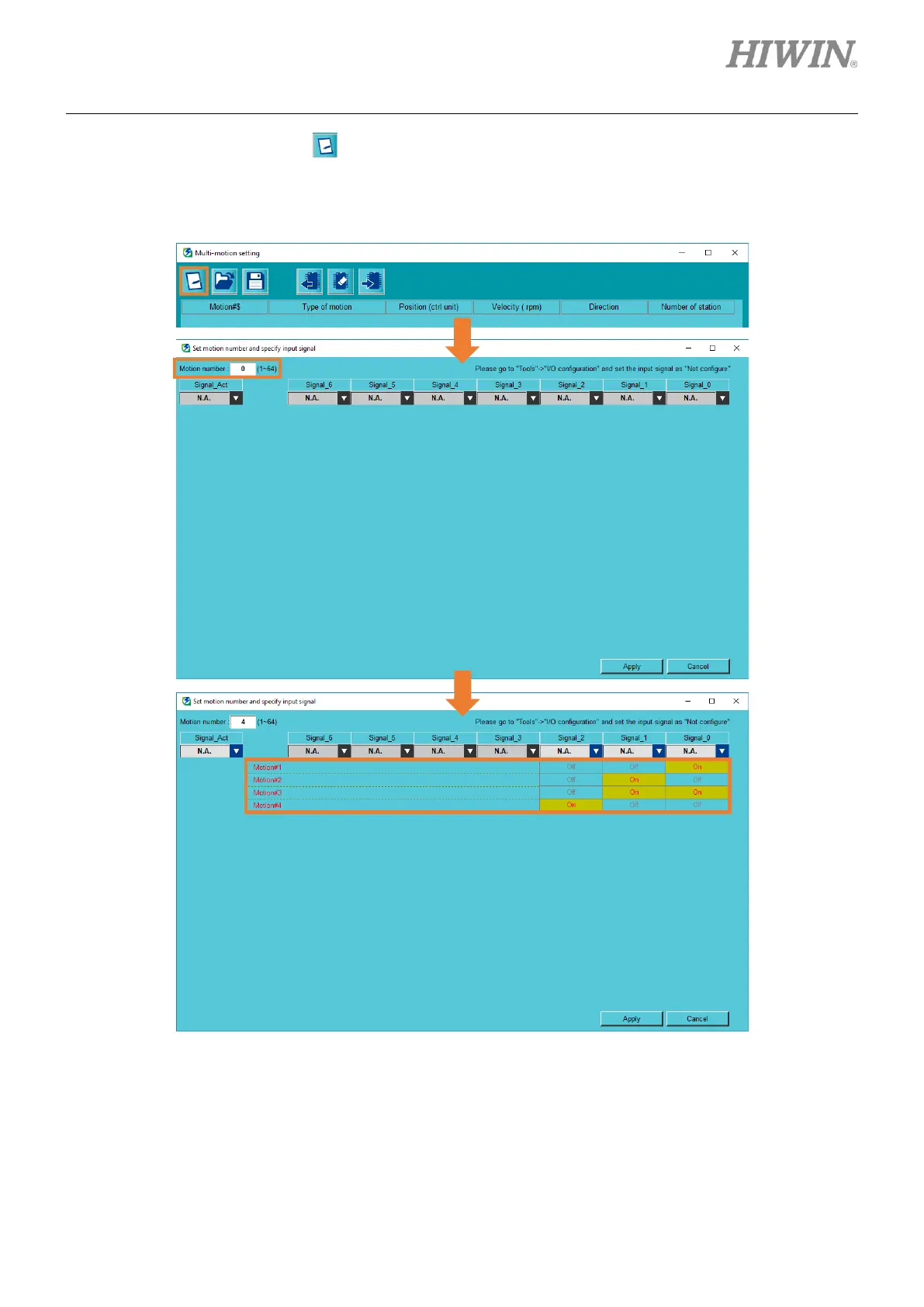

Figure 9.2.3.2
3. Assign input pins of “Signal_Act” and “Signal_0~6”.
