Advanced Functions E1 Series Servo Drive Thunder Software Operation Manual
9-8 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012

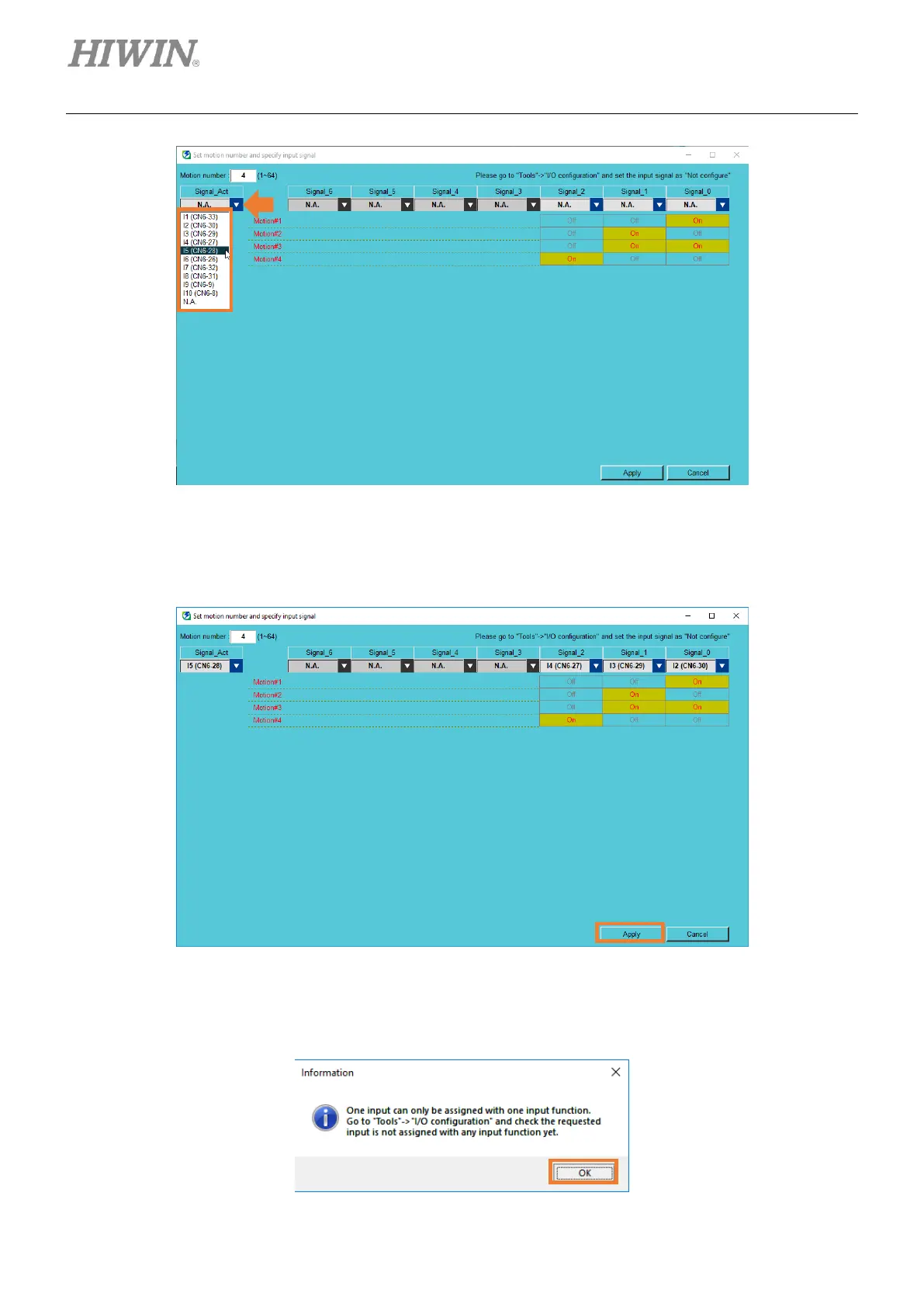

Figure 9.2.3.3
4. After the setting is done, click Apply.
Figure 9.2.3.4
5. An information window will pop up. Click OK and check if there is a conflict in input signal configuration.
Figure 9.2.3.5
