Start Thunder E1 Series Servo Drive Thunder Software Operation Manual
3-8 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012

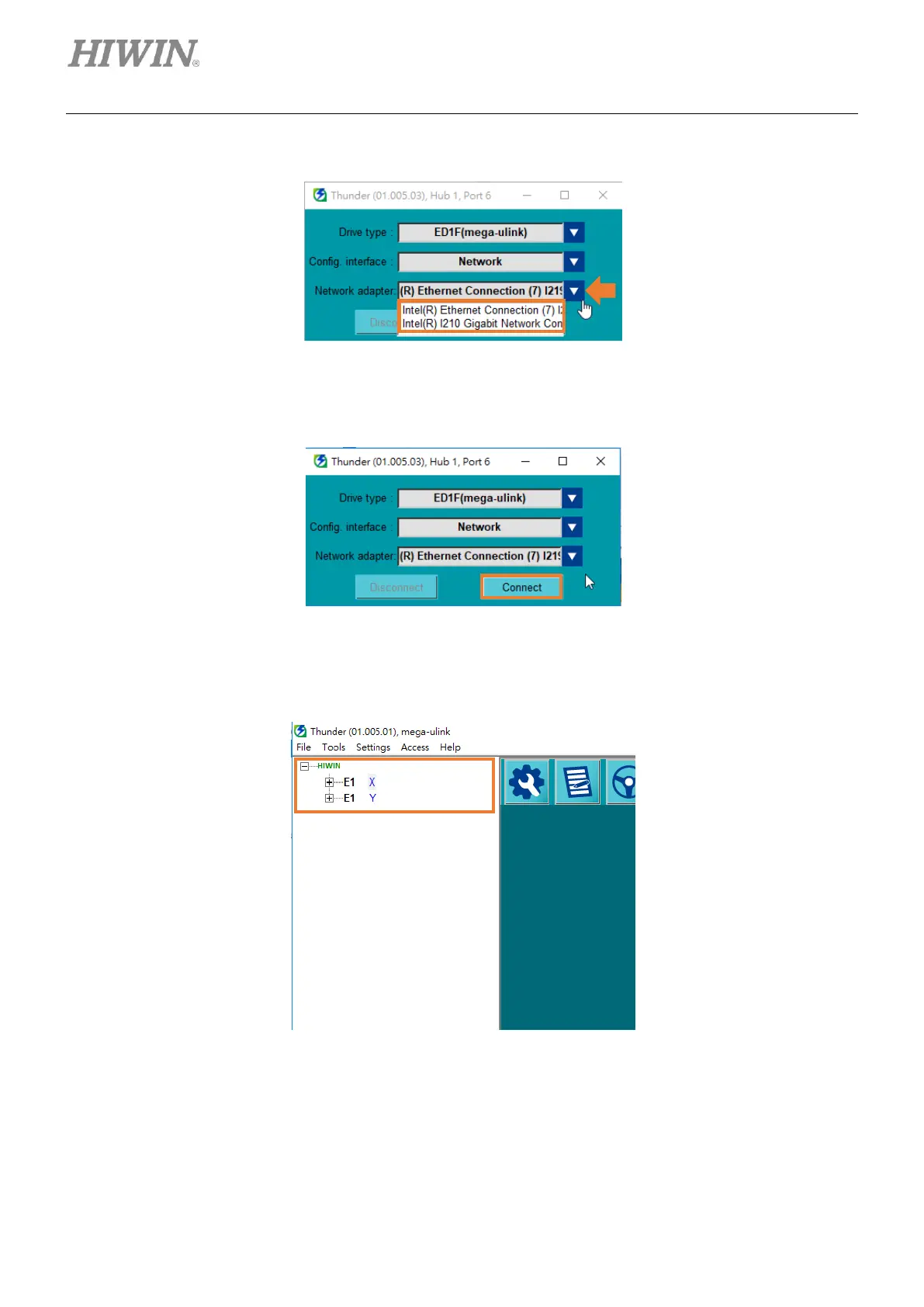

3. Select the network adapter actually connected to the servo drive.
Figure 3.2.3.1.4
4. Click Connect.
Figure 3.2.3.1.5
5. Go to information column to check if the multi-axes connection succeeds.
Figure 3.2.3.1.6
