Servo Drive Configuration E1 Series Servo Drive Thunder Software Operation Manual
4-34 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012

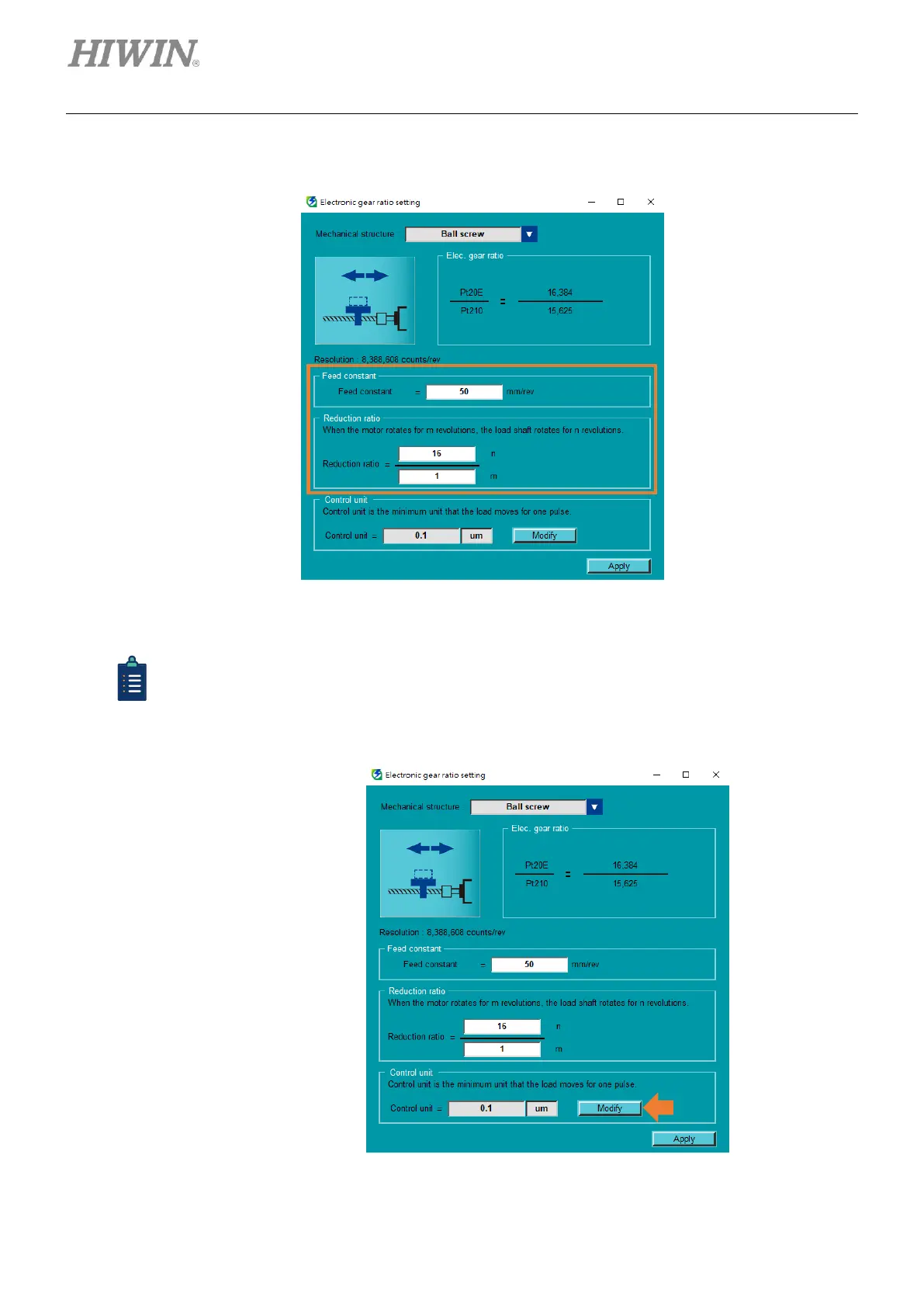

2. Key in feed constant and reduction ratio.
Figure 4.3.6.3.3
Information
(1) Refer to section 6.11 in “E1 Series Servo Drive User Manual” for the description of control
unit.
(2) To modify control unit, click Modify.
Figure 4.3.6.3.4
