E1 Series Servo Drive Thunder Software Operation Manual Servo Drive Configuration
HIWIN MIKROSYSTEM CORP. 4-35
MD12UE01-2012

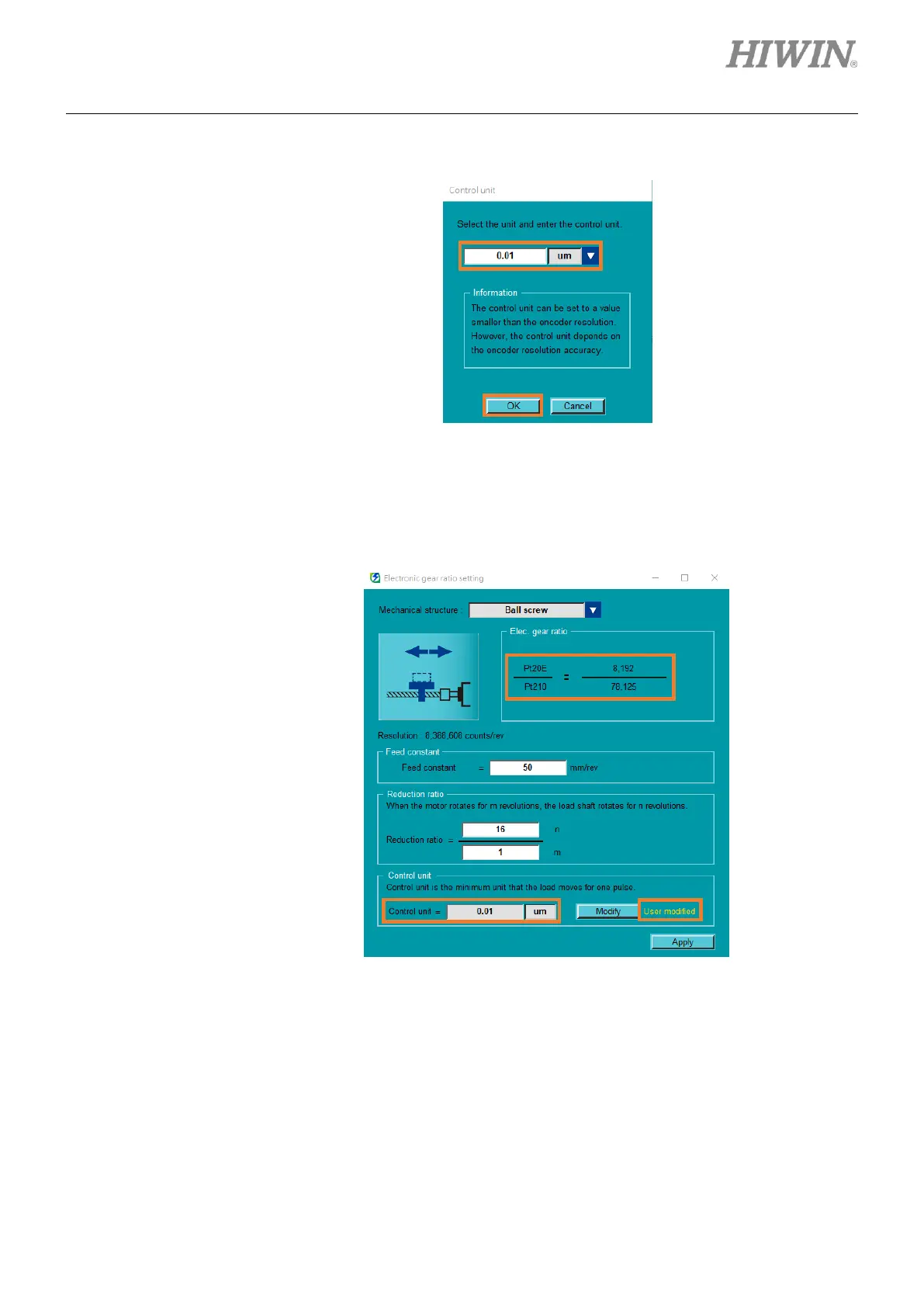

After selecting unit and keying in control unit, click OK.
Figure 4.3.6.3.5
When control unit is updated, electronic gear ratio will be recalculated, and the reminder
User modified will appear.
Figure 4.3.6.3.6
3. Confirm the calculated result of electronic gear ratio, and click Apply.
