Revision 8 SLG 700 SmartLine Level Transmitter User’s Manual Page 119
Echo Stem Plot
<Return>
Duration
0 to 3600
sec
Duration of echo stem plot
Show Stem Plot
Displays the echo stem plot for the selected Duration. Use this
display to check that the radar pulse is measuring accurately.

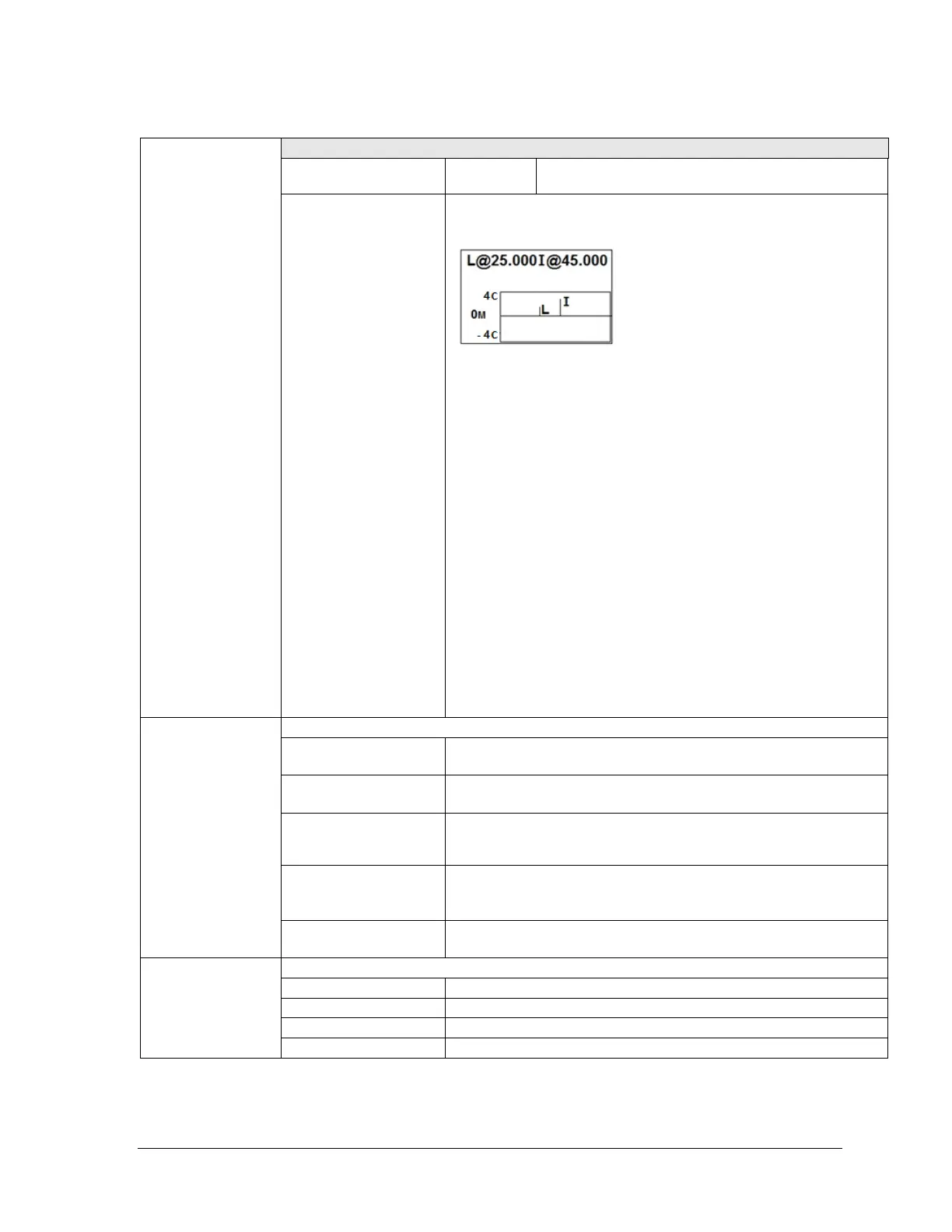

Example: Echo stem plot for 2 liquid interface:
X axis: The Reference plane is at 0. Distance is in Length Unit.
The above image the distance is measured in meters.
Resolution: 1 pixel = 1 meter (as in the above image)
Y axis: Echo amplitude is in terms of counts. The Range is -40,000
t0 +40,000 which is represented as -4C to +4C.
Where:
C = Counts
S = Distance to saturated steam reference
L = Distance to product
I = Distance to interface
E = Distance to end of probe
Resolution: 1 pixel = 2000 counts
Display Error Handling:
“-----“: In the distance field indicates the respective distance
(product or interface) status is Bad.
“?????”: In the distance field indicates the respective distance
(product or interface) status is Unknown.
In the above example, the distances measured by the echo are:
Product: 25 m,
Interface (bottom liquid): 45 m
The display updates periodically.
Model Number
<Return>
Model Number (R)
(no mismatch only)
First 16 characters of device Model Number.
Comm Model Num (R)
(mismatch only)
First 16 characters of device Model Number in Comm Module.
Sensor Model Num
(R)
(no mismatch only)
First 16 characters of device Model Number in Sensor Module.
Matching Source
(mismatch only)
Source of Model Number to match.
Sensor Module
Comm Module
Do Match
(mismatch only)
Perform the Model Number match.
Options
<Return>
Interface Meas (R)
Interface Measurement option
Saturated Steam (R)
Saturated Steam application option
Low DC Applic (R)
Low Dielectric Constant application option
License Key
Enter license key
(R) Read-Only parameter
