Analog Power Sweep
Range:
-20
dBm
to maximum available power, can be offset using
step attenuator.
External Leveling
Range
At External HP
33330D/E
Detector: -36 to
+4
dBm
At External Leveling Input: -200 PV to -0.5 volts
Source Match

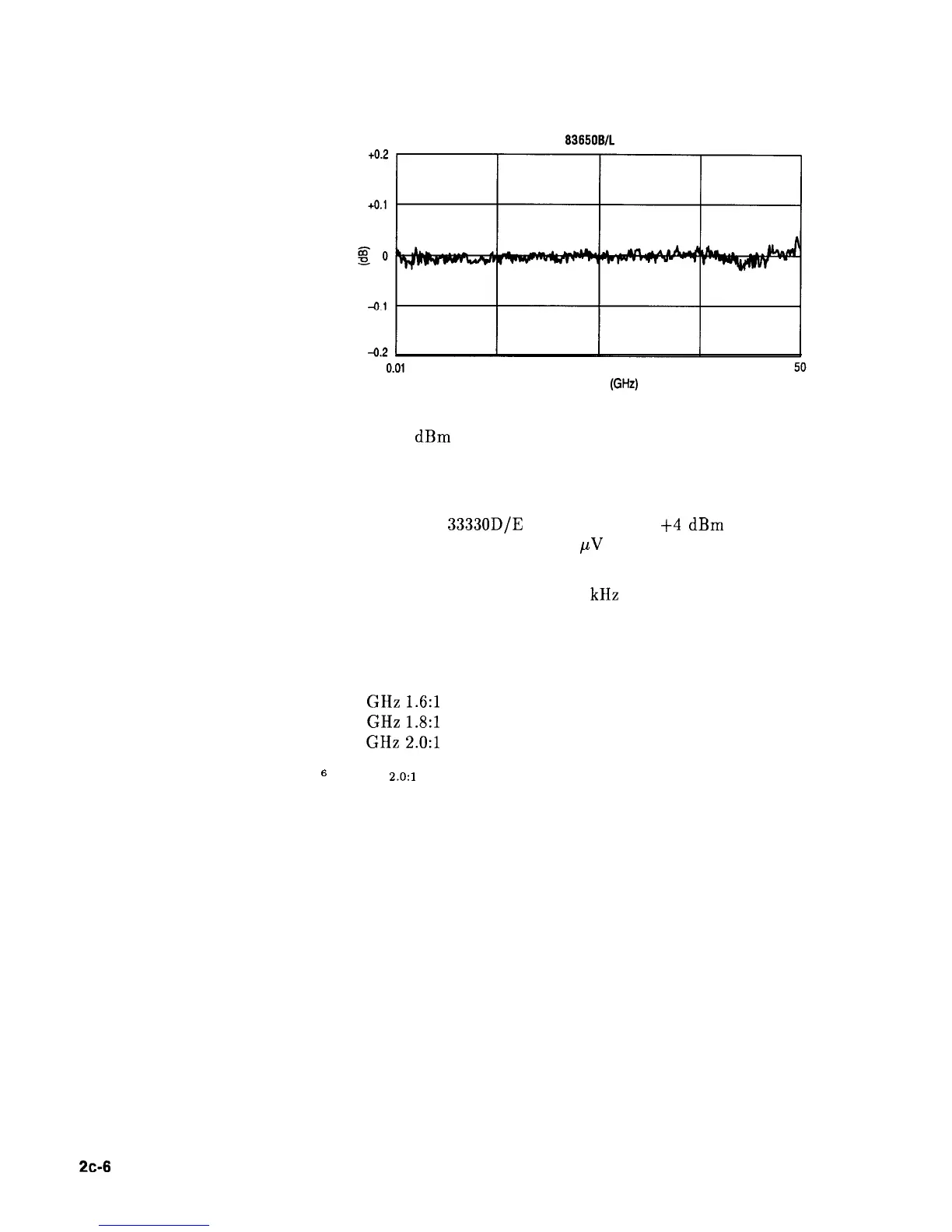

Typical HP 836508/L Power Flatness
26.5
Frequency
(GHz)
Bandwidth
External Detector Mode: 10 or 100 kHz (sweep speed and
modulation mode dependent), nominal
Power Meter Mode: 0.7 Hz, nominal
(internally leveled), typical
6
< 20 GHz
1.6:1
SWR
< 40 GHz
1.8:1
SWR
< 50 GHz
2.0:1
SWR
6
Typically 2.0:1 SWR at frequencies below 50 MHz.
2c-6
Specifications
