Creating a User Flatness Array Automatically, Example 1
In this example, a flatness array containing correction frequencies
from 4 to 10 GHz at 1
GHz
intervals is created. An HP 438B power
meter controlled by the swept CW generator through the interface
bus
For
1.
2.
3.
4.
5.
is used to enter the correction data into the flatness array.
this example, refer to menu map 5, POWER.
The equipment setup shown in Figure 1-18 assumes that if the
setup has an external leveling configuration, the steps necessary
to correctly level have been followed. If you have questions about
external leveling, refer to “Externally Leveling the Swept CW
Generator”.
Set up Power Meter
Zero and calibrate the power meter/sensor.
Enter the appropriate power sensor calibration factors into the
power meter.
Enable the power meter/sensor cal factor array. For operating
information on the HP 437B power, refer to its operating and
service manual.
Connect the power sensor to the point where corrected power is
desired.
HP-IE
I RND OTHER I
B-B
J
DEVICES ,
L
-I--
J
1
FLATNESS
I CORRECTED
, OUTPUT PORT
“q-p!--------A
------
POUEMEt&OR
J
HP 4378
POUER NE
I
I
DEVICE
UNDER
TEST

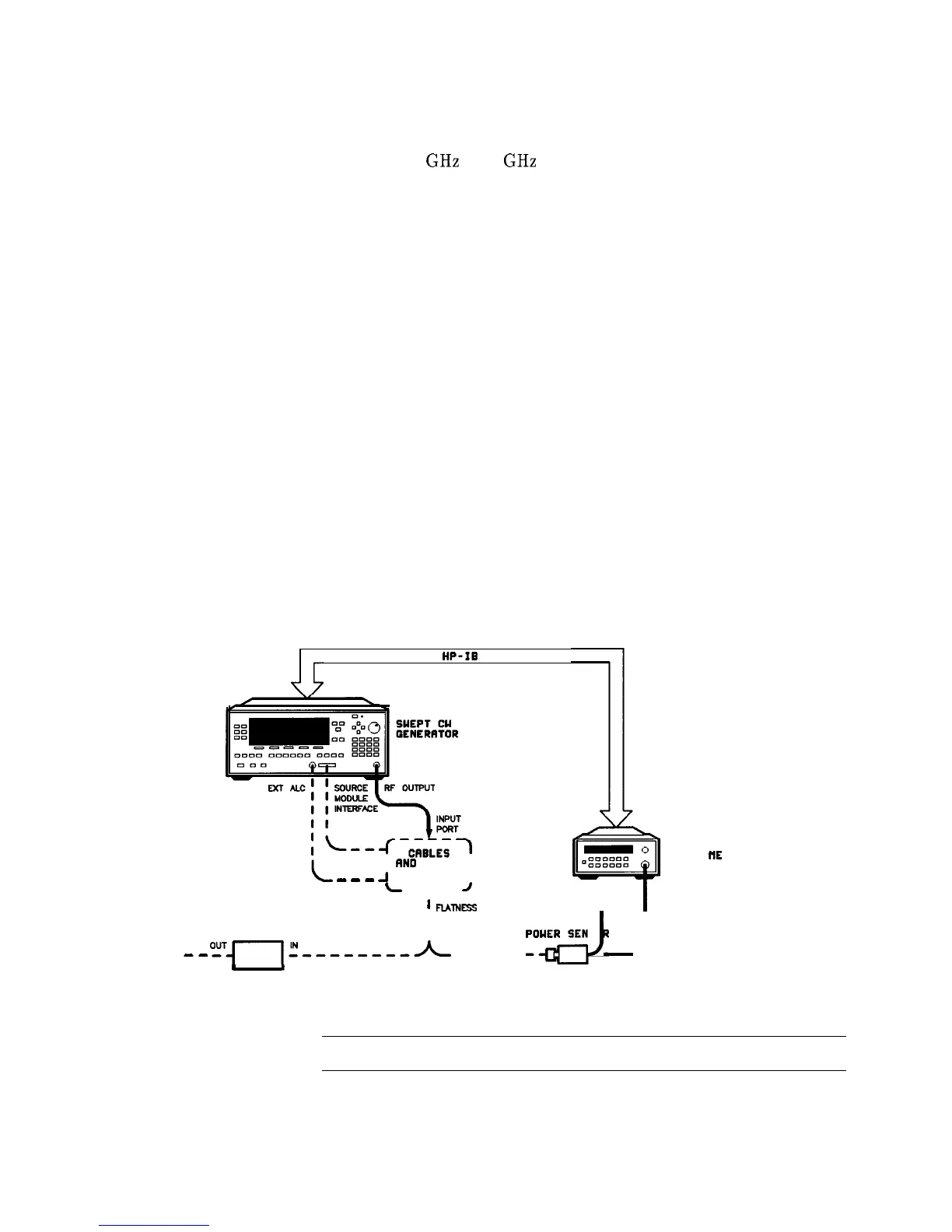

Figure l-18. Creating a User Flatness Array Automatically
TER
Note
No other devices can be connected to the HP-IB cable.
