6. Refer to Figure 3-4. Remove the inner slide assemblies from the
outer slide assemblies.
7. To secure the side covers in place, mount the inner slide assemblies
to the instrument with the screws provided.
8. With the appropriate hardware, install the outer slide assemblies
to the system enclosure.
9. Lift the swept CW generator into position. Align the inner and
outer slide assemblies and slide the instrument into the rack.
Realign the hardware as needed for smooth operation.
SYSTEMS ENCLOSURES

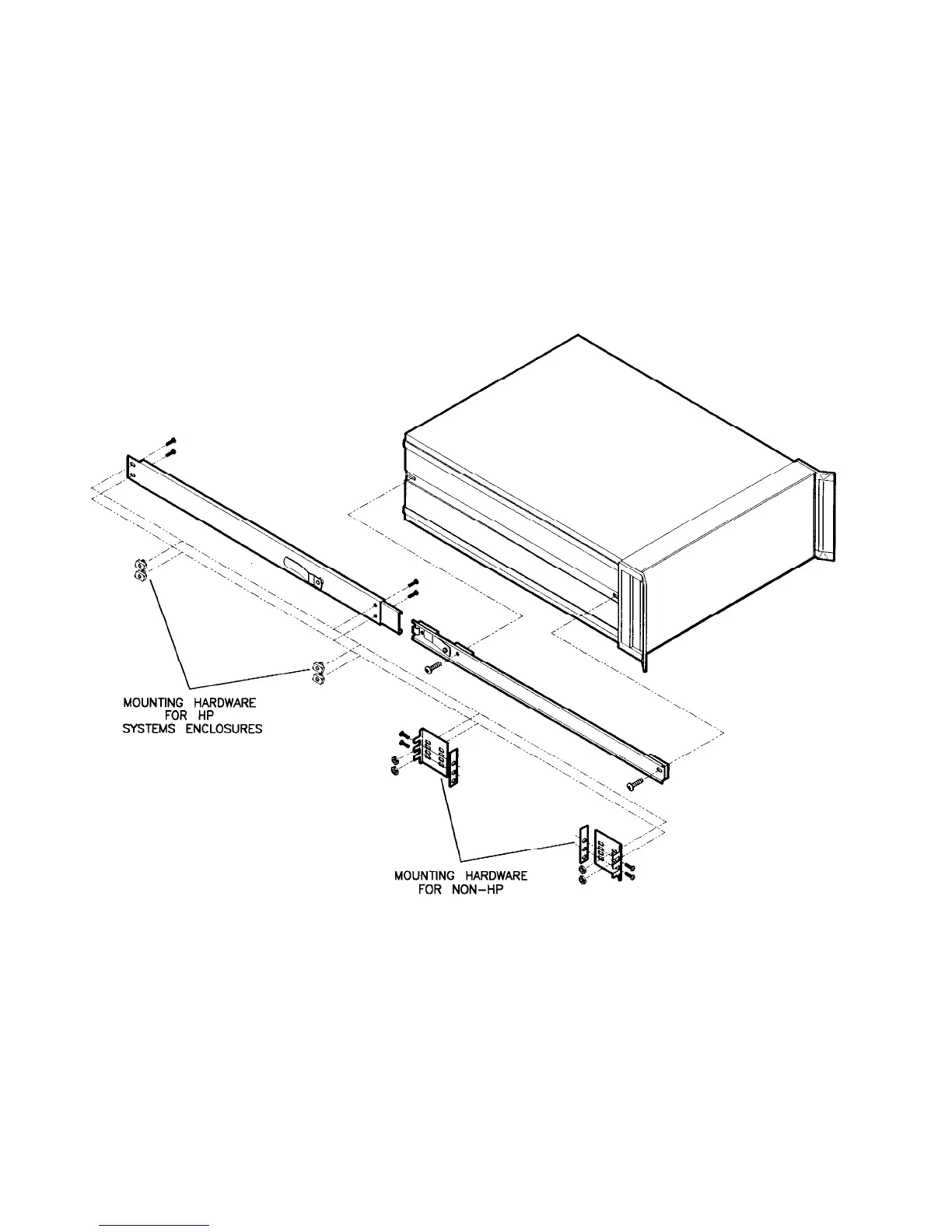

Figure 3-4. Chassis Slide Kit
3-12 Installation
