HP 8360 L Series - Installation Procedure; Rack Mount Flanges for Swept CW Generators with

@%
‘,
QP
Installation Procedure
1. Refer to Figure 3-5. Remove handle trim strips.
2. Remove the four screws on each side that attach the handles to
the instrument; remove the handles.
3. Using the screws provided, attach the rack mount flanges to the
swept CW generator.
4. Remove the bottom and back feet and the tilt stands before rack
mounting the instrument.
,..A
,..p
,.p
,p
3
Ill

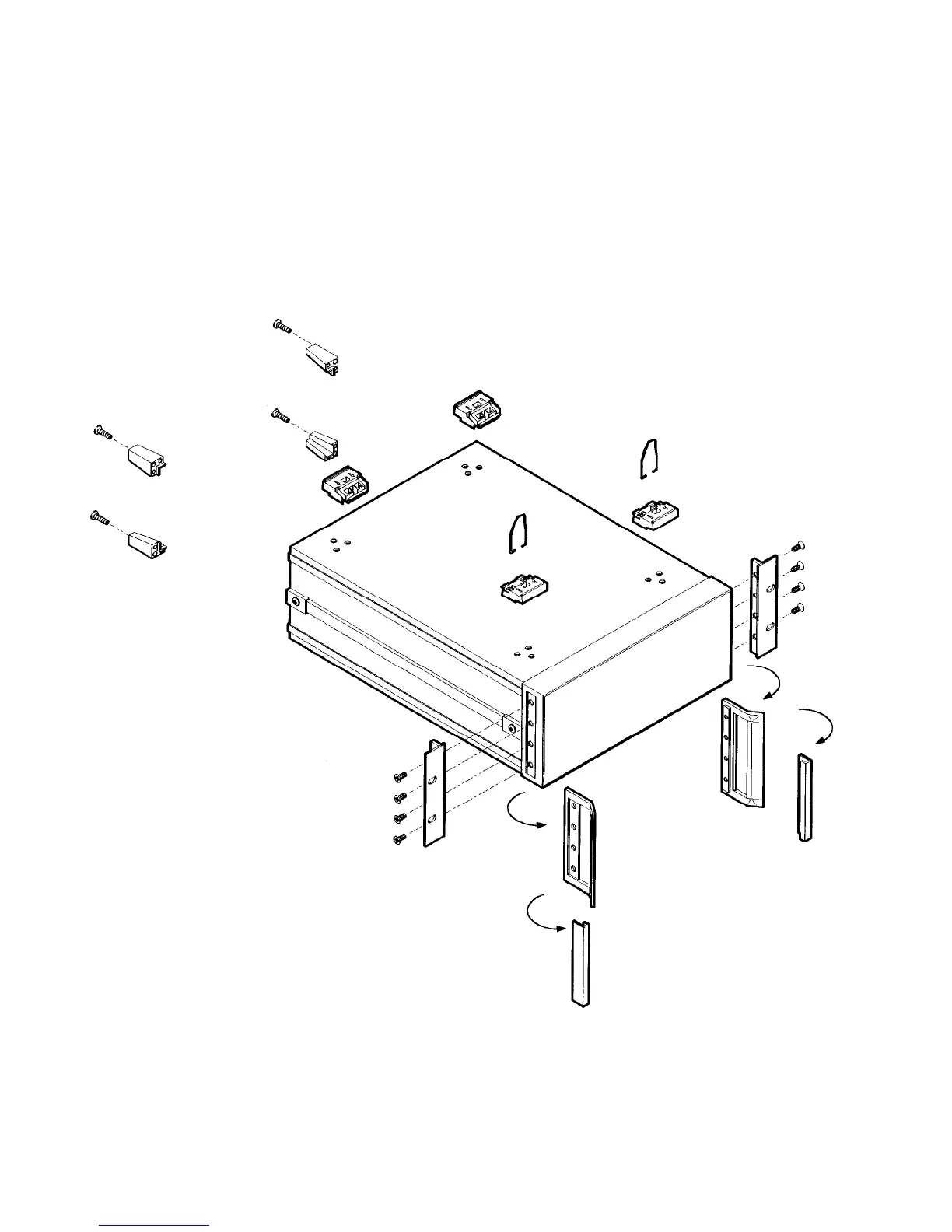

Figure 3-5. Rack Mount Flanges for Swept CW Generators with Handles Removed
3-14 Installation
