WEPT
CU
GENERRTOR
tlICROUAVE
AflPLIFIER
Ml-UAVE
SOURCE
LEVELED
OUTPUT

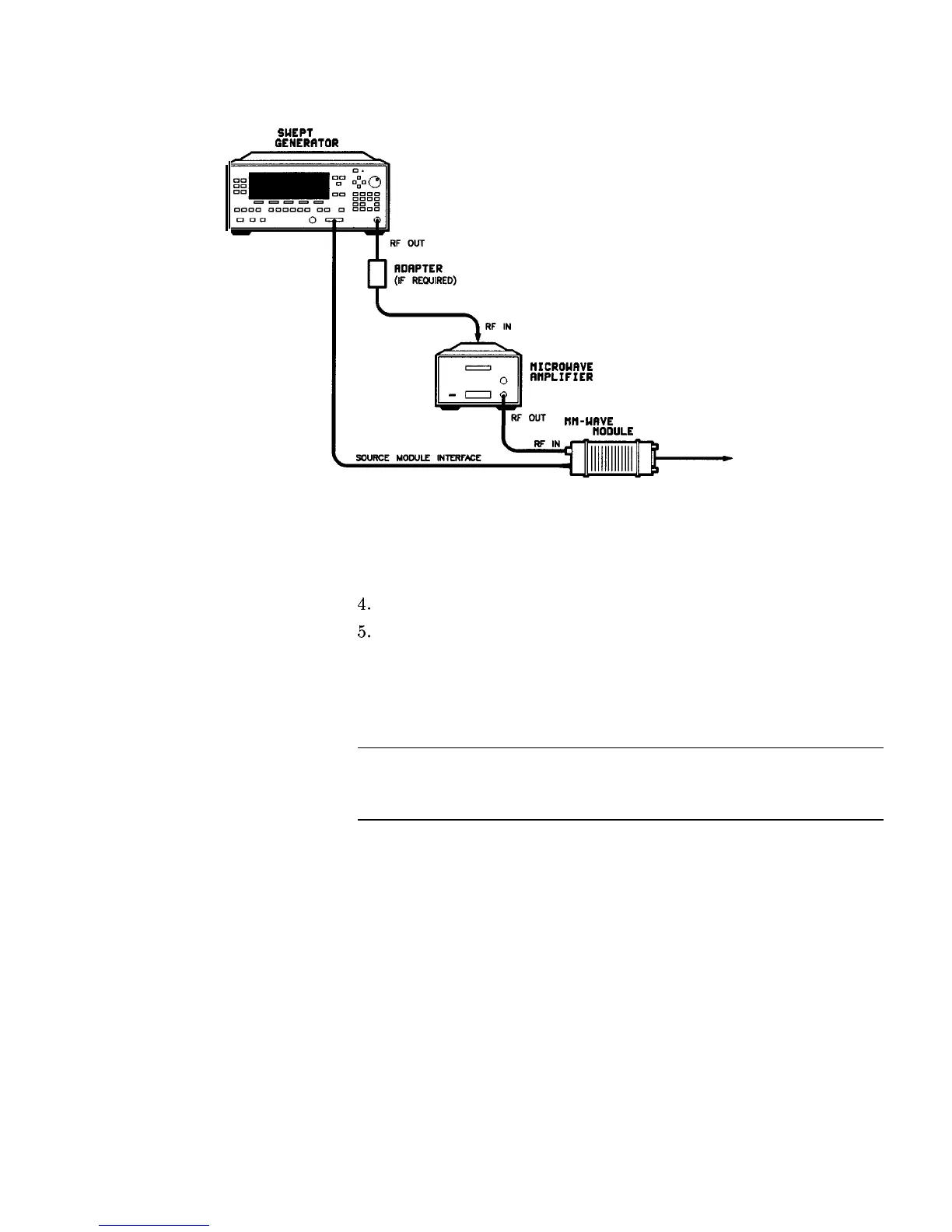

Figure 1-15. MM-wave Source Module Leveling Using a Microwave Amplifier
1. Set up the equipment as shown.
2. Refer to menu map 1.
3. Select Leveling Point Module.
4.
Select Module Menu.
5.
Select Module Select Auto or Front or Rear, depending on
where the interface connection is made.
All of the ALC data necessary to communicate properly with the
swept CW generator is exchanged via the SOURCE MODULE
INTERFACE.
Hint
To obtain flatness corrected power, refer to “Creating and Applying
the User Flatness Correction Array” in the “Optimizing Swept CW
Generator Performance” section.
Getting Started Advanced 1-29
