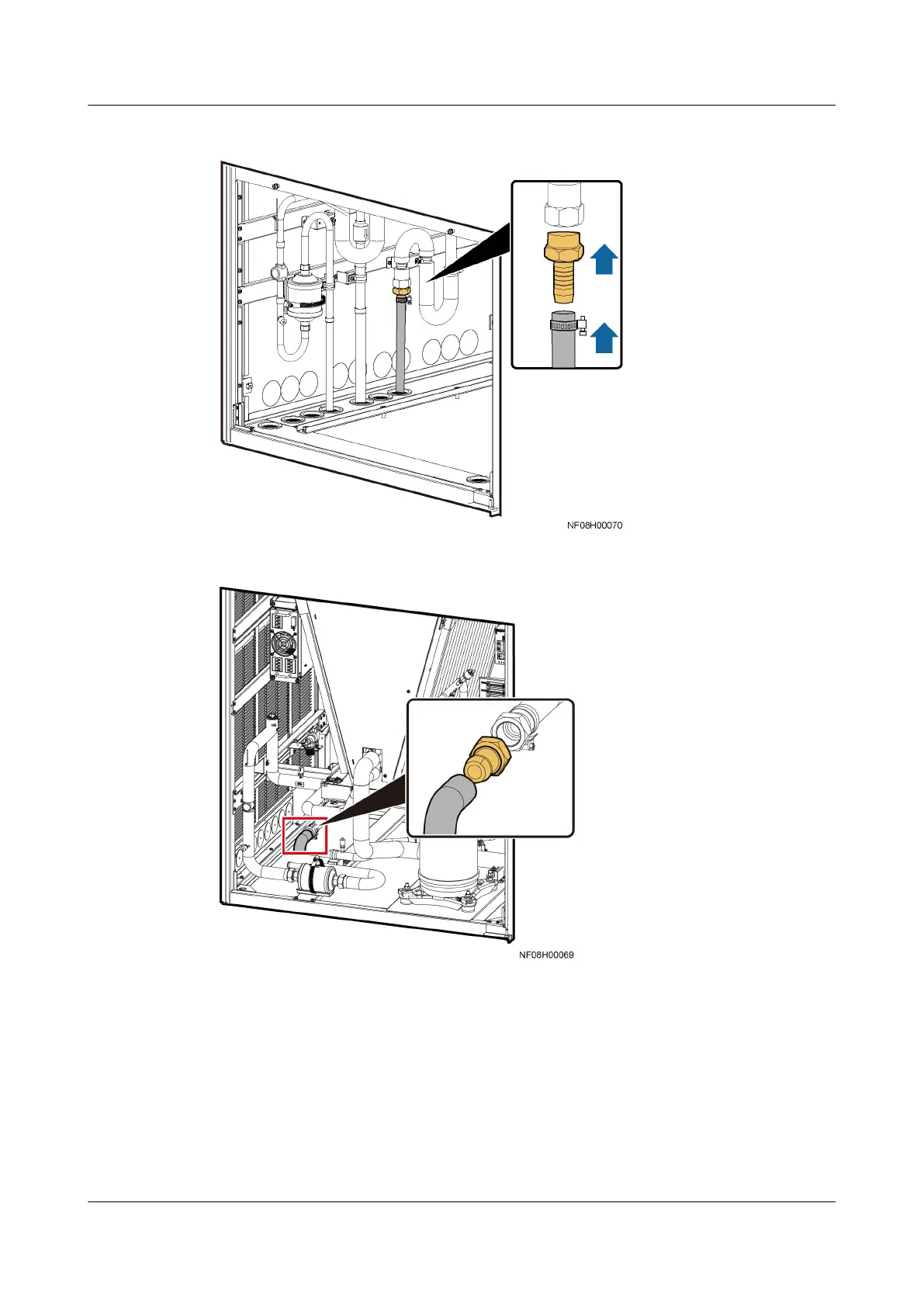

Figure 4-73 NetCol8000-A045/A055/A090 bottom pipe routing (downow)
Figure 4-74 NetCol8000-A045 bottom pipe routing (upow)
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
