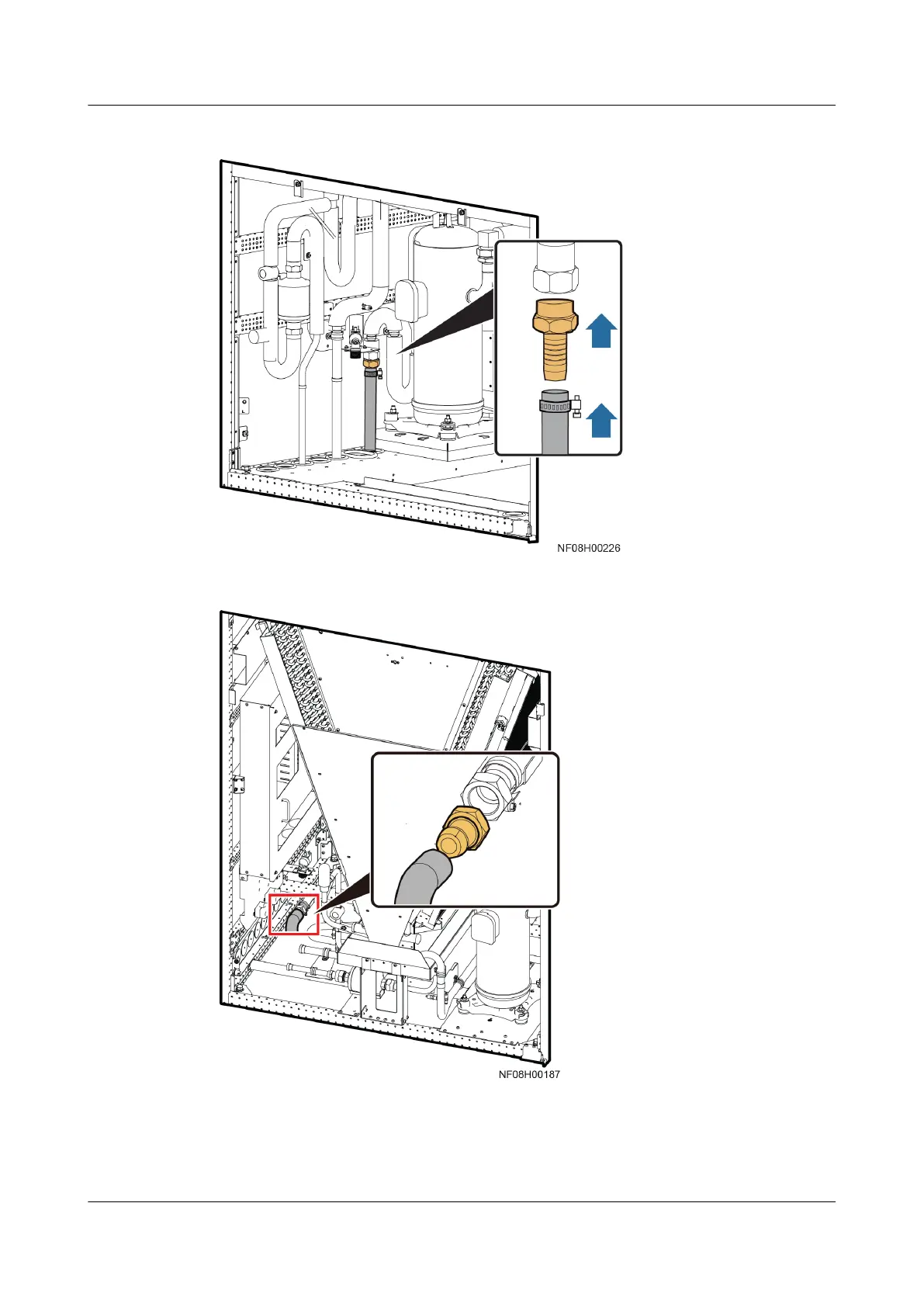

Figure 4-75 NetCol8000-A060/A120 bottom pipe routing (downow)
Figure 4-76 NetCol8000-A060 bottom pipe routing (upow)
Step 2 (Applicable to downow units) Cut a cross in the rubber ring using a utility knife
and route the pipe wrapped with the thermal insulation tube through the hole.
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 113
