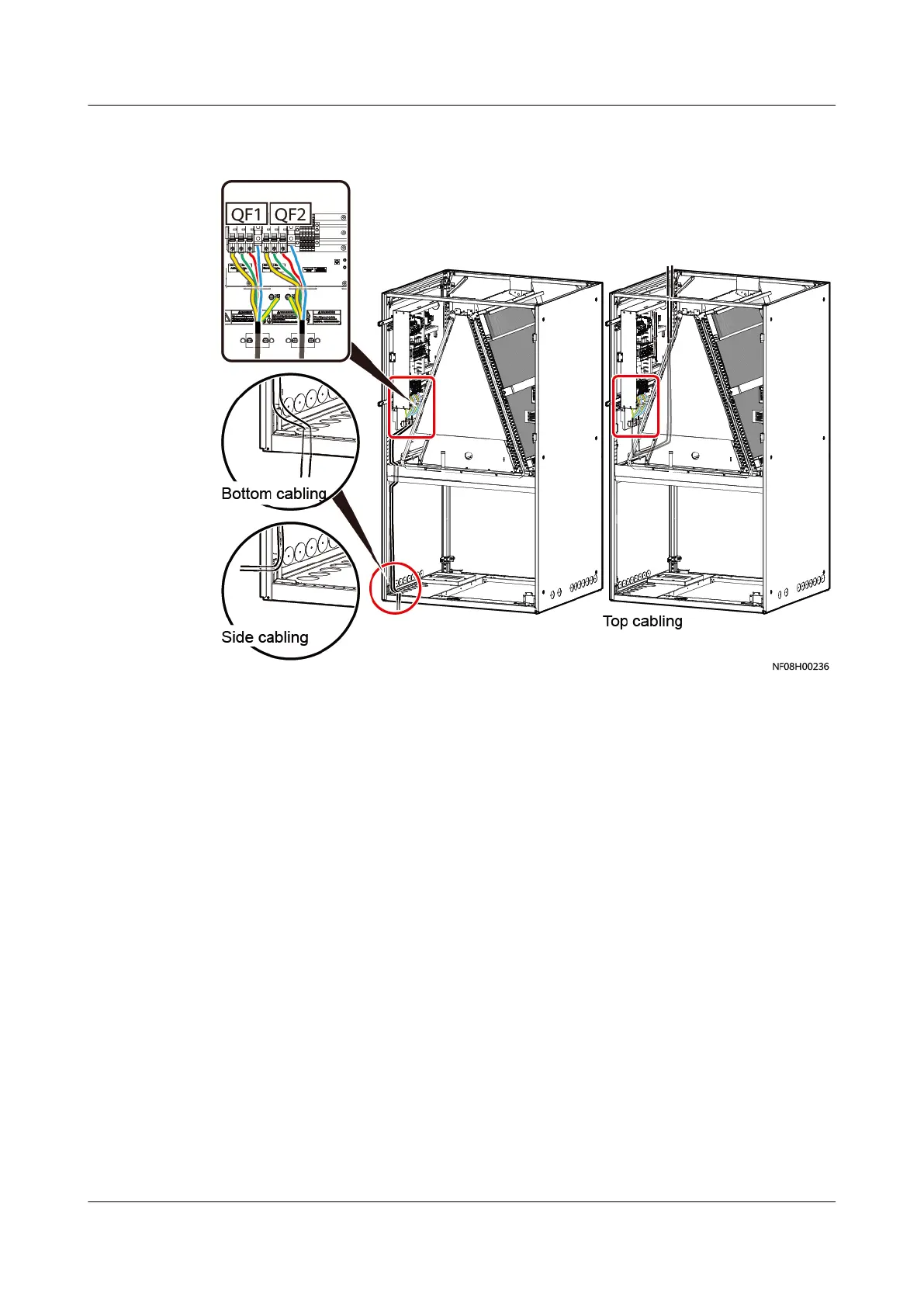

Figure 4-91 Routing power cables for the NetCol8000-A060/A120 with dual
power supplies (downow)
Step 3 Secure the cables on the post of the cabinet with cable ties.
----End
Connecting the Outdoor Unit Power Cable
Step 1 Connect the outdoor unit power cable.
● Connect one end of the outdoor unit power cable to the U/V/W/PE bar of the
NetCol500-A air-cooled outdoor unit, and the other end to the U/V/W/PE port
on the indoor unit wiring terminal.
● Connect one end of the power cable for the NetCol500-W water-cooled
module to the L/N terminal on the water-cooled module, and the other end
to the L/N terminal on the indoor unit.
