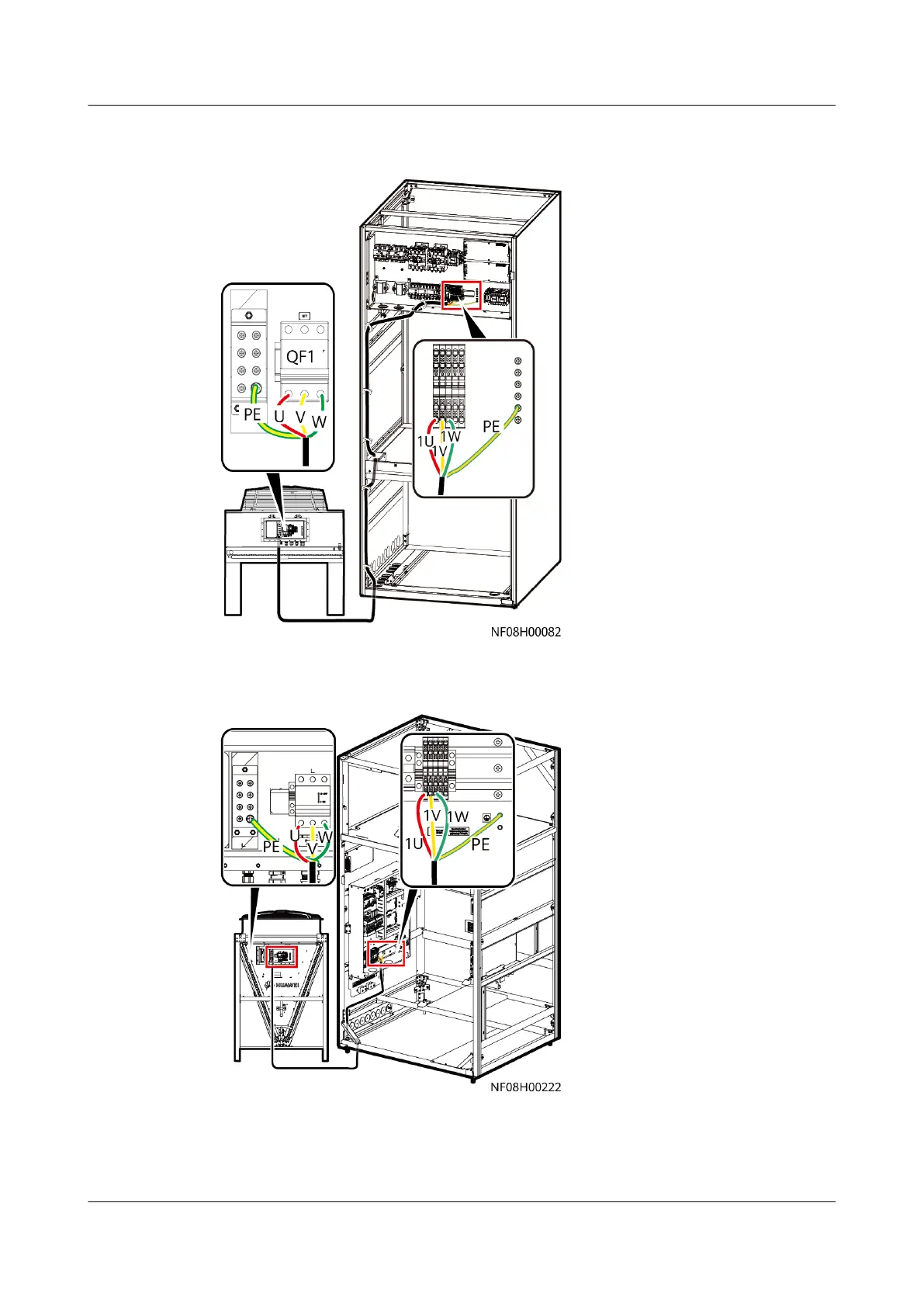

Figure 4-92 Connecting the power cable to an air-cooled outdoor unit 1 (using
indoor unit NetCol8000-A045D and outdoor unit NetCol500-A060 as examples)
Figure 4-93 Connecting the power cable to an air-cooled outdoor unit 2 (using
indoor unit NetCol8000-A060U and outdoor unit NetCol500-A110 as examples)
