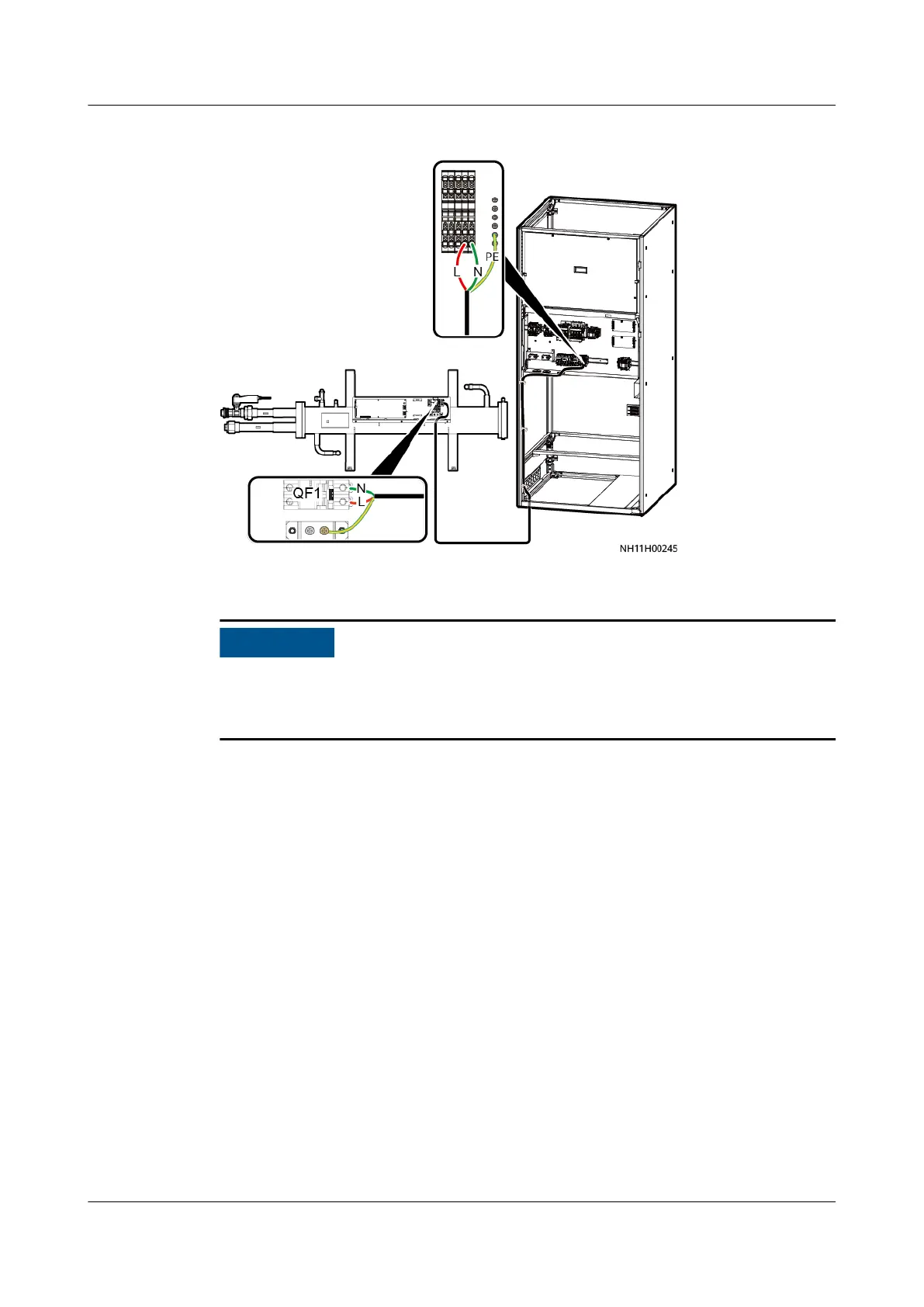

Figure 4-94 Connecting the power cable to the water-cooled module
Step 2 Secure the cables on the post of the cabinet with cable ties.
In a shielded equipment room, a lter must be installed between the indoor unit
and the air-cooled outdoor unit. D Power Cable Filter for an Outdoor Unit lists
the recommended lter specications.
----End
(Optional) Connecting the Power Cable for a Low-Temperature Component
Step 1 Connect the cable delivered with the low temperature component to the L/N
terminal on the QF2 of the outdoor unit.
