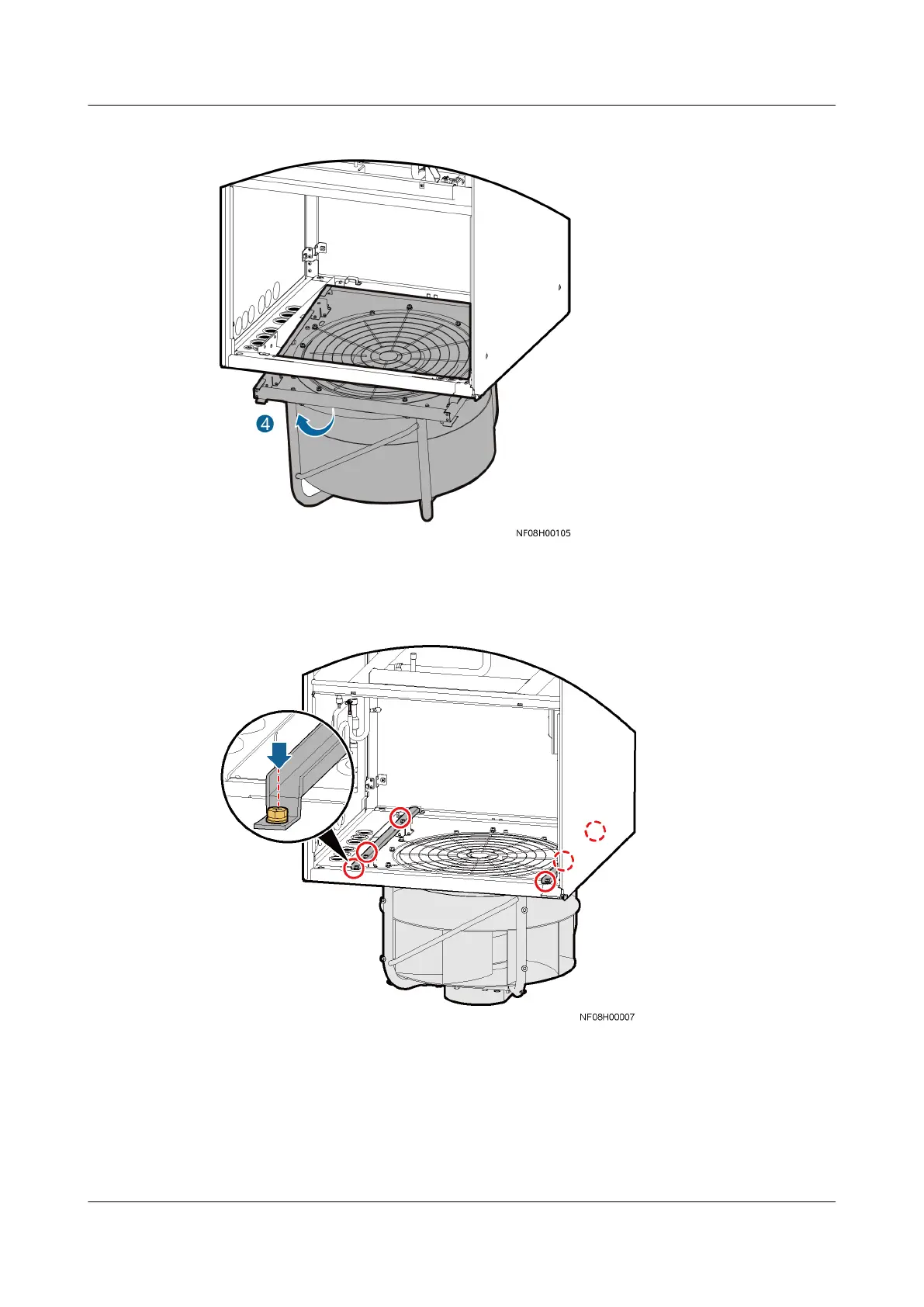

Figure 4-120 Turning a fan to 150 degrees
Step 5 Use a torque wrench to secure the two beams, and interconnect the fan cables
using the interconnection terminal reserved in the cabinet.
Figure 4-121 Securing the fan beams
----End
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 149
