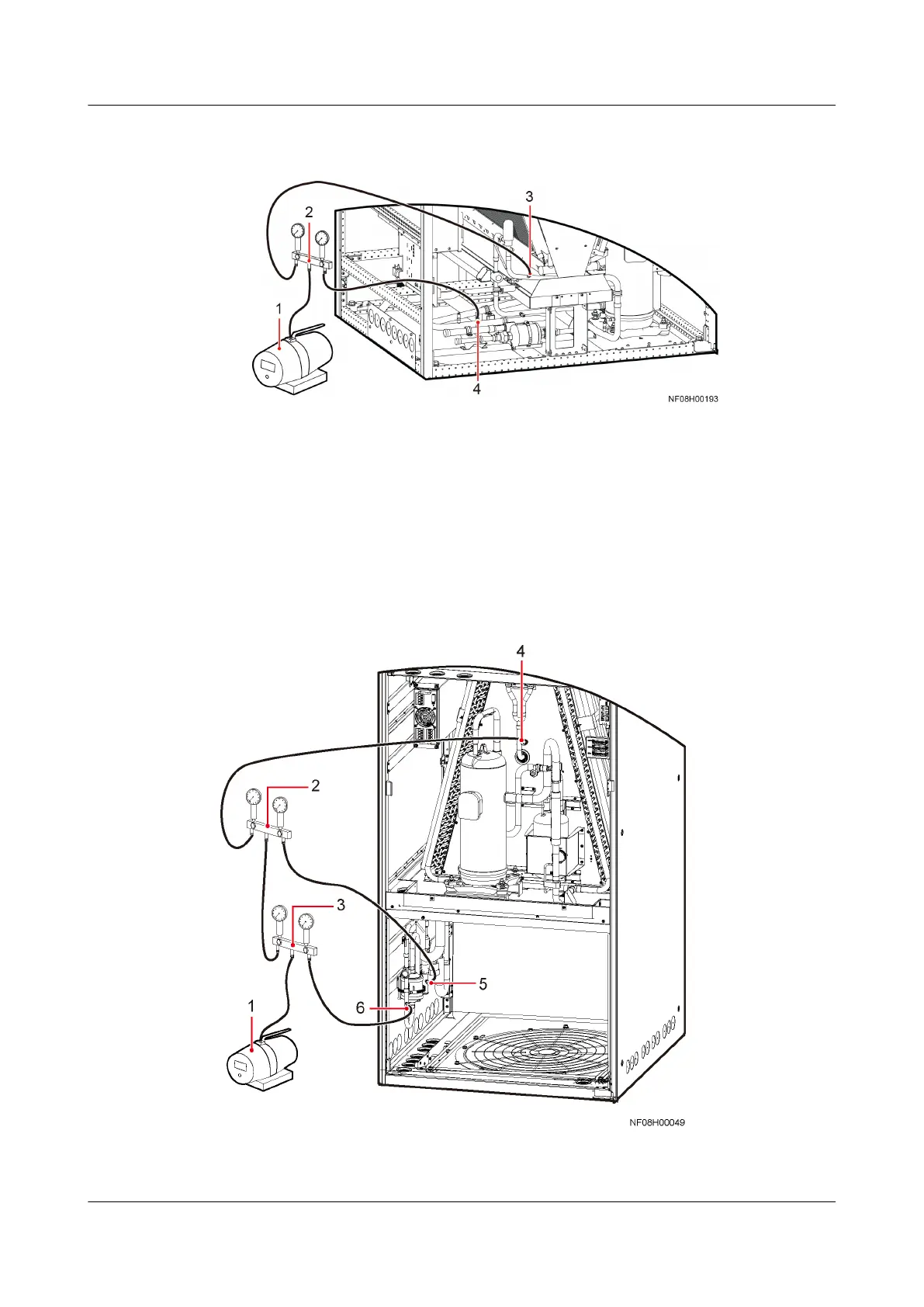

Figure 6-4 NetCol8000-A060 vacuumizing the system without a low-
temperature component (upow)
(1) Vacuum pump (2) Pressure gauge
(3) Low-pressure needle valve (4) Exhaust pipe needle valve
● If a low-temperature component is installed on the outdoor side, connect the
pressure gauge and vacuum pump at the low-pressure, exhaust pipe, and
liquid pipe needle valves to vacuumize the system simultaneously, as shown
in Figure 6-5.
Figure 6-5 NetCol8000-A045/A055/A090 vacuumizing the system with a low-
temperature component
(downow)
(1) Vacuum pump
(2) Pressure gauge 1 (3) Pressure gauge 2
